SECTION 1 – ENGINE SYSTEMS
Engine Component Locations (cont.)
COMPONENT LOCATION - INTAKE SIDE

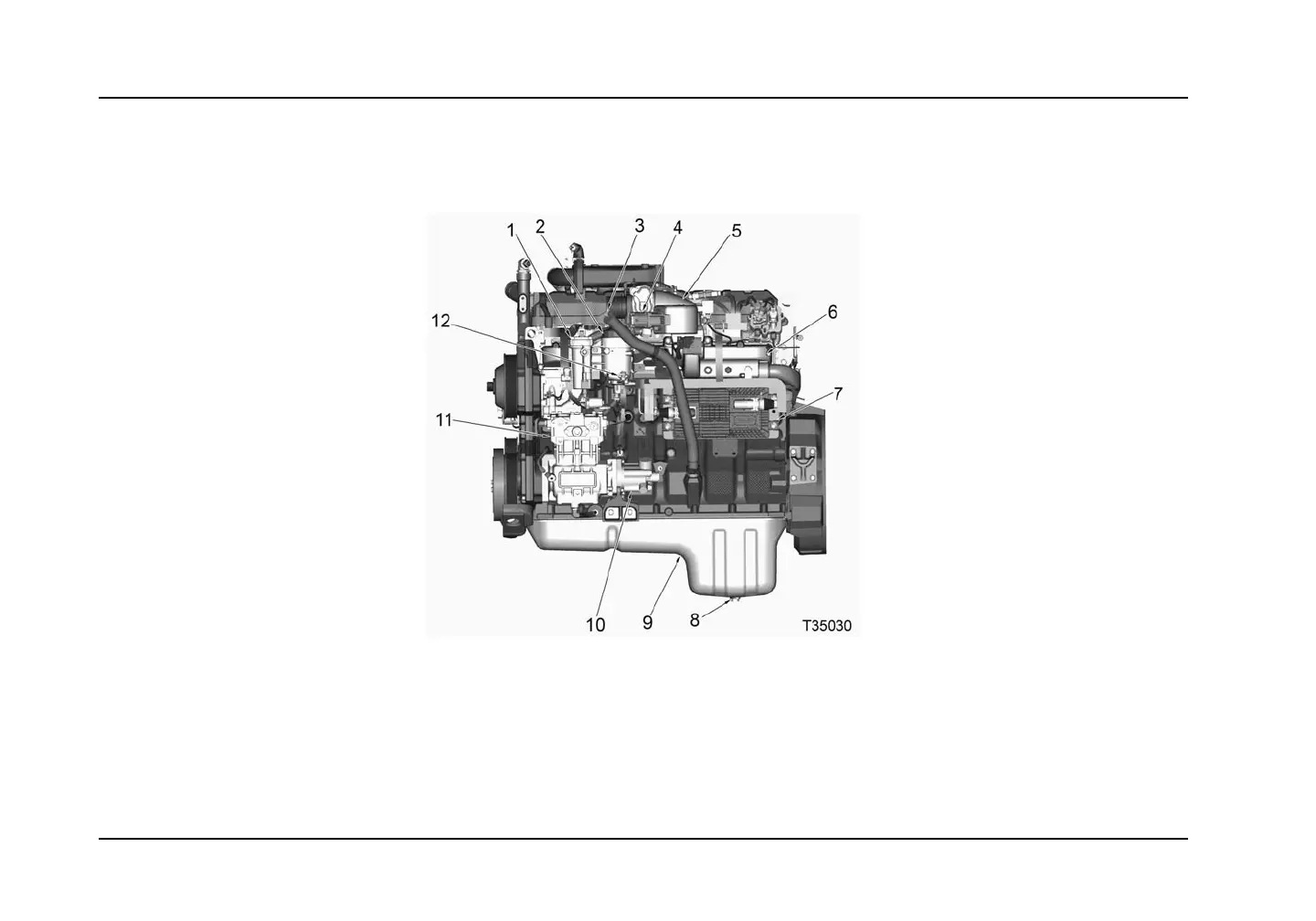

Figure 5 Intake side
1. Electric fuel pump (fuel strainer location)
2. Fuel filter assembly
3. Oil level gauge
4. Exhaust Gas Recirculation (EGR) valve
5. Air and EGR mixer duct
6. Intake manifold
7. Engine Control M odule (ECM)
8. Oil pan drain plug
9. Oil Pan
10. P owe r steering pump
11. Air compressor assembly
12. Water drain valve
Form No. 1172040R1
Page 26
