SECTION 3 – INSTRUMENTS, INDICATORS, AND S WITC HES
Oil Pressure Gauge

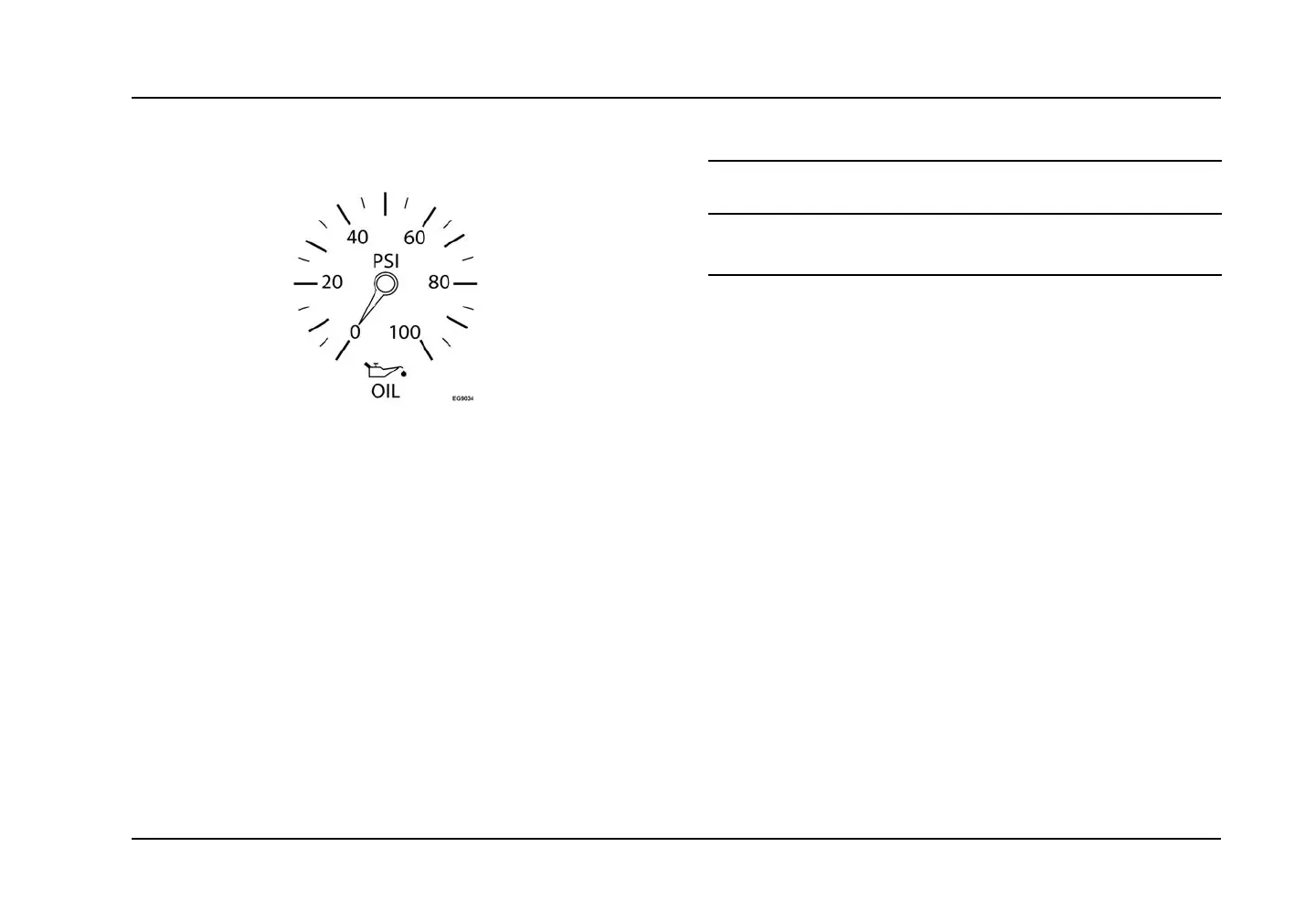

Figure 20 Oil pressure gauge
The engine oil pressure gauge indicates operating oil pressure.
The engine oil pressure indicator lamp and alarm will be
activated when oil pressure falls below acceptable levels.
Shutdown t he engine im mediately if the lamp and alarm are
activated. Contact an authorized service provider immediately
to have the problem corrected.
Lubrication Oil Pressure
Lube Oil Pressure
At normal operatin g temperature
Low idle 214 kPa (31 psi) min.
High idle 276 kPa (40 psi)
CAUTION: To prevent engine damage, shut down engine
immediately if the gauge fluctuates or drops below 276 kPa (40
psi) under load. Correct the problem.
Form No. 1172040R1
Printed in the United States of America Page 43
