1-24 Product Overview
Integrated I/O

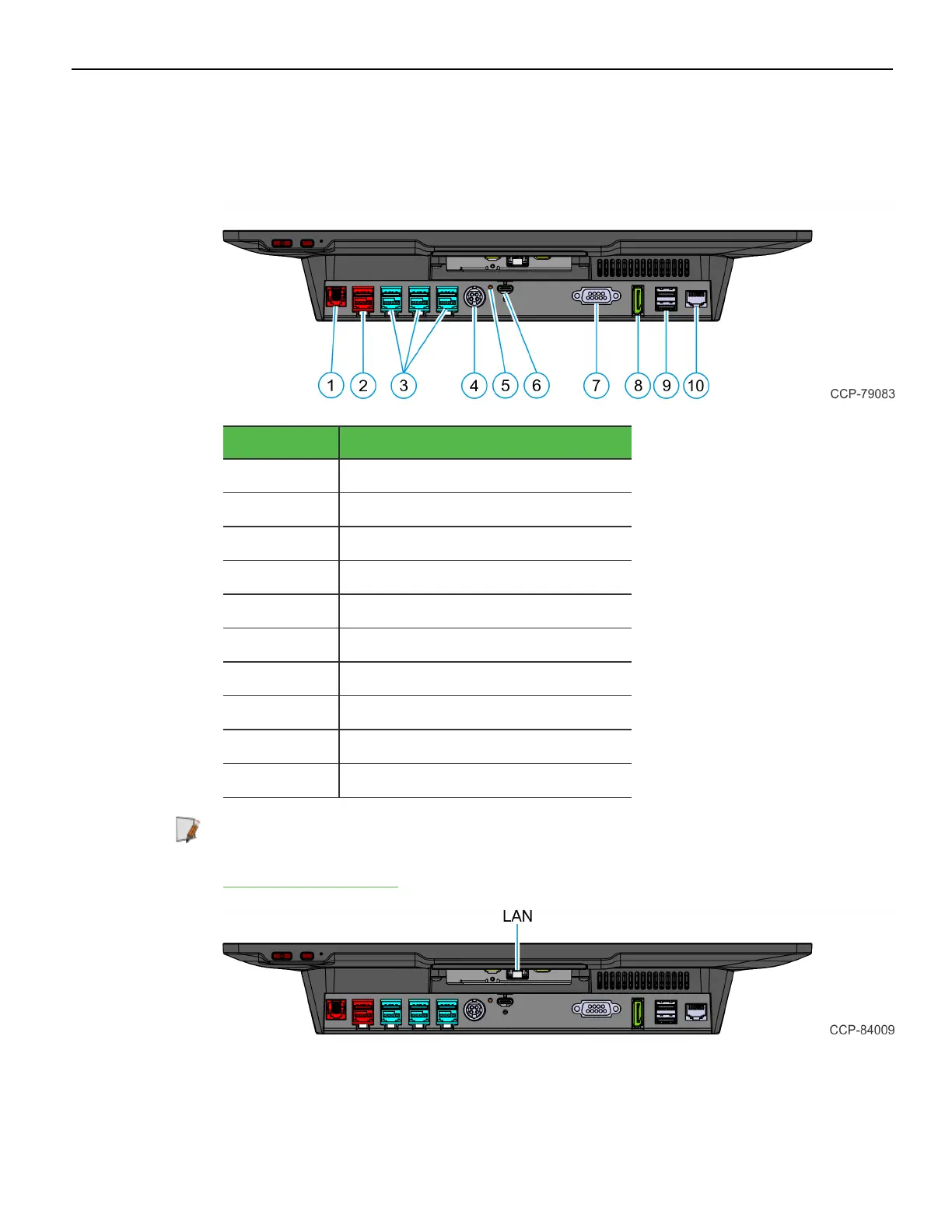

The following are the default I/O ports for the NCR CX5 All-in-One POS (7773) with
Integrated USBCentric I/O(Retail).
Callout Port Name
1 Cash Drawer
2 USB24V
3 USB12V
4 24V Power In
5 Status LED
6 USB-C
7 DB9 Serial (Standard UART)
8 DisplayPort
9 Dual USB 3.0
10 RJ50 Serial (Enhanced UART)
Note: The Integrated USBCentric I/O(Retail) does not include a LANPort.
ALANPort is available on the Motherboard. To connect to a network, refer to
Connecting to a Network on page56.
