Hardware
Installation
2-71
Installing
the
Transaction
Printer
Warning:
Do
not
hot
plug
the
printer
wh
en
connectin
g
the
POS
terminal.
Always
power
down
the
POS
prior
to
connecting
the
printer
to
prevent
damage
to
the
POS
and/or
printer
.

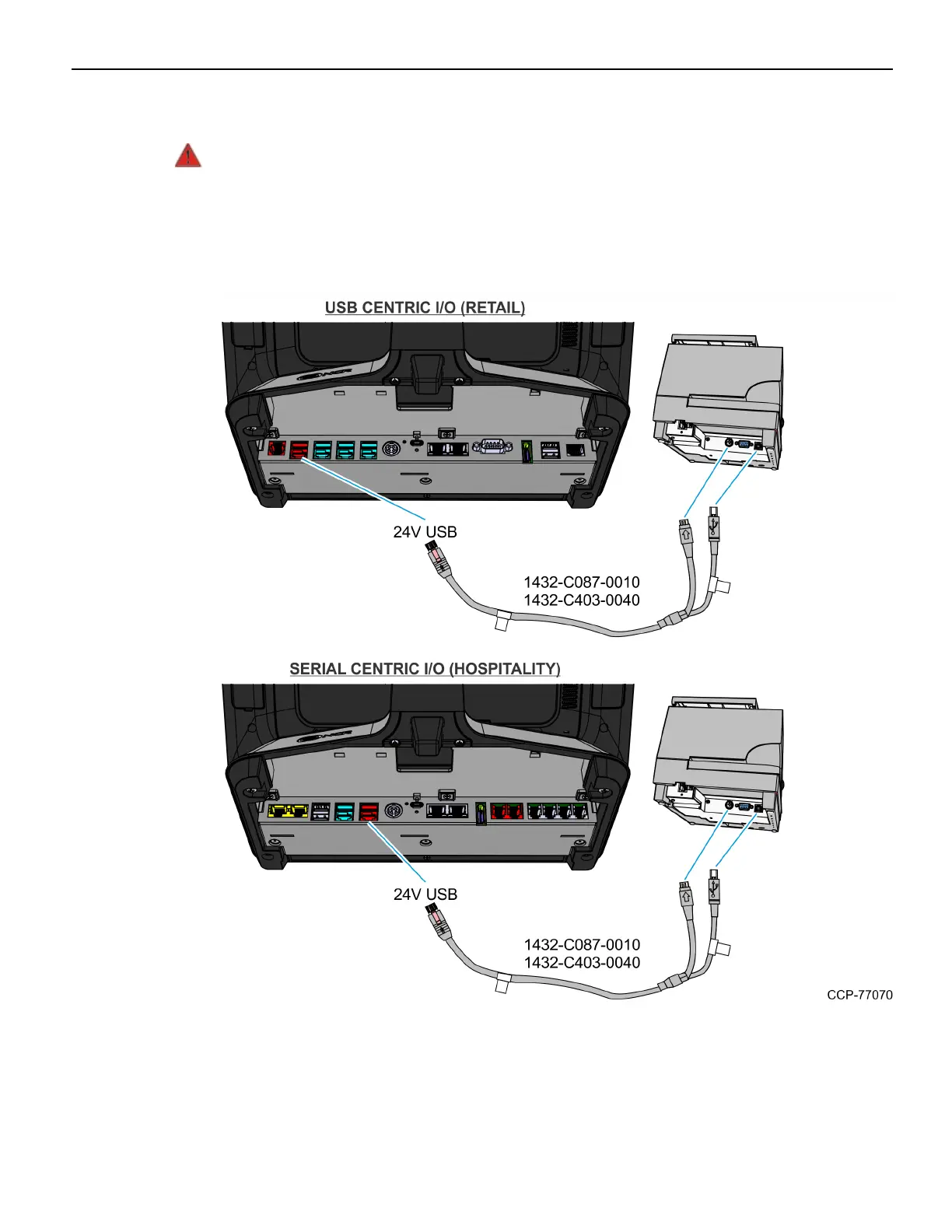

Connect
the
Powered
USB
Printer
Interface
Cable
to
the
USB
Connector
and
Power
Connector
on
the
printer
and
to
the
24V
Powered
USB
Connector
on
the
Base.
84
