Wall-Mounting the Charger
To wall-mount the charger (Figure 10: Wall-Mounting the Charger):
1. Choose a suitable location for the charger wall-mount bracket within 6 feet of an AC outlet.
2. Install suitable fasteners 1 3/16” apart, leaving the heads out about 1/4”.
3. Run the AC adaptor cord through the notch in the bottom of the wall-mount bracket and up
through the rectangular cutout in the bracket.
4. Place the wall-mount bracket on the fasteners and tighten.
5. Run the AC adaptor cord through the strain relief on the back of the charger, then plug the
cord into the charger.
6. Snap the charger onto the wall-mount bracket.
7. Plug the AC adaptor into the AC outlet.

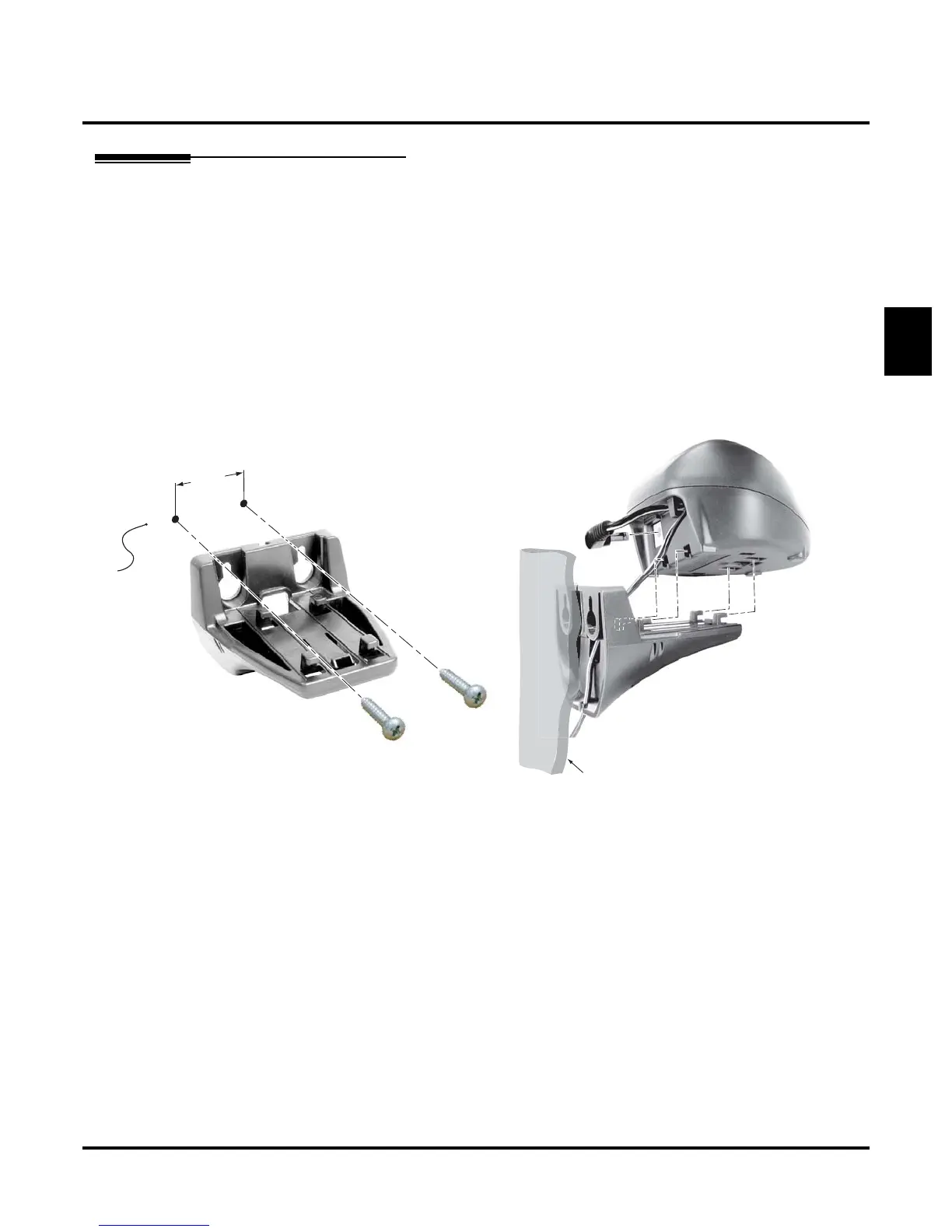

Figure 10: Wall-Mounting the Charger
80683 - 13
1-3/16"
Wall
80683 - 11
Wall
To Next Page
