Issue 3 Electra Elite
2 - 12 End-User PC Programming
Edit
The Edit pulldown menu allows files to be edited, swapped, defaulted, o
copied.
Undo
Allows the user to undo current edits and return to the previous editing
operation.
Copy
Brings up the copy screen. This allows port information to be copied from
one port to another.
Swap
Allows values
between
two ports to be swapped.
Set Default
Defaults to the current field where the cursor is positioned.
Set Default All
Allows the user to set all values to default on the open tab.
Quick Search
Allows the user to search the Memory Blocks by Memory Block Number,
Memory Block Name, or Tab Name. After the search method is specified,
a list is provided. The user can scroll through the list and click on the
desired Memory Block. System data can then be modified as necessary.

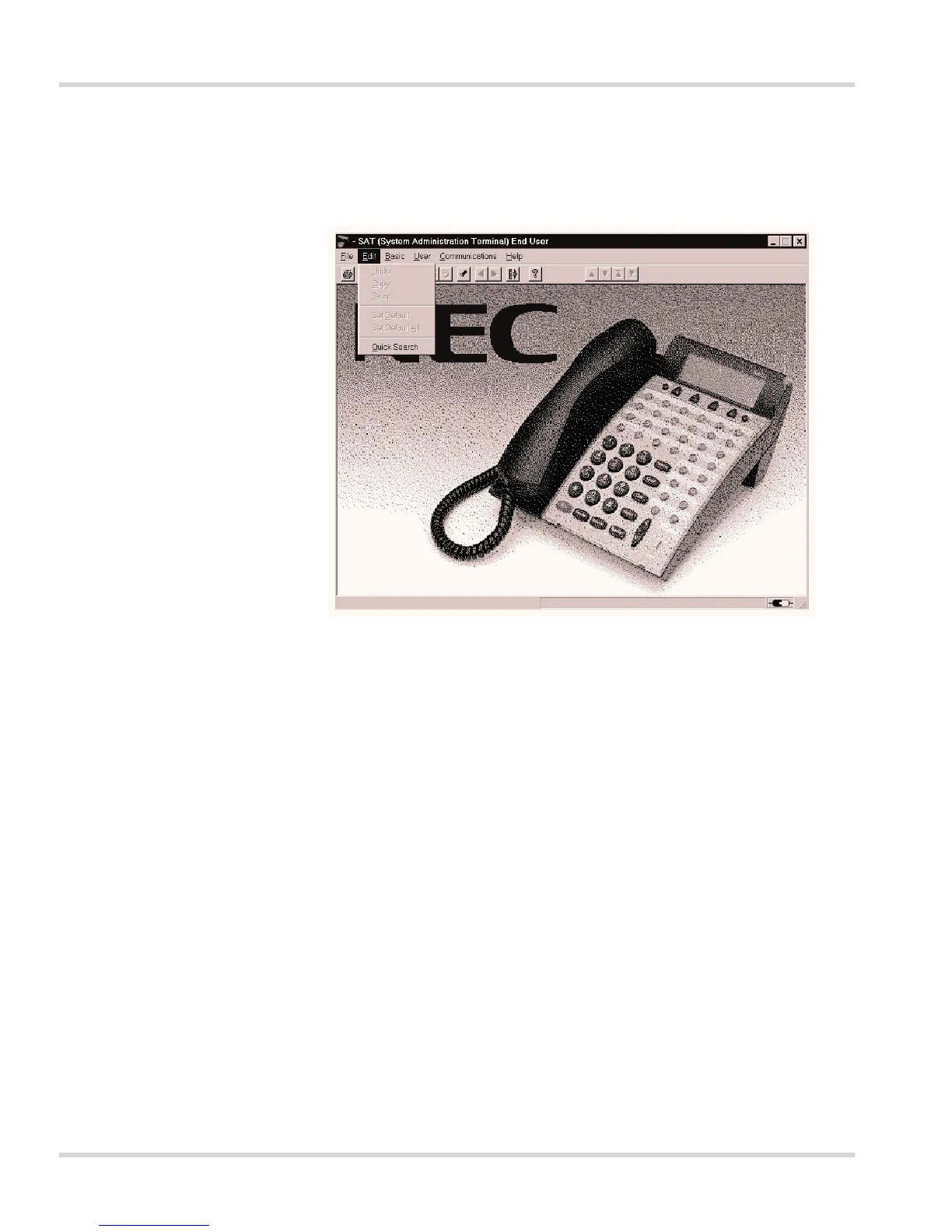

Figure 2-5 Edit Menu
