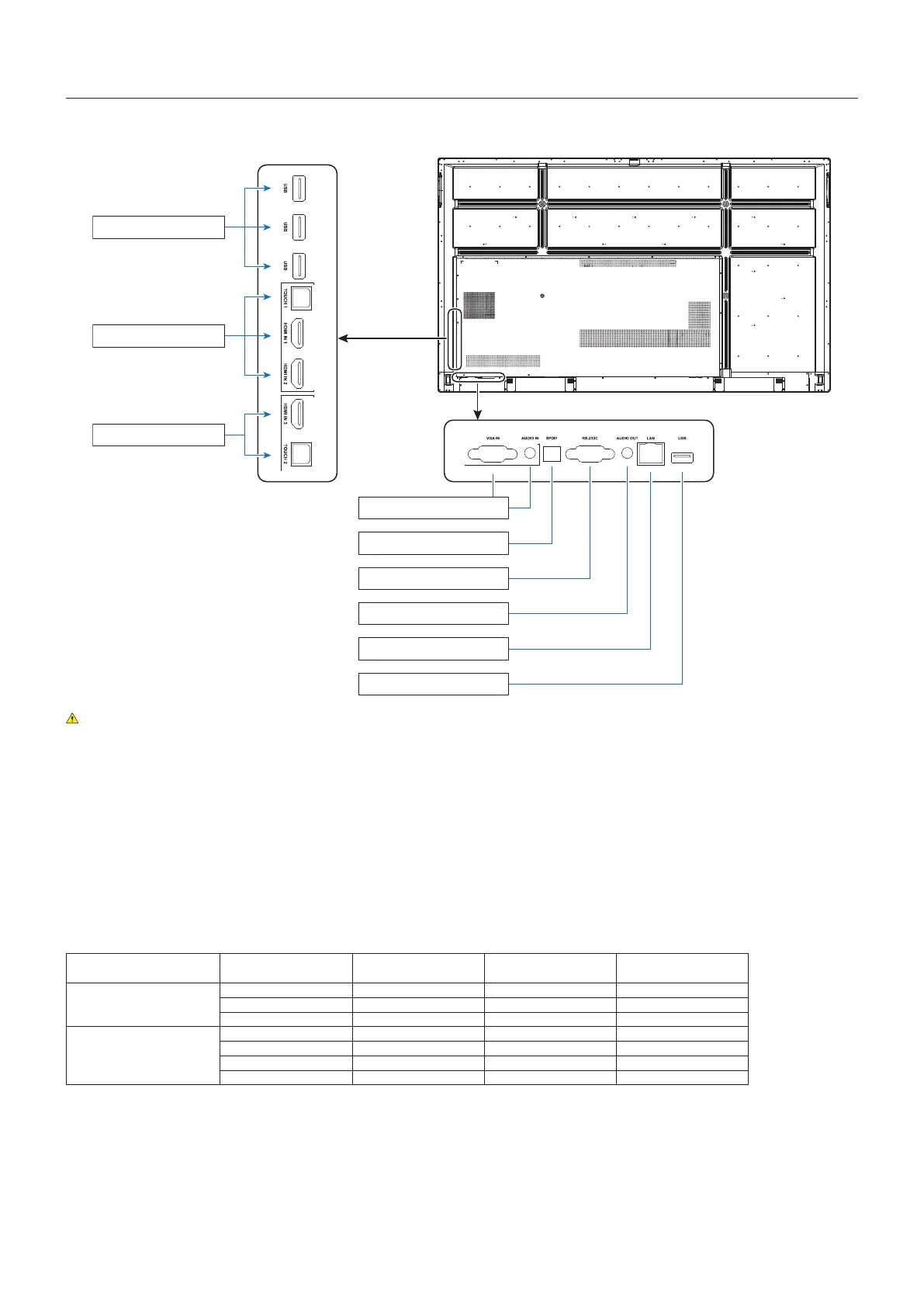

Connection and Setting
Wiring Diagram
Internet
Power amplier/stereo Amplier
Computer (RS-232C)
Stereo Amplier
USB devices
Computer
Computer
Computer
USB devices
CAUTION: For the safety of you and the machine, please do not connect any power plug before connection.
NOTE: Do not connect or disconnect cables when turning on the monitor’s main power or other external equipment’s
power,as this may result in a loss of the monitor image.
NOTE: Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.
Before making connections:
* First turn off the power of all the attached equipment and make connections.
* Refer to the user’s manual included with each separate piece of equipment.
* We strongly recommend connecting or disconnecting a USB storage device to the monitor when the monitor’s main power is off.
Connected equipment Connecting terminal Input signal name
Connecting audio
terminal
Input button in
remote control
AV
HDMI IN1 HDMI 1 HDMI 1 HDMI 1
HDMI IN2 HDMI 2 HDMI 2 HDMI 2
HDMI IN3 HDMI 3 HDMI 3 HDMI 3
PC
HDMI IN1 HDMI 1 HDMI 1 HDMI 1
HDMI IN2 HDMI 2 HDMI 2 HDMI 2
HDMI IN3 HDMI 3 HDMI 3 HDMI 3
VGA IN VGA Audio IN VGA
Please set appropriate setting for input signal.
