NEC MultiSync V484 User Manual

English-8
Parts Name and Functions

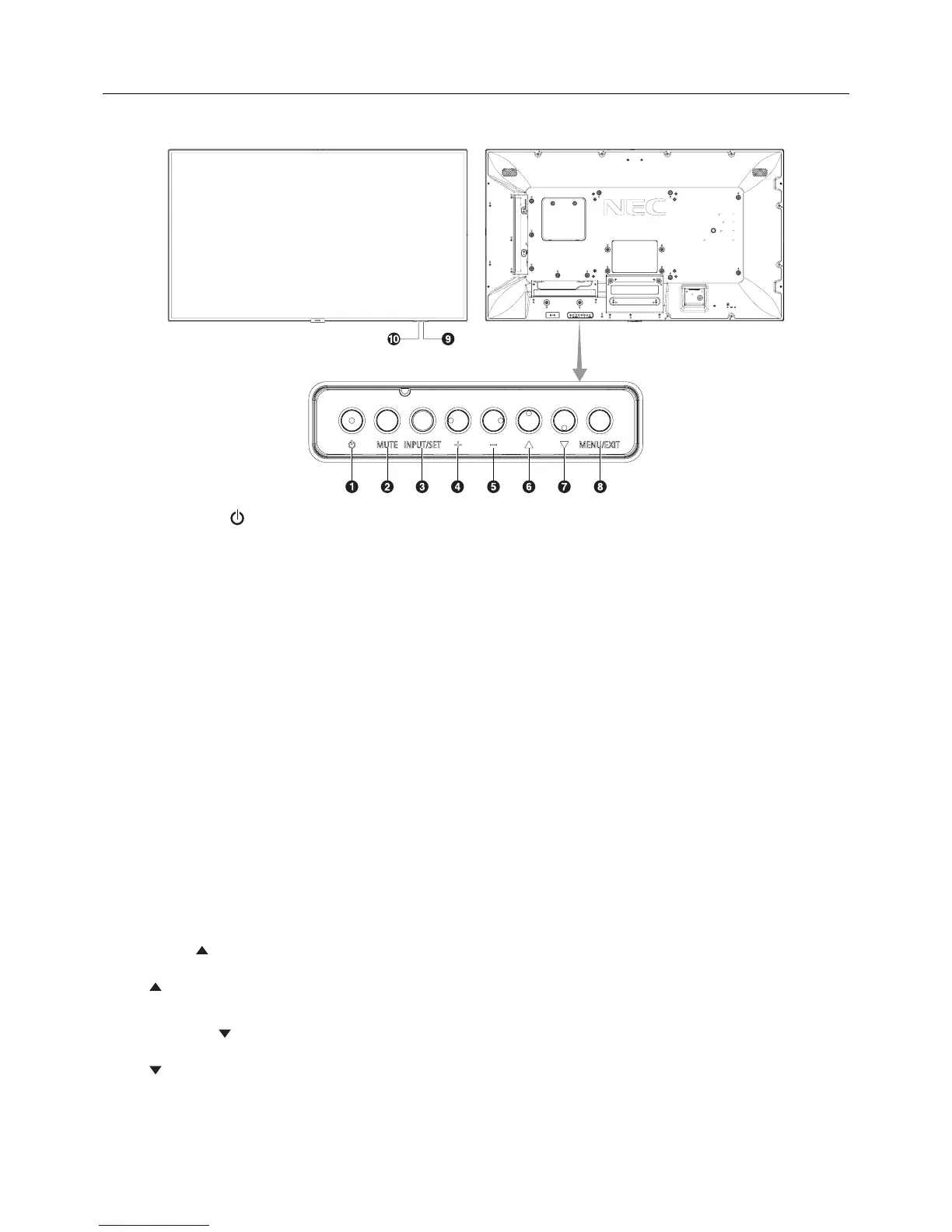

Control Panel
 POWER button ( )
Switches the power on/standby. See also page 18.
 MUTE button (MUTE)
Switches the audio mute on/off.
 INPUT/SET button (INPUT/SET)
Acts as SET/POINT ZOOM button within OSD menu.
(Toggle switches between [DVI], [HDMI1], [HDMI2],
[DisplayPort1], [DisplayPort2], [VGA (YPbPr)], [VGA (RGB)],
[VIDEO], [MP], [OPTION*]). These are available inputs only,
shown as their factory preset name.
*: This function depends on which option board you use.
 PLUS button (+)
1. Increases the audio output level when the OSD menu is
turned off.
2.
Acts as (+) button to increase the adjustment with OSD
menu.
 MINUS button (-)
1. Decreases the audio output level when the OSD menu is
turned off.
2. Acts as (-) button to decrease the adjustment with OSD
menu.
 UP button ( )
Activates the OSD menu when the OSD menu is turned off.
Acts as
button to move the highlighted area up to select
adjustment items within OSD menu.
 DOWN button ( )
Activates the OSD menu when the OSD menu is turned off.
Acts as
button to move the highlighted area down to select
adjustment items within OSD menu.
OSD is an abbreviation of On Screen Display.
 MENU/EXIT button (MENU/EXIT)
Activates the OSD menu when the OSD menu is turned off.
Acts as EXIT button within the OSD to move to previous
menu.
 Remote control sensor and Power Indicator
Receives the signal from the remote control (when using the
wireless remote control). See also page 12.
Glows blue when the LCD monitor is in active mode*.
Green and Amber blink alternately is the “SCHEDULE
SETTINGS” function enabled*
1
.
When a component failure is detected within the monitor, the
indicator will blink red or blink a combination of red and blue.
* If “OFF” is selected in the “POWER INDICATOR”
(see page 41), LED will not light when the LCD monitor is in
active mode.
*
1
If “OFF” is selected in the “SCHEDULE INDICATOR”
(see page 41), LED will not light.
NOTE: Please refer to the POWER INDICATOR
(see page 41).
 Room light sensing sensor
Detects the level of ambient light, allowing the monitor
to make automatic adjustments to the backlight setting,
resulting in a more comfortable viewing experience. Do not
cover this sensor. See page 41.

NEC MultiSync V484 Specifications

General

Power consumption (standby)	- W
Power consumption (typical)	100 W
Portrait mode	Yes
Annual energy consumption	146 kWh
Panel life	- h
Pixel pitch	- mm
Response time	8 ms
Display diagonal	48 \
Display brightness	500 cd/m²
Display technology	LED
Vertical scan range	24 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
LED backlighting type	Edge-LED
Display number of colors	1.073 billion colors
Display diagonal (metric)	120.94 cm
Active display area (W x H)	1054.1 x 592.9 mm
Internal memory	1 GB
Processor cores	4
Processor model	A53
Processor family	ARM Cortex
Processor frequency	1.2 GHz
Audio formats supported	MP3, WAV
Image formats supported	JPG, PNG
Video formats supported	FLV, MOV, MP4
Internal storage capacity	16 GB
USB version	2.0
USB ports quantity	5
DisplayPorts quantity	3
Compatible memory cards	MicroSD (TransFlash)
Ethernet LAN data rates	10, 100 Mbit/s
VGA (D-Sub) input ports	1
Purpose	-
Operating hours (hours/days)	24/7
Product color	Black
Product design	Digital signage flat panel
Bezel width (bottom)	13.2 mm
Panel mounting interface	300 x 300 mm
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	C-tick; CE; EMC Class B; FCC; PSB; TÜV GS; UL/C-UL or CSA; VCCI
Sustainability certificates	RoHS, ENERGY STAR
RMS rated power	20 W
Cables included	AC, DVI
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	54.7 mm
Width	1086.5 mm
Height	625.3 mm
Weight	17600 g
