This LCD monitor can be controlled by connecting a personal computer with a RS-232C (reverse type) terminal.
Functions that can be controlled by a personal computer are:
• Power ON or standby.
• Switching between input signals.
• Sound Mute ON or OFF.
Connection

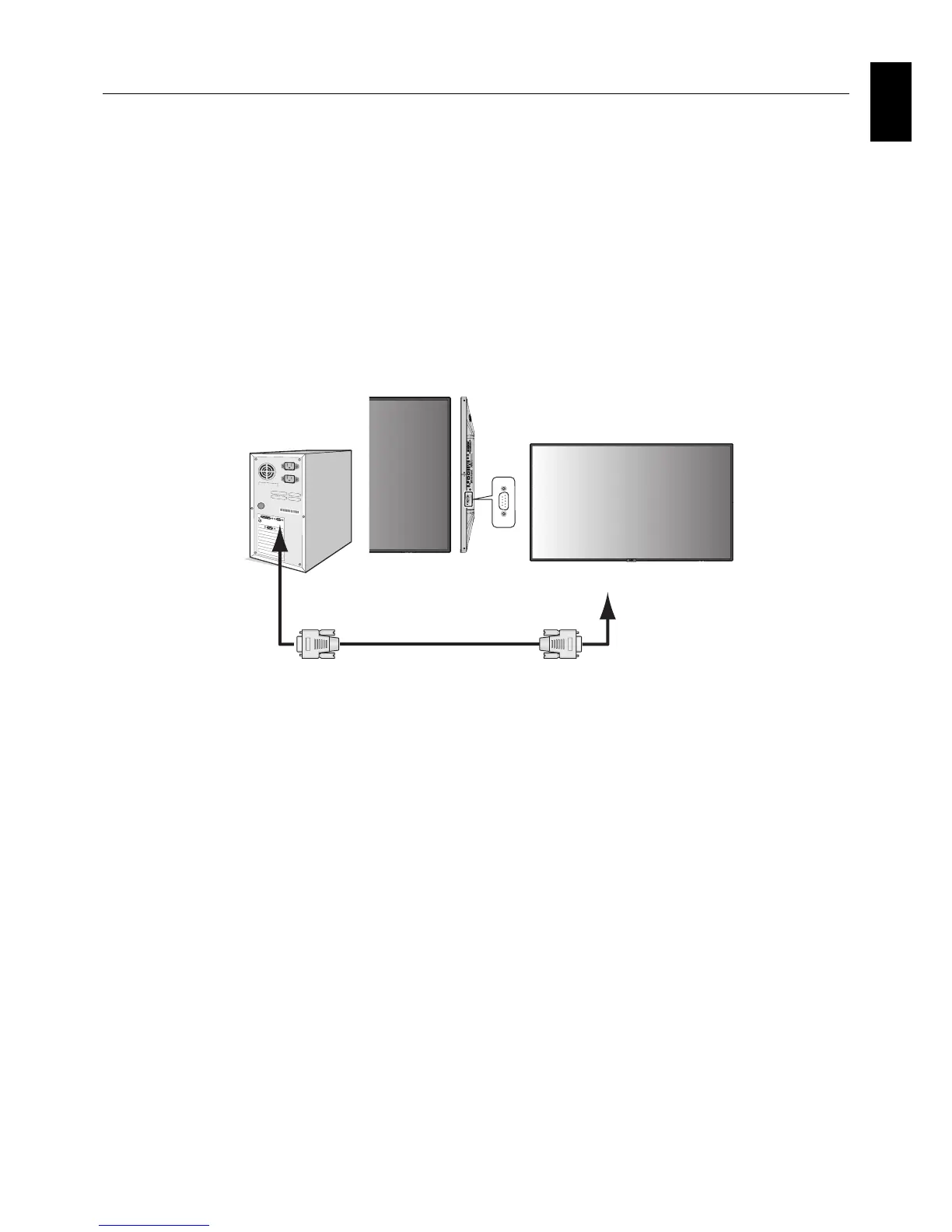

LCD Monitor + computer.
• Please turn off the monitor’s main power when connecting a computer to the monitor.
• Please turn on the connecting computer fi rst then turn on the monitor’s main power.
If you turn on the computer and the display the other order, some times com port does not work properly.
• When controlling the monitor connected with RS-232C cable, please refer to the Control command diagram (See page 55)
or see the “External_Control.pdf” fi le on the CD-ROM supplied with the monitor.
RS-232C Cable
Computer
RS-232C
MultiSync
NOTE: If your computer is equipped only with a 25-pin serial port connector, a 25-pin serial port adapter is required. Contact
your supplier for details.
For the pin assignment, please see “2) RS-232C input/output” next page.
To control a monitor, please use the control command. Instructions for the control command can be found on the CD included
with the monitor. The fi le is called “External_control.pdf”.
Controlling the LCD monitor via RS-232C Remote Control

NEC MultiSync V484 Specifications

General

Power consumption (standby)	- W
Power consumption (typical)	100 W
Portrait mode	Yes
Annual energy consumption	146 kWh
Panel life	- h
Pixel pitch	- mm
Response time	8 ms
Display diagonal	48 \
Display brightness	500 cd/m²
Display technology	LED
Vertical scan range	24 - 85 Hz
Horizontal scan range	31.5 - 91.1 kHz
LED backlighting type	Edge-LED
Display number of colors	1.073 billion colors
Display diagonal (metric)	120.94 cm
Active display area (W x H)	1054.1 x 592.9 mm
Internal memory	1 GB
Processor cores	4
Processor model	A53
Processor family	ARM Cortex
Processor frequency	1.2 GHz
Audio formats supported	MP3, WAV
Image formats supported	JPG, PNG
Video formats supported	FLV, MOV, MP4
Internal storage capacity	16 GB
USB version	2.0
USB ports quantity	5
DisplayPorts quantity	3
Compatible memory cards	MicroSD (TransFlash)
Ethernet LAN data rates	10, 100 Mbit/s
VGA (D-Sub) input ports	1
Purpose	-
Operating hours (hours/days)	24/7
Product color	Black
Product design	Digital signage flat panel
Bezel width (bottom)	13.2 mm
Panel mounting interface	300 x 300 mm
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	C-tick; CE; EMC Class B; FCC; PSB; TÜV GS; UL/C-UL or CSA; VCCI
Sustainability certificates	RoHS, ENERGY STAR
RMS rated power	20 W
Cables included	AC, DVI
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth	54.7 mm
Width	1086.5 mm
Height	625.3 mm
Weight	17600 g
