4. Installing and removing optional table
top stand
CAUTION: Installing and removing the stand must be done
by two or more people.
To install, follow those instructions included with the optional
table top stand or mounting equipment. Use only those
devices recommended by the manufacturer.
NOTE: Use ONLY screws which are included with the
optional table top stand.
When installing the LCD monitor stand, handle the unit with
care to avoid pinching your fi ngers.
NOTE: Use the ST-401. Please refer to the ST-401
user’s manual for more detail.
NOTE: DO NOT use the P554/V554 on the fl oor with the
table top stand. Please use this monitor on a table
or with a mounting accessory for support.

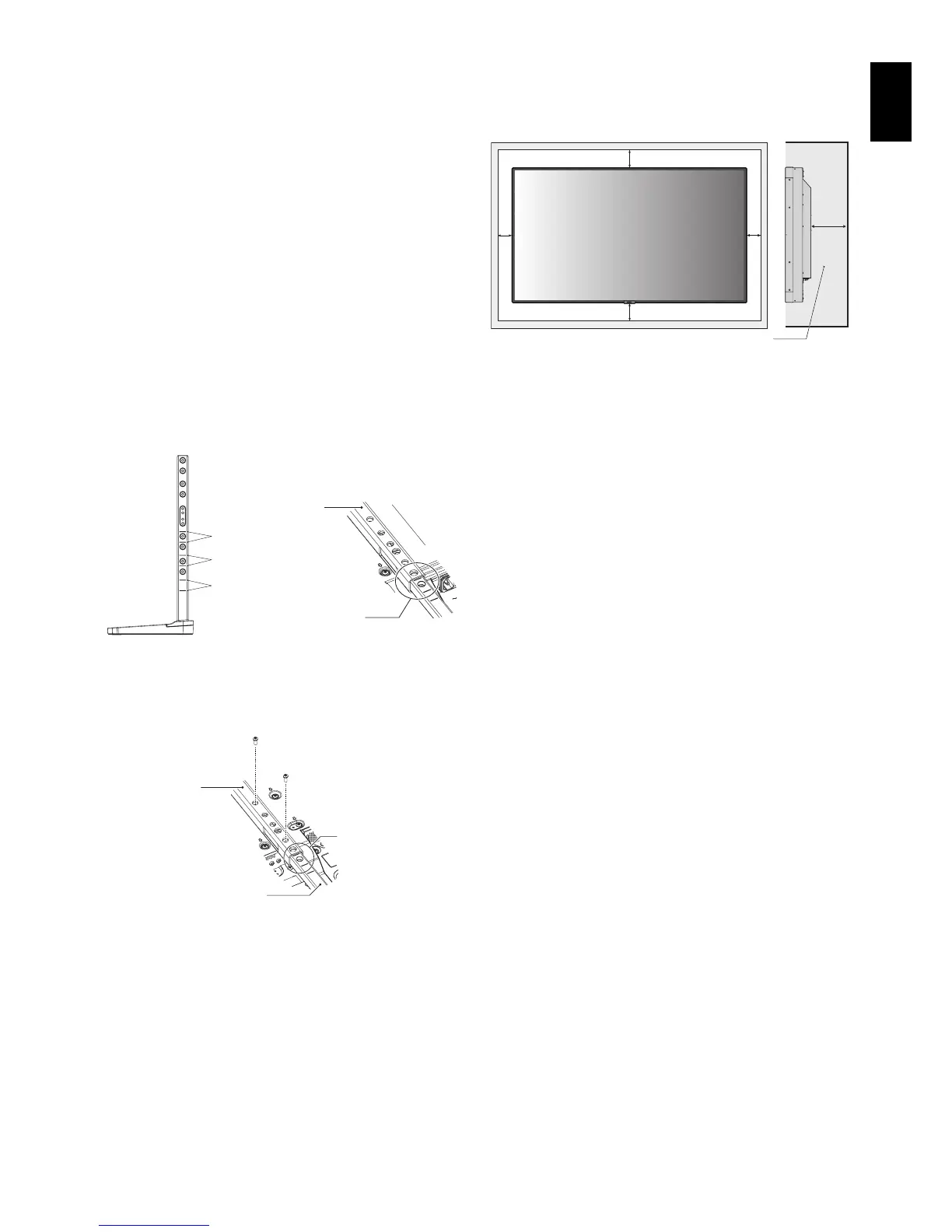

Height adjustment
1. The lines on the stand pole are indicators of the height
adjustment (Figure 3). Please adjust the pipe to the lines.
Figure 3
P554/V554 High/Low
P484/V484 High/Low
P404/V404 High/Low
Pipe
Adjust the pipe to a line.
2. Please install the stand pole and the pipe with included
screws. Please screw the two screw holes at the pipe
(Figure 4).
Pipe
Figure 4
Stand pole
Adjust the pipe
to a line.
NOTE: Installing the monitor at the wrong height can
cause tipping.
Please install your monitor at proper height.
5. Ventilation Requirements
When mounting in an enclosed space or recessed area,
leave adequate room between the monitor and the enclosure
to allow heat to disperse, as shown below.
100 mm
100 mm
30 mm
100 mm
100 mm
Must be under 40 Degree Celsius.
Allow adequate ventilation or provide air conditioning around
the monitor, so that heat can properly dissipate away from
the unit and mounting equipment; especially when you use
monitors in multiple screen.
NOTE: The sound quality of the internal speakers will
differ according to the acoustics of the room.
