English-11
English

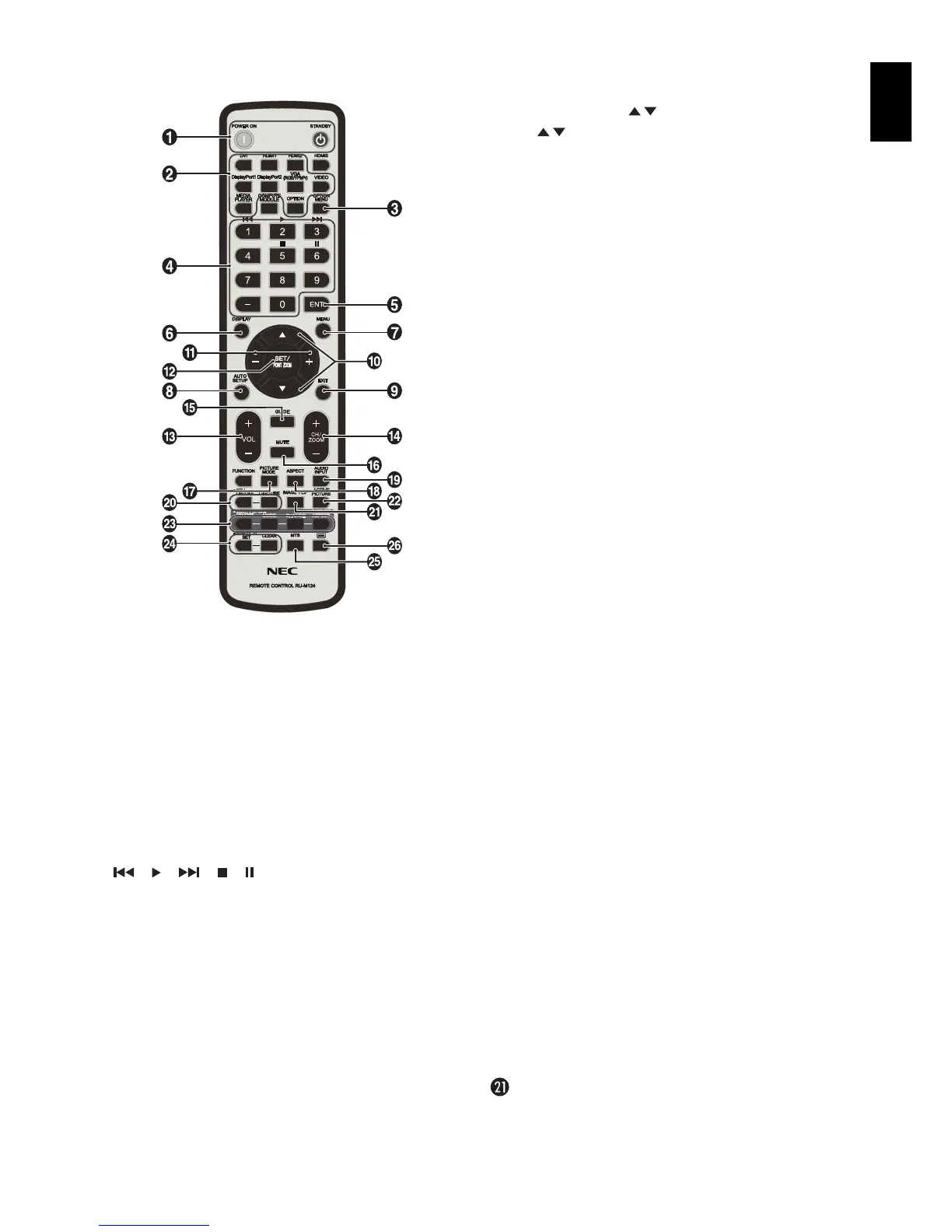

Wireless Remote Control
POWER ON/STANDBY button
Switches the power on/standby.
INPUT button
Selects input signal.
Input signal for MEDIA PLAYER is shown as MP.
OPTION MENU button
KEYPAD
Press the buttons to set and change passwords, change
channel and set REMOTE ID.
Below buttons are used for CEC (See page 41) and
Media Player function (See page 20):
1
, 2 , 3 , 5 , 6 .
ENT button*
1
DISPLAY button
Turns on/off the information OSD. See page 26.
MENU button
Turns on/off the menu mode.
AUTO SET UP button
Enters auto setup menu. See page 32.
EXIT button
Returns to previous menu within OSD menu.
UP/DOWN button ( / )
Acts as
button to move the highlighted area up or down
to select adjustment items within OSD menu.
Small screen which adjusted PIP (picture in picture) mode
moves up or down.
MINUS/PLUS (-/+) button
Increases or decreases the adjustment level within OSD
menu settings.
Small screen which adjusted “PIP” mode moves left or right
and increases or decreases the size.
SET/POINT ZOOM button
Makes selection. Activates POINT ZOOM function when OSD
menu is not shown.
VOLUME UP/DOWN button (VOL +/-)
Increases or decreases audio output level.
CH/ZOOM UP/DOWN button (CH/ZOOM +/-)*
1
Increases or decreases POINT ZOOM level.
GUIDE button*
1
MUTE button
Turns on/off mute function.
PICTURE MODE button
Selects picture mode, [HIGHBRIGHT], [STANDARD],
[sRGB], [CINEMA], [CUSTOM1], [CUSTOM2],
[SVE-(1-5) SETTINGS]. See page 29.
HIGHBRIGHT: For moving images such as DVD.
STANDARD: For images.
sRGB: For text based images.
CINEMA: For movies.
CUSTOM1 and CUSTOM2: Activates auto dimming
function. See page 41.
SVE-(1-5) SETTINGS: For images and movies.
ASPECT button
Selects picture aspect, [FULL], [WIDE]*, [DYNAMIC]*, [1:1],
[ZOOM] and [NORMAL]. See page 19.
* HDMI1, HDMI2, VGA (YPbPr) inputs only.
AUDIO INPUT button
Selects audio input source [IN1], [IN2], [HDMI1], [HDMI2],
[DisplayPort1], [DisplayPort2], [OPTION]*
1
, [MP].
STILL button
ON/OFF button: Activates/deactivates still picture mode.
CAPTURE button: Captures still picture.
NOTE: This function is released when selecting MULTI
PICTURE MODE, TEXT TICKER, SCREEN SAVER, POINT
ZOOM, IMAGE FLIP except for NONE, SUPER in INPUT
CHANGE, TILE MATRIX.
CLOSED CAPTION is not available when STILL is active.
If input signal is OPTION, this button’s actions depend on
which option board you use.
IMAGE FLIP button
Toggle switches between [H FLIP], [V FLIP], [180° ROTATE]
and [NONE]. See page 33.
*1: This button’s action depends on which option board you use.
