NEC MultiSync V484

English-48
1) Interface
PROTOCOL RS-232C
BAUD RATE 9600 [bps]
DATA LENGTH 8 [bits]
PARITY NONE
STOP BIT 1 [bit]
FLOW CONTROL NONE
This LCD monitor uses RXD, TXD and GND lines for RS-232C control.
The reverse type cable (null modem cable) (not include) should be used for RS-232C control.
2) PIN ASSIGNMENT
RS-232C input/output
1
6
5
9

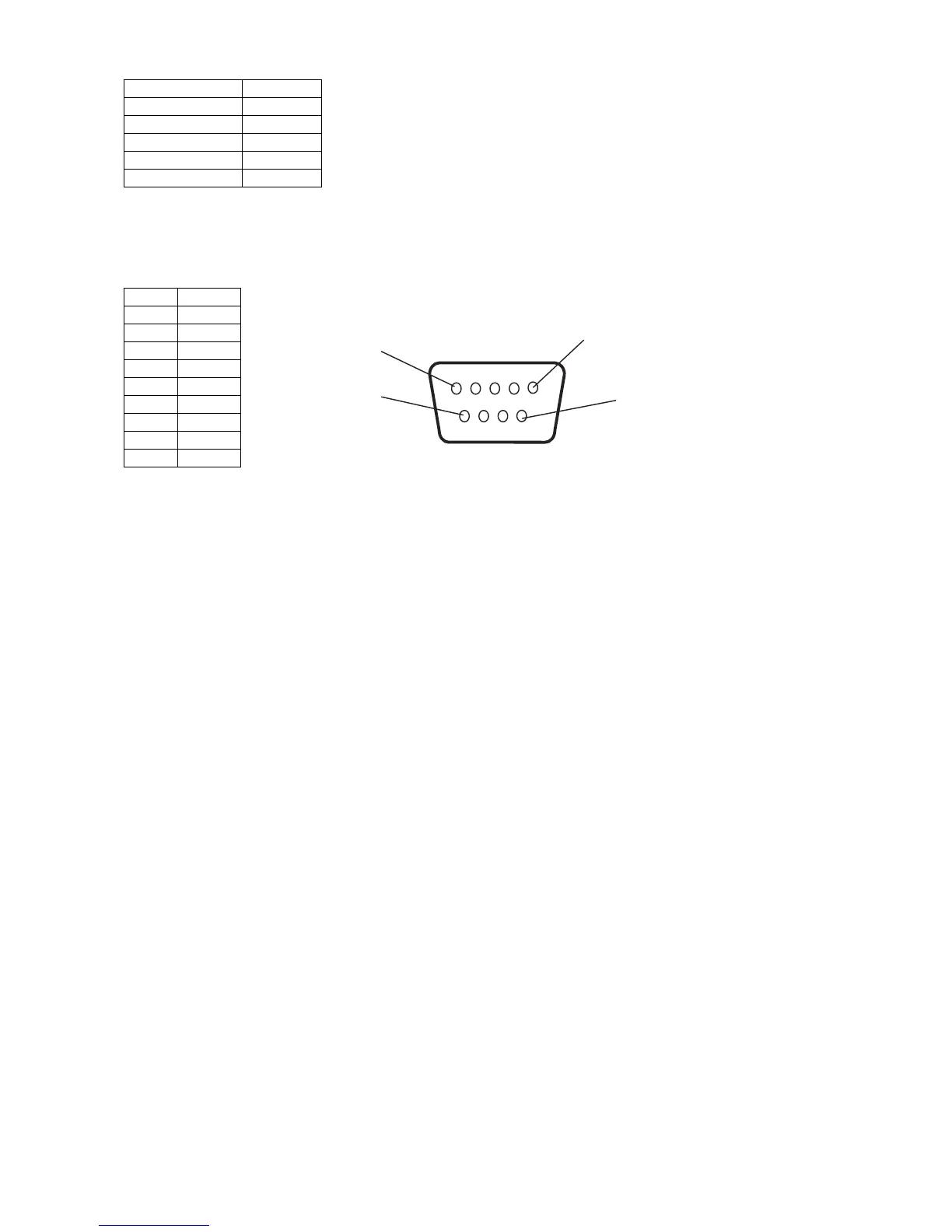

D-SUB 9P (Monitor side)
Pin No Name
1NC
2 RXD
3 TXD
4NC
5 GND
6NC
7NC
8NC
9NC
This LCD monitor uses RXD, TXD and GND lines for RS-232C control.
