NEC NEAX 2400 ICS - Figure 3-14 Confirmation of Short Piece; Confirmation of Power Cable of the DRU

CHAPTER 3 ND-45383 (E)
Page 42
Revision CD 1.0
3.3 Confirmation of Power Cable of the DRU
Referring to Figure 3-14, confirm that a short circuiting cable is connected across the 100V/200V terminals
on the Power Supply in the DRU. If the short piece is not connected across the above-mentioned terminals,
connect it.
Note: When the operating voltage to be used is 200V ~ 260V, remove the short piece connected across 100V/200V terminals.

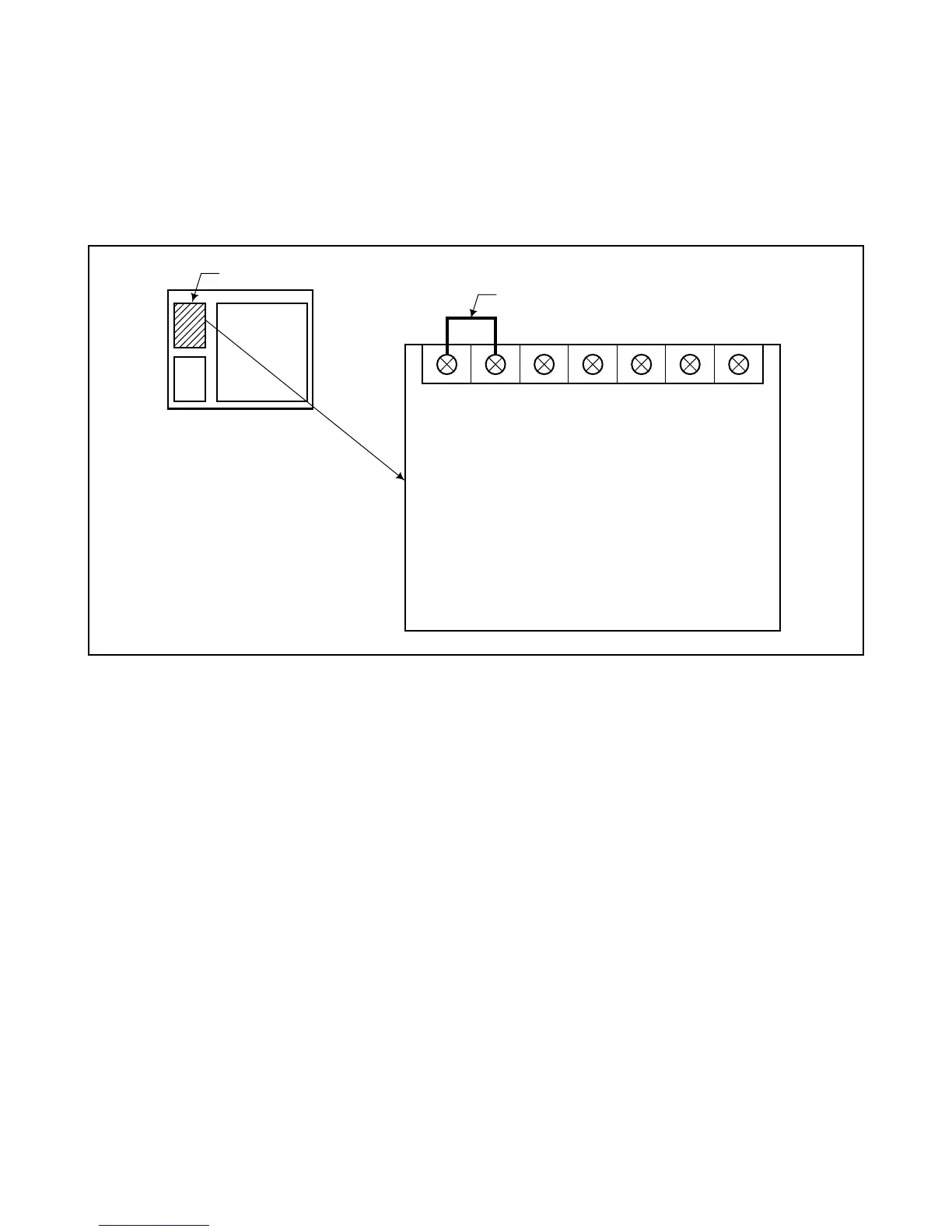

Figure 3-14 Confirmation of Short Piece
(100V/200V) (AC)
[L]
(AC)
[N]
(FG) (–) (+)
Confirm that a short piece is connected here.
Power Supply
DRU
Power Supply
