Chapter 1

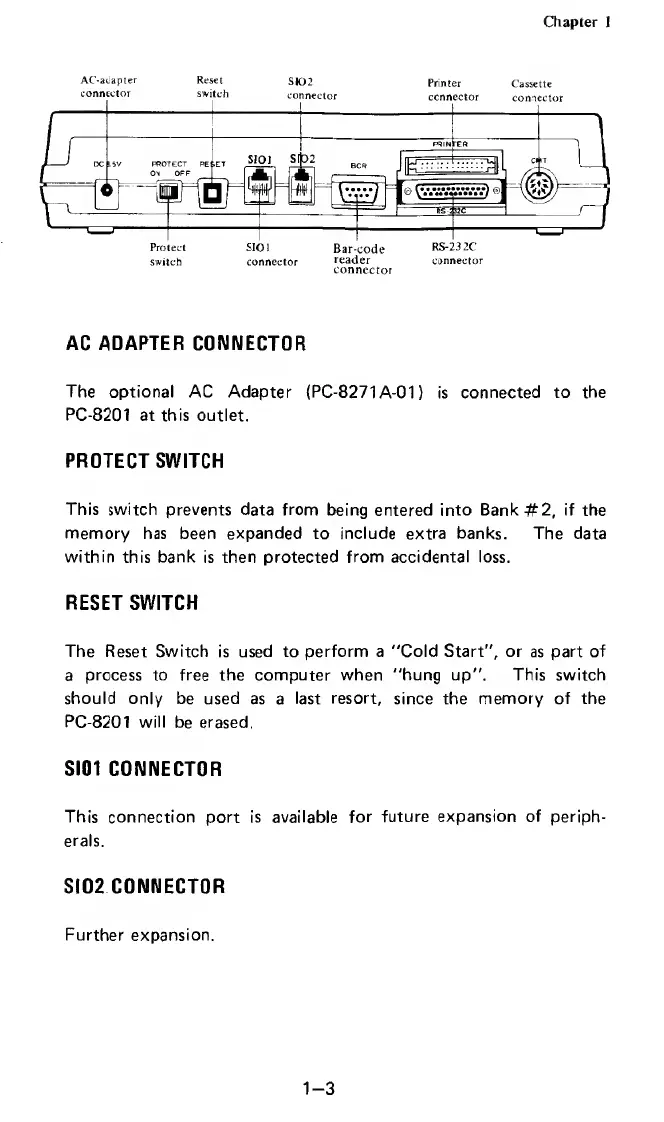

AC-adapter Reset SK>2 Printer Cassette
switch connector connector mnin'tnr
AC ADAPTER CONNECTOR
The optional AC Adapter (PC-8271 A-01) is connected to the
PC-8201 at this outlet.
PROTECT SWITCH
This switch prevents data from being entered into Bank #2, if the
memory has been expanded to include extra banks. The data
within this bank is then protected from accidental loss.
RESET SWITCH
The Reset Switch is used to perform a "Cold Start", or as part of
a process to free the computer when "hung up". This switch
should only be used as a last resort, since the memory of the
PC-8201 will be erased.
5101 CONNECTOR
This connection port is available for future expansion of periph¬
erals.
5102 CONNECTOR
Further expansion.
1-3
