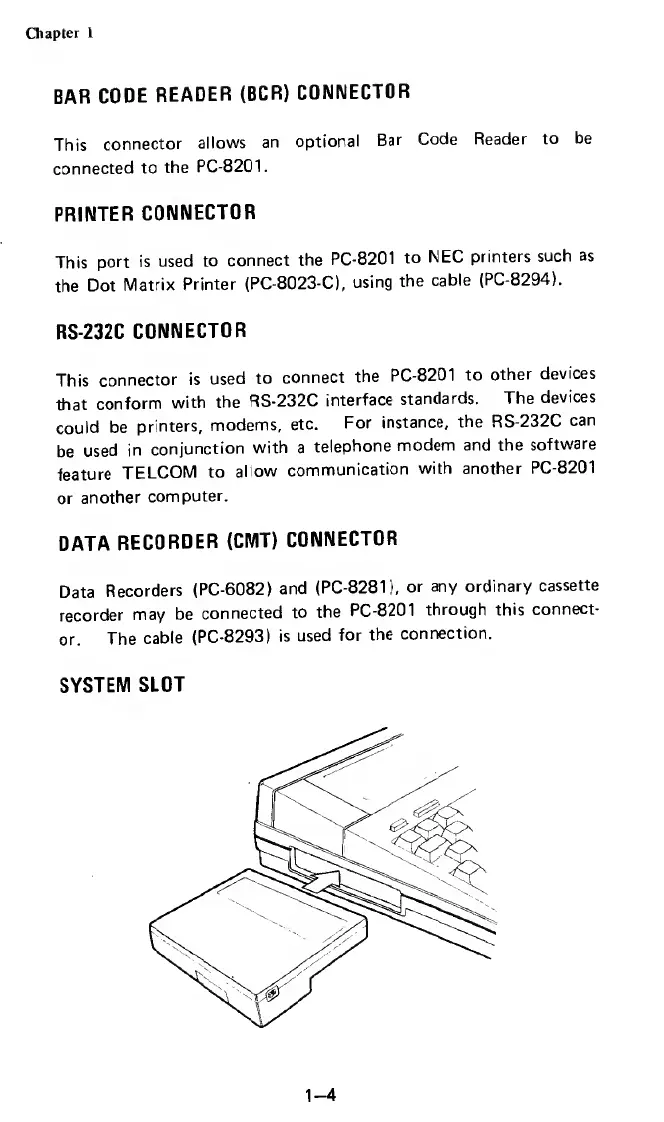

Chapter 1
BAR CODE READER (BCR) CONNECTOR
This connector allows an optional Bar Code Reader to be
connected to the PC-8201.
PRINTER CONNECTOR
This port is used to connect the PC-8201 to NEC printers such as
the Dot Matrix Printer (PC-8023-C), using the cable (PC-8294).
RS-232C CONNECTOR
This connector is used to connect the PC-8201 to other devices
that conform with the RS-232C interface standards. The devices
could be printers, modems, etc. For instance, the RS-232C can
be used in conjunction with a telephone modem and the software
feature TELCOM to allow communication with another PC-8201
or another computer.
DATA RECORDER (CMT) CONNECTOR
Data Recorders (PC-6082) and (PC-8281), or any ordinary cassette
recorder may be connected to the PC-8201 through this connect¬
or. The cable (PC-8293) is used for the connection.
SYSTEM SLOT
