Product overview
II. Rear panel

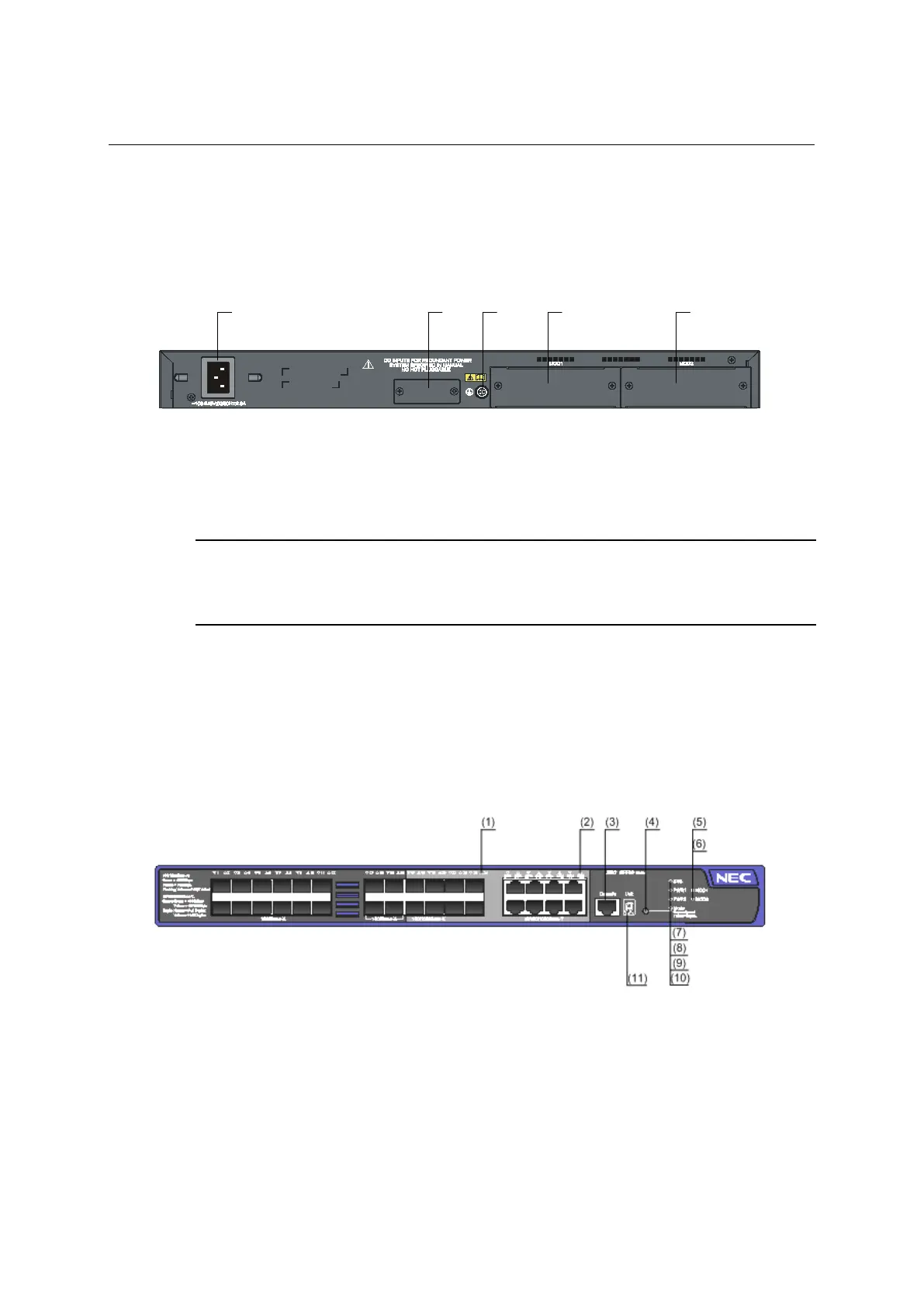

Figure 1-6 QX-S5550P rear panel
(
1
)
(
2
)
(3
)
(
4)
(5
)
(1) AC power input
(2) RPS power input
(3) Grounding screw
(4) Interface module slot 1 (MOD1)
(5) Interface module slot 2 (MOD2)

NOTE:
Please refer to "Expansion interface module" about a practicable Interface module expansion interface card by
an Interface module slot.
1.2.4 QX-S5526T panel views
I. Front panel
Figure 1-7 QX-S5526T front panel
(1) 100/1000BASE-X SFP port status LED
(2) 10/100/1000 BASE-T auto-sensing Ethernet port status LED
(3) Console port
(4) Port status LED mode switching button
(5) Interface module 1 status LED (MOD1)
(6) Interface module 2 status LED (MOD2)
(7) System status LED (SYS)
(8) Hot swappable power module 1 status LED (PWR1)
(9) Hot swappable power module 2 status LED (PWR2)
(10) Port mode LED (Mode)
(11) Seven-segment LED
