QX-S5500 Series Ethernet Switches
6

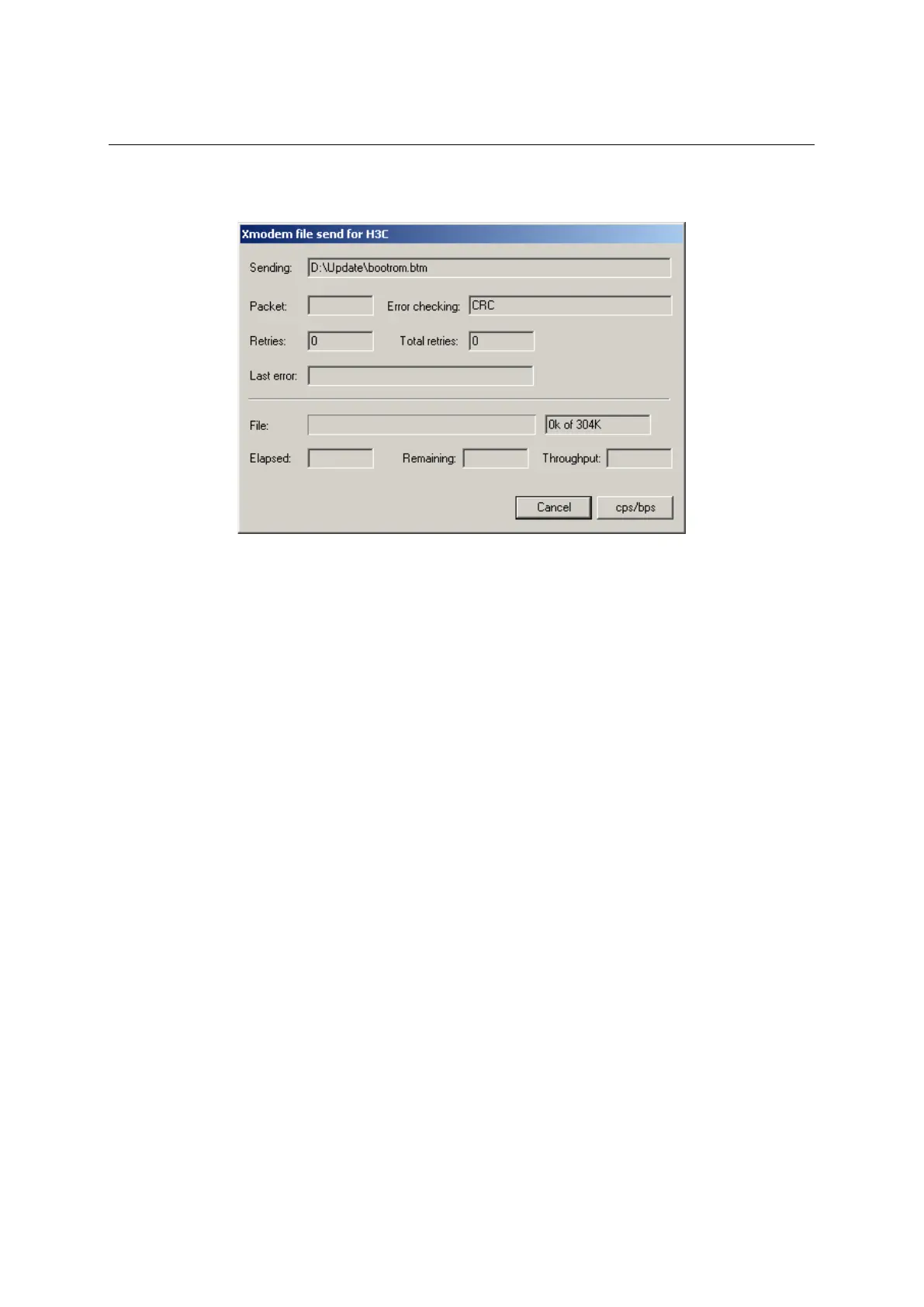

Figure 6-4 Page for file sending
7) After the program file is downloaded, the terminal displays the following information:
Loading ...CCCCCCCCCC done!
## Total Size = 0x00055d40 = 351552 Bytes
Your baudrate should be set to 9600 bps again!
Press enter key when ready.
8) Cut a connection in a hyper terminal once. Reset HyperTerminal’s baud rate to 9600
bps. If setting is completed, it's connected again in a hyper terminal.
9) The menu is indicated again, so input "0", and please return to the Boot menu. Restart
the switch by inputting "0" by the Boot menu.
6.5 Upgrade of Boot ROM software by remote
6.5.1 Upgrade of software by FTP
When a terminal is connected to the switch by a network, Boot ROM software can be
upgraded remotely.
Carry out the FTP server as which the user name, a password and a file directory are set
right on the local end. An IP address of a terminal is 10.10.110.1. Log on to the switch via
Telnet and send a host program to the switch using a FTP.
The Boot ROM software program is made SWITCH.app. After logging on to the switch
using Telnet, follow the next procedure.
1) Download the Boot ROM software to the switch using FTP.
<QX> ftp 10.10.110.1
Trying ...
Press CTRL+K to abort
Connected.
220 WFTPD 2.0 service (by Texas Imperial Software) ready for new user
User(none):lyt
6-13
