Installation Guide
QX-S5500 Series Ethernet Switches
1
Product overview
Following CX4 cables supported by the 2-port 10 GE CX4 interface module
10GBASE-CX4 cable A(50cm) [CAB-CX4T2-50CM]
10GBASE-CX4 cable B(100cm) [CAB-CX4T2-100CM]
10GBASE-CX4 cable C(300cm) [CAB-CX4T2-300CM]

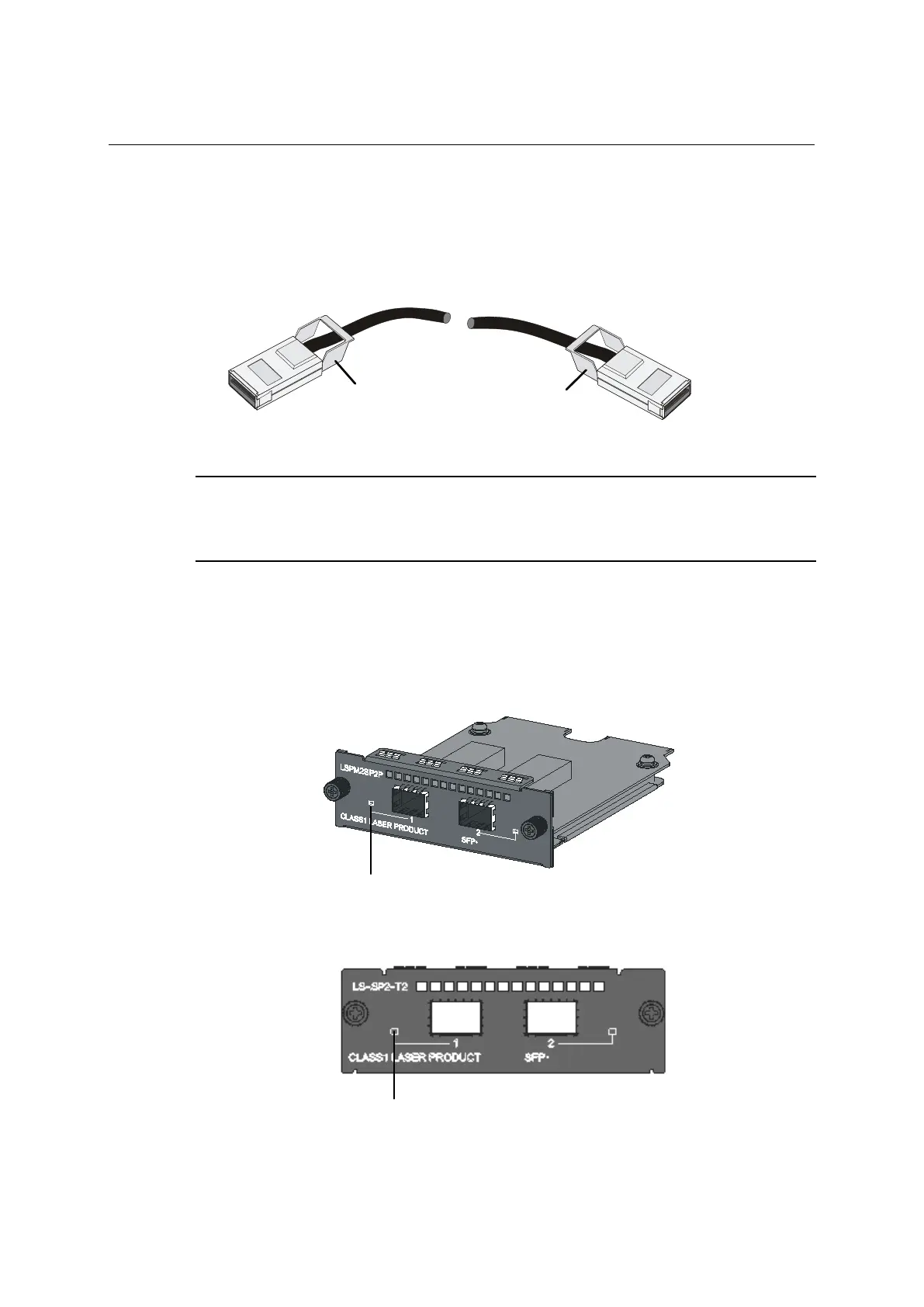

Figure 1-11 CX4 cable
Handle Handle
Connector 1
Connector 2
NOTE:
The CX4 cable isn't attached to the 2-port 10G BASE-CX4 interface module (LS-CX2-T2). When using the CX4
cable, it's necessary to buy the CX4 cable separately.
1.5.2 2-port 10G BASE-XFP interface module (LS-SP2-T2)
Figure 1-12 2-port 10G BASE-XFP interface module (LS-SP2-T2)
Figure 1-13 2-port 10G BASE-XFP interface module front panel (LS-SP2-T2)
Port LED
Port LED
1-13
