NEC Univerge SV9100 - Figure 5-2 UNIVERGE SV9100 CHS2 UG GW-US Chassis; Table 5-1 9.5 Gateway and 19 Maximum System Capacities - Chassis

Issue 2.0
5-2 Hardware Specifications
The UNIVERGE SV9100 CHS2UG GW-US is a 9.5” chassis that has three
universal slots and one PSU. The standalone module provides 48 total ports (32
digital terminals) and can include any combination of stations and trunks below
this number.
Table 5-1 9.5” Gateway and 19” Maximum System Capacities – Chassis shows
the maximum number of chassis and related equipment that can be installed in a
system.

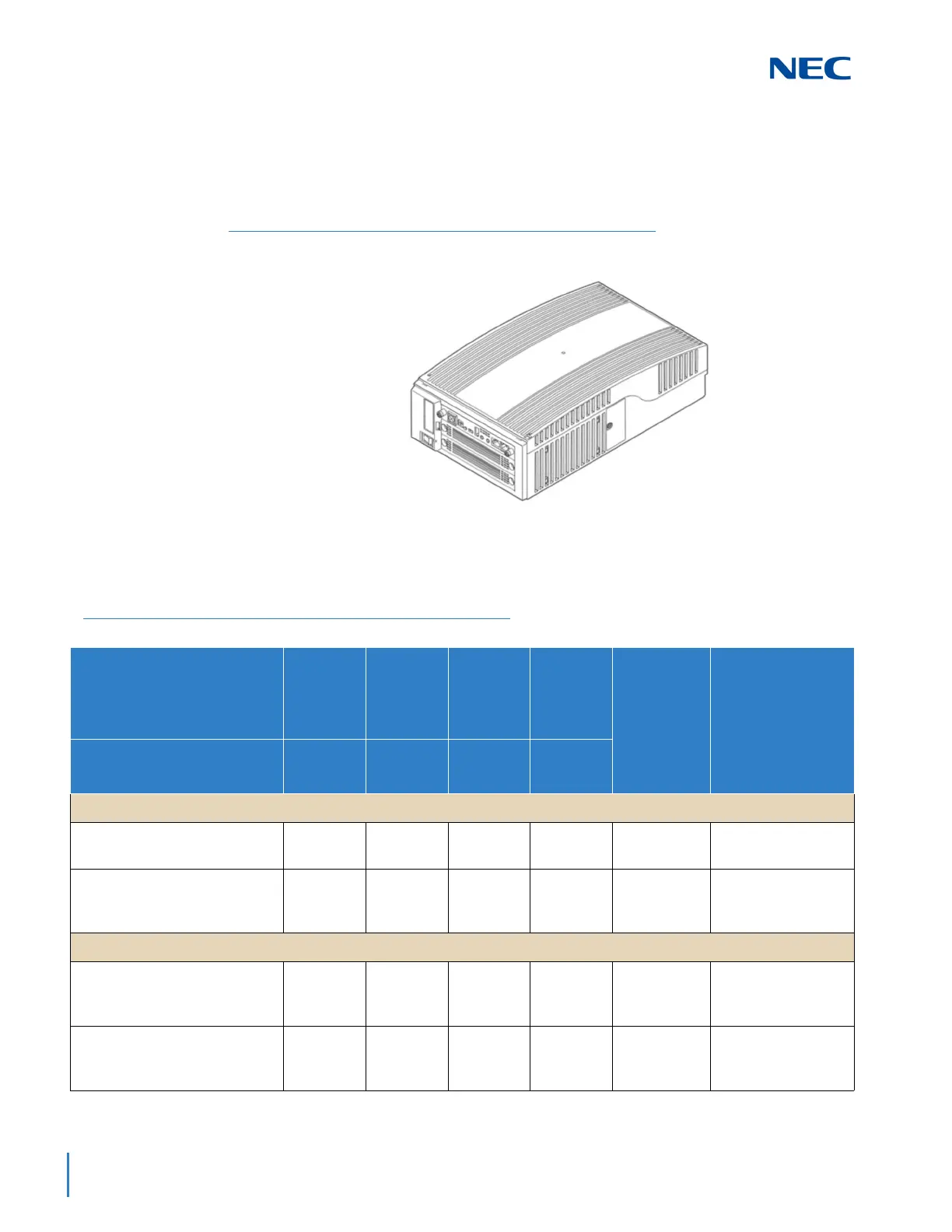

Figure 5-2 UNIVERGE SV9100 CHS2UG GW-US Chassis
Table 5-1 9.5” Gateway and 19” Maximum System Capacities – Chassis
Hardware
9.5”
Chassis
19”
Chassis
with CPU
19”
Chassis
without
CPU
19”
Chassis
x4
Networked
Chassis
(NetLink)
Comments
Number of Slot(s) for
Interface Package
3 Slots 5 Slots 6 Slots 23 Slots
Chassis:
CHS2UG GW-US
(9.5” Chassis)
1––– –Gateway chassis
CHS2UG-US
(19” Chassis)
–11450 x (1+3)Virtual slot in
NetLink is limited to
maximum of 240
Expansion:
GPZ-BS10
3-jack Expansion Board for
Controlling Chassis
0101

–
GPZ-BS11
1-jack Expansion Board for
Expansion Chassis
0013

–
