Issue 2.0
5-4 Hardware Specifications
Table 5-2 9.5” Base and Expansion Maximum System Capacities – Chassis on
page 5-4 shows the maximum number of chassis and related equipment that can
be installed in a 9.5” Base and Expansion system.

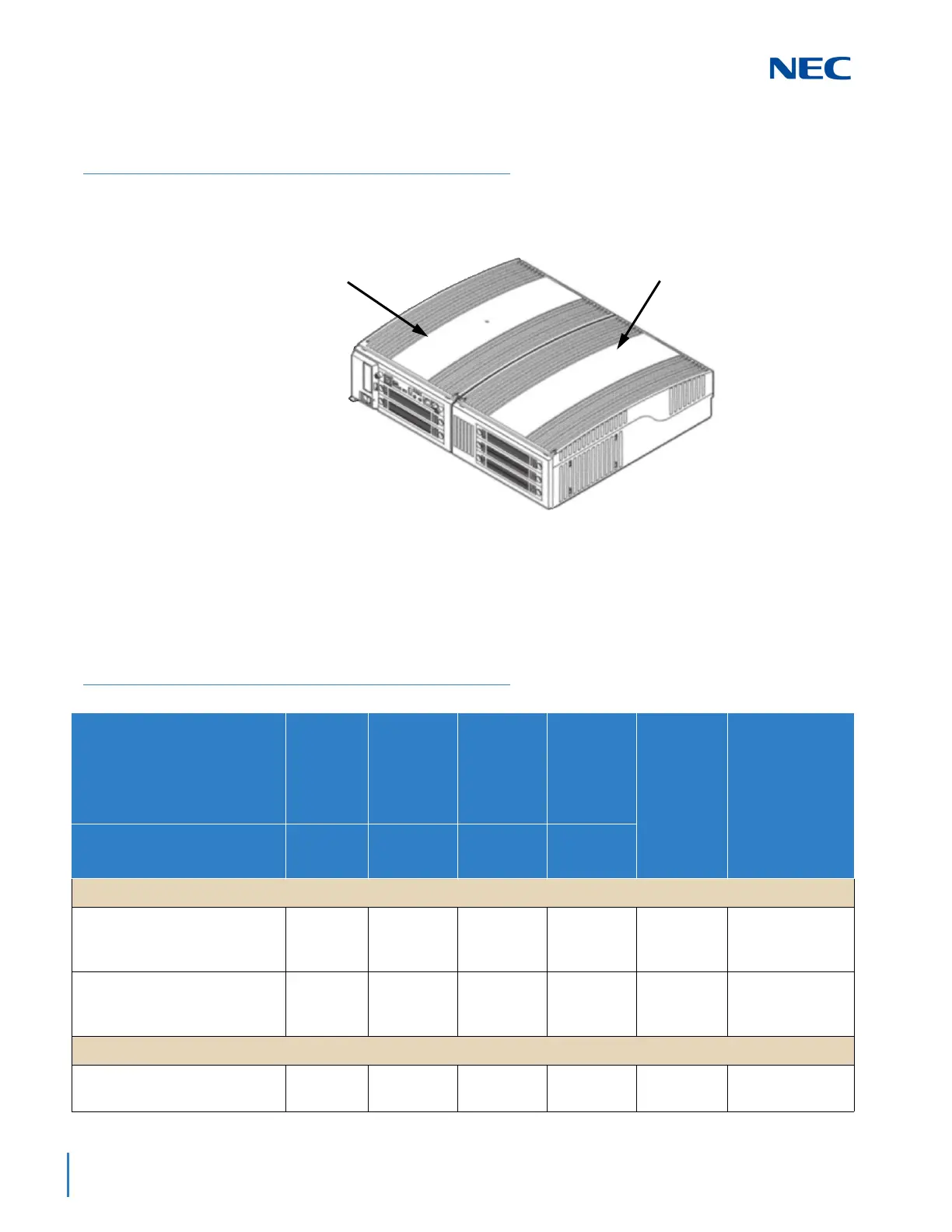

Figure 5-3 CHS2UG B-US Base and CHS2UG E Expansion Chassis
Expansion Chassis
CHS2UG E
Base Chassis
CHS2UG B-US
Table 5-2 9.5” Base and Expansion Maximum System Capacities – Chassis
Hardware 9.5” Base
9.5” Base
+
Expansion
with CPU
9.5” Base
+
Expansion
without
CPU
9.5” Base
+
Expansion
x4
Networked
Chassis
(NetLink)
Comments
Number of Slot(s) for
Interface Package
3 Slots 5 Slots 6 Slots 23 Slots
Expansion:
GPZ-BS10
3-port Expansion Board for
Controlling Chassis
1111– –
GPZ-BS11
1-port Expansion Board for
Expansion Chassis
1113– –
Battery:
CHSG LARGE BATT BOX
(External Battery Box)
111450 x (1+3)–
