Page 8 of 28
Installation
The amplier or preamplier unit is designed to be easily installed in any convenient location.
It can be placed on a desk free standing. Simply unpack the unit, mount the adhesive feet and it is
ready to go.

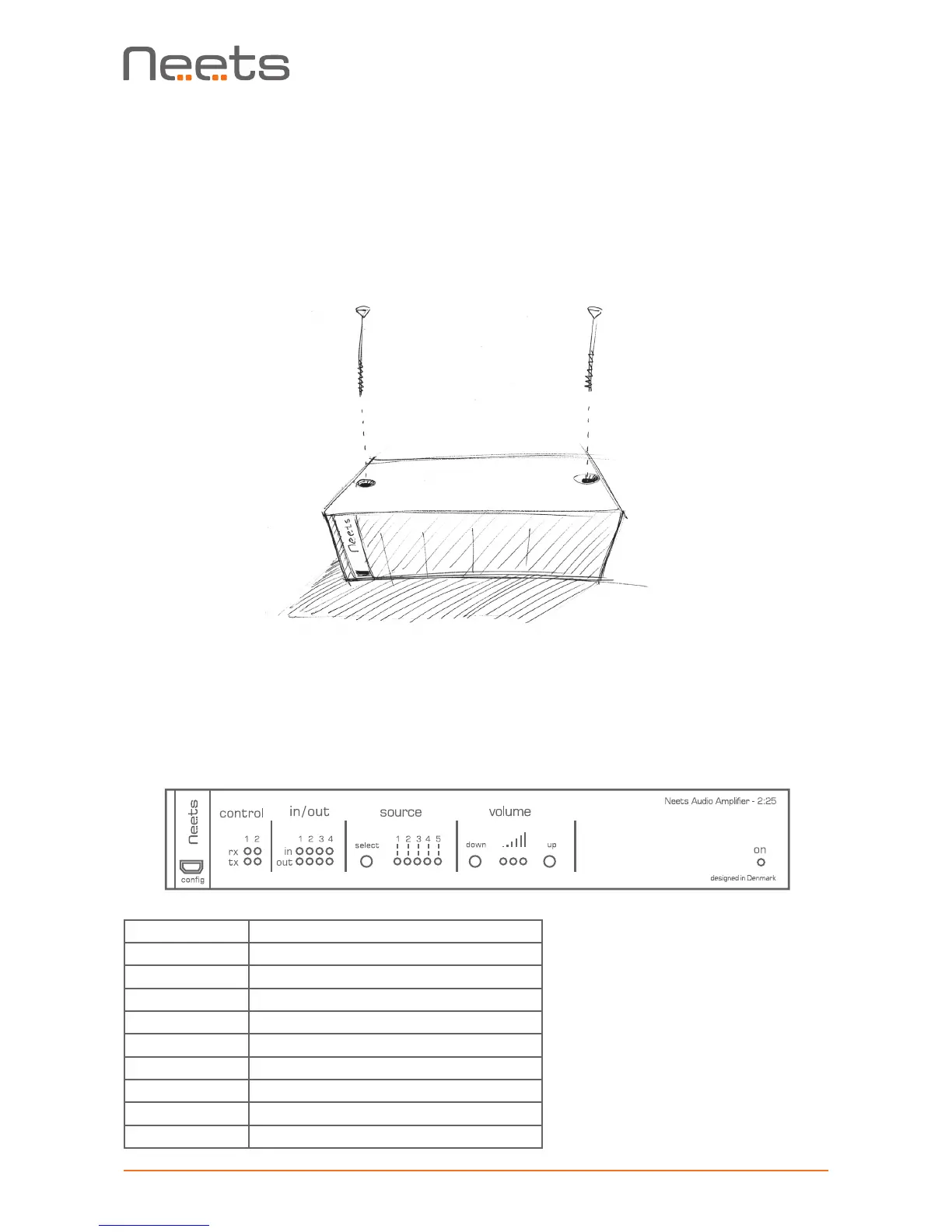

Alternatively, the unit can be mounted under a table, on a ceiling etc. with the included self-tap-
ping screws. Unpack the unit, place the unit on the surface where it should be mounted, and
screw the two screws through the holes in the top as shown below:
The unit also can be mounted in a 19 inch standard rack using the Neets Rack Shelf (Part number:
306-0017). See separate manual for installation instructions.
Connection and Controls
Front
Number: Description
1 USB configuration input
2 RS-232 status indication
3 IO status indication
4 Button for source selection
5 Source selection indication
6 Button for volume adjustment, down
7 Volume level indication
8 Button for volume adjustment, up
9 Power and error indication
1 3 4 52 6 7 8 9
