Chapter
INSTALLATION
NEOFOLD HS
VERSION: NF.HS-07-03/2015-GB 5-5
After installing the stand and tightening the screws, remove the machine from the box.
The sheet holder has four handles (two per side) to make the unit easier to lift and
handle.
Caution: Wear protective gloves. Four people should carry out the hoisting and
transportation operation.

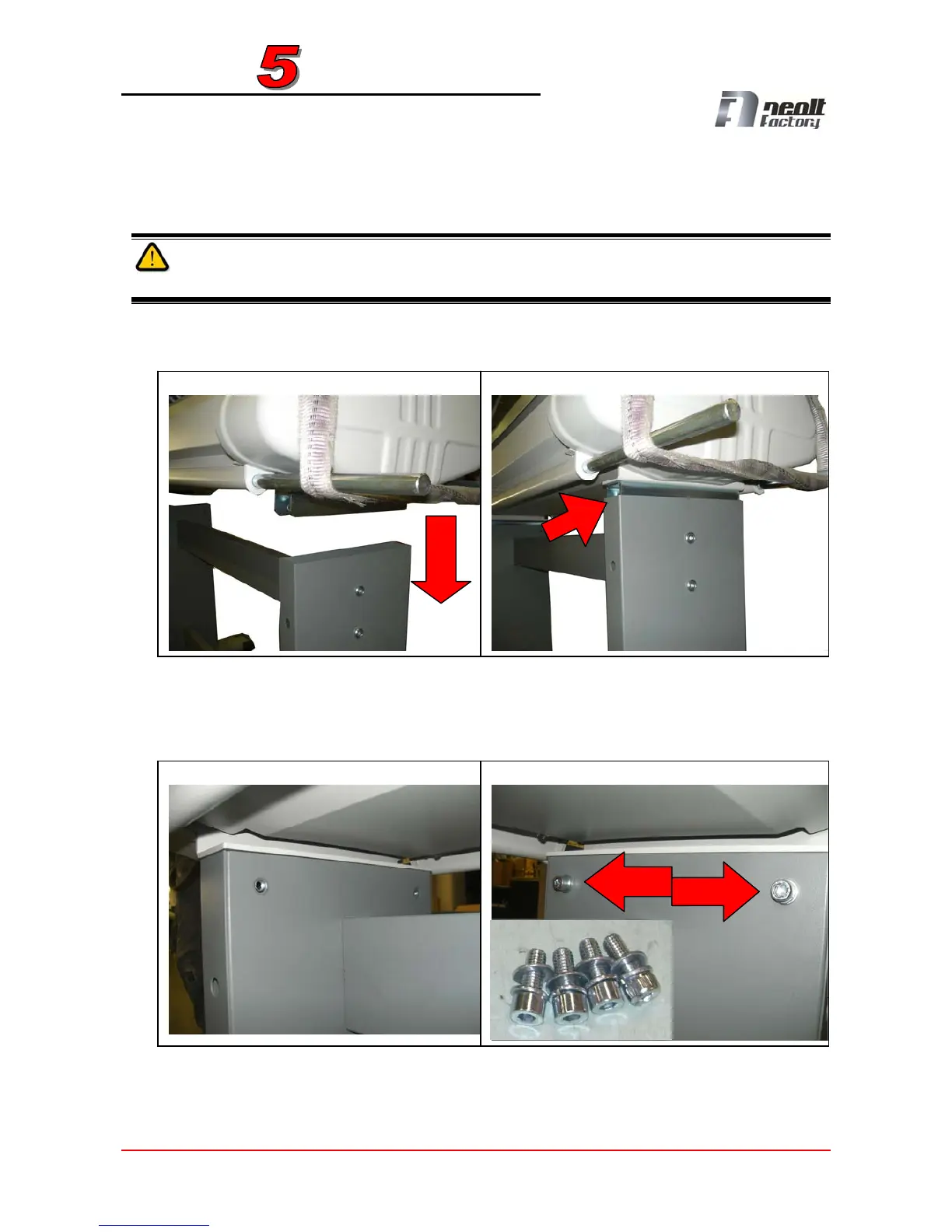

The sheet holder must be positioned above the stand (fig. 5.6) by inserting the U-
shaped plates in the appropriate seats on the shoulders of the stand (fig. 5.7).
Align the holes in the U-shaped plate fixed to the sheet holder and the holes on the
stand (fig. 5.8), fix the machine to the stand using the four supplied screws (two per
side) (fig. 5.9).
Fig. 5.6 Fig. 5.7
Fig. 5.8 Fig. 5.9
