Chapter
INSTALLATION
NEOFOLD HS
VERSION: NF.HS-07-03/2015-GB 5-6

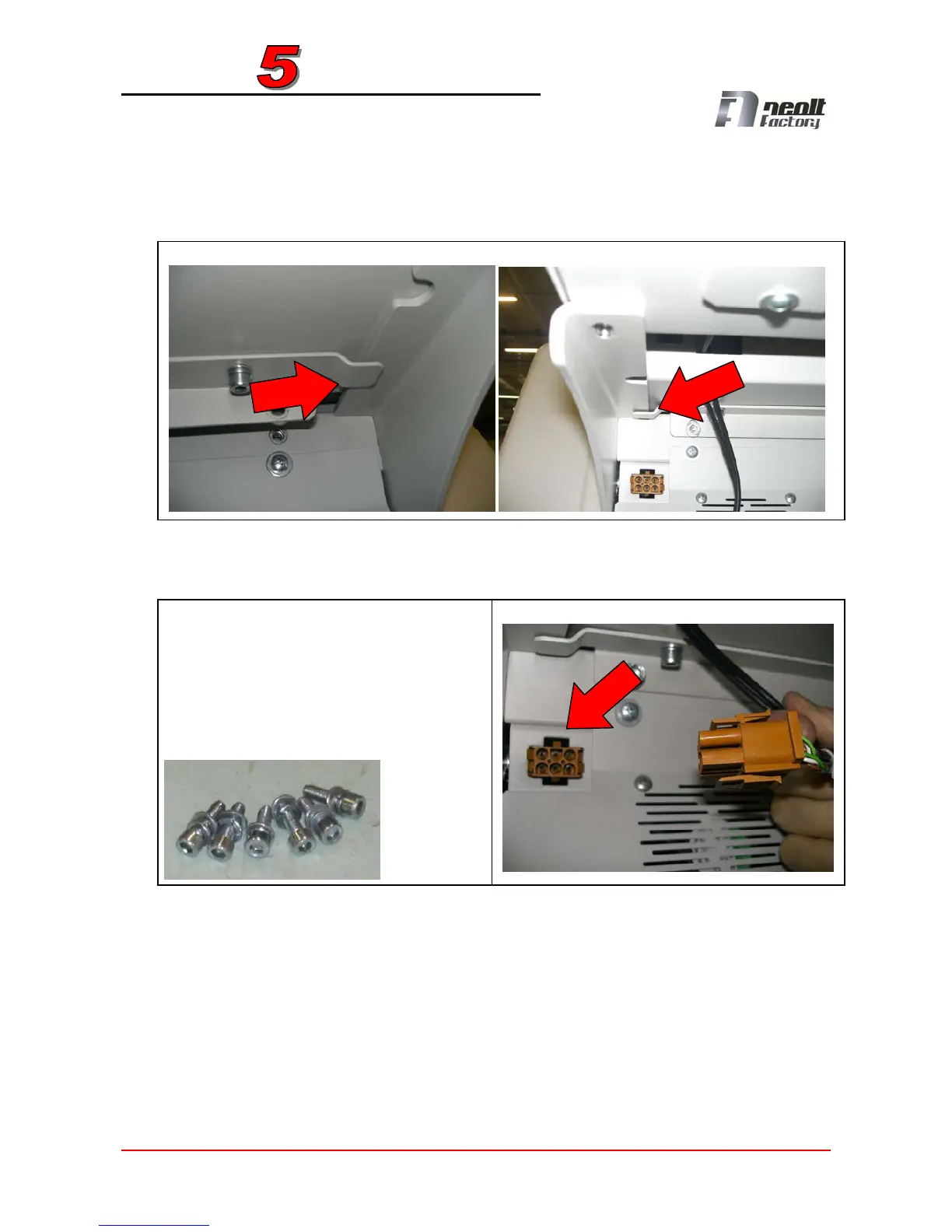

Remove the front work table from the box, slide it out of the protective carton, place it
on the two front guides of the machine and push it towards the machine. Be careful
with the slots placed under the table (fig. 5.10).
Fix the work table to the machine with the supplied screws (fig. 5.11).
Then slide the connector of the sensors of the table in the appropriate seat (fig. 5.12).
Fig. 5.11
Fig. 5.10
Fig. 5.12
