9. Separate the gray
wires, and place in the
slots on each side of
the splice tube.

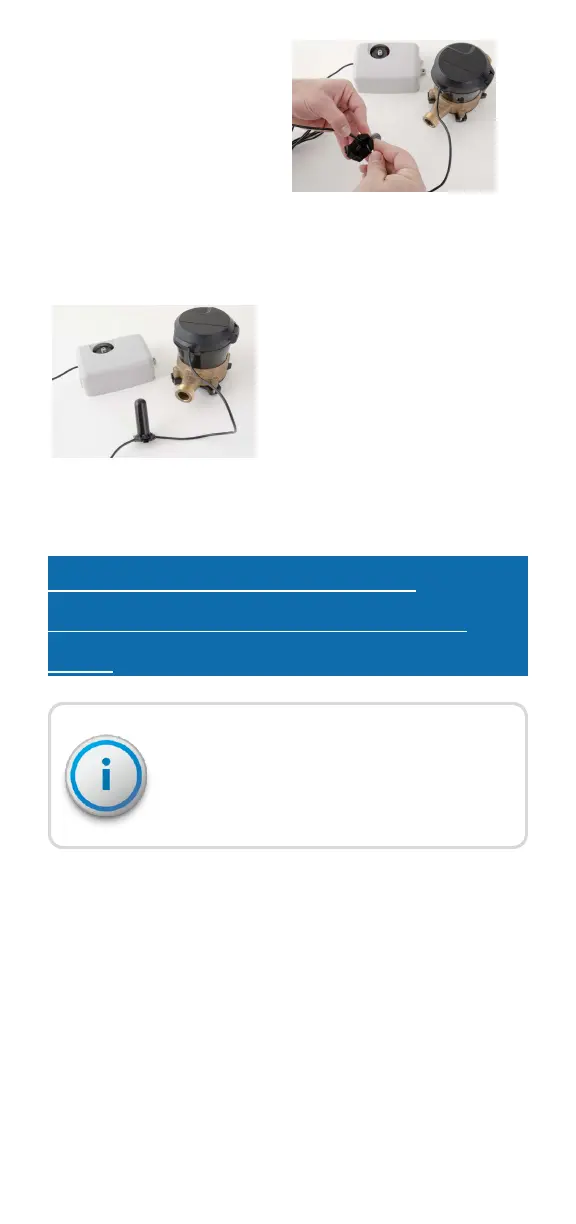

Figure 15: Gray Wires
in Slot
Figure 16: Cover in Place
10. Snap the cover closed
to finish the
installation.
4: Installation Instructions for
Networked Receptacle / Dual Port
MIUs
Enhanced R900 v4 MIUs are not dual
port capable. These instructions only
apply to v3 MIUs.
The Dual Port R900 and R450 MIUs work with
Neptune ProRead™, E-CODER
®
, and ProCoder
registers. Each register must be programmed in RF
Network mode prior to installation.
