7: How to Read
It is important to become familiar with the information
available from the register.

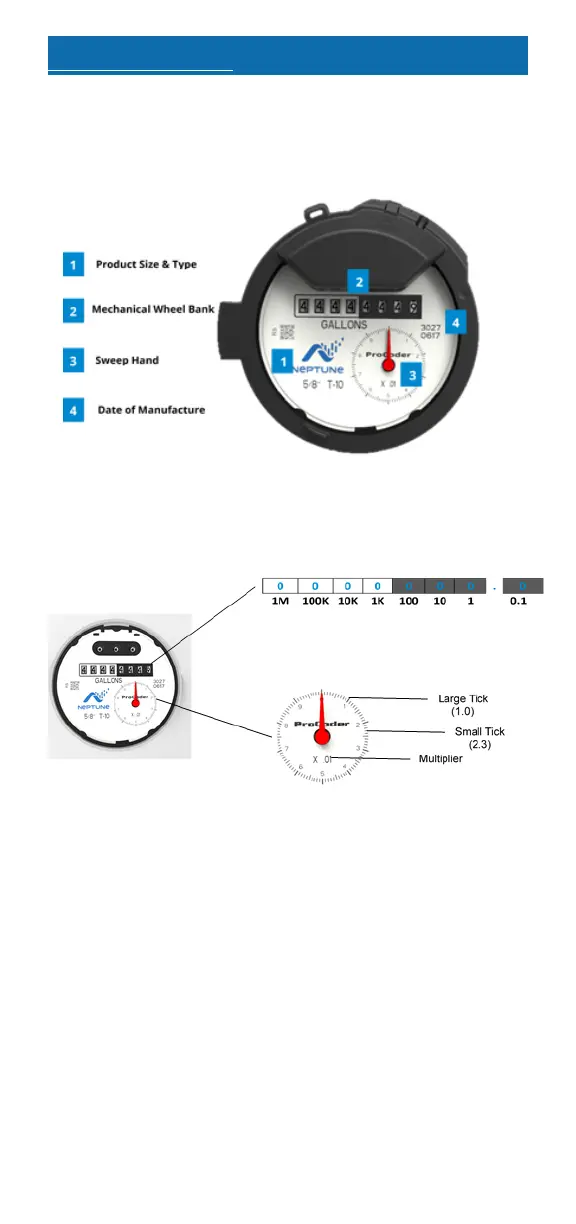

Figure 20: Reading the ProCoder™
Figure 21: ProCoder™ Sweep Hand
The sensitive sweep hand provides a visual
representation of extreme low flows as well as reverse
flow. Depending on the size and type of ProCoder™
register, a specific multiplier is present. This multiplier,
along with the current position of the sweep hand,
provides additional digits of resolution that are
especially useful for testing.
- 13 -
