Do not strip the colored insulation from
the wires or strip and twist the bare
wires prior to inserting in the connector.
Insert the insulated colored wires
directly into the Scotchlok connector.

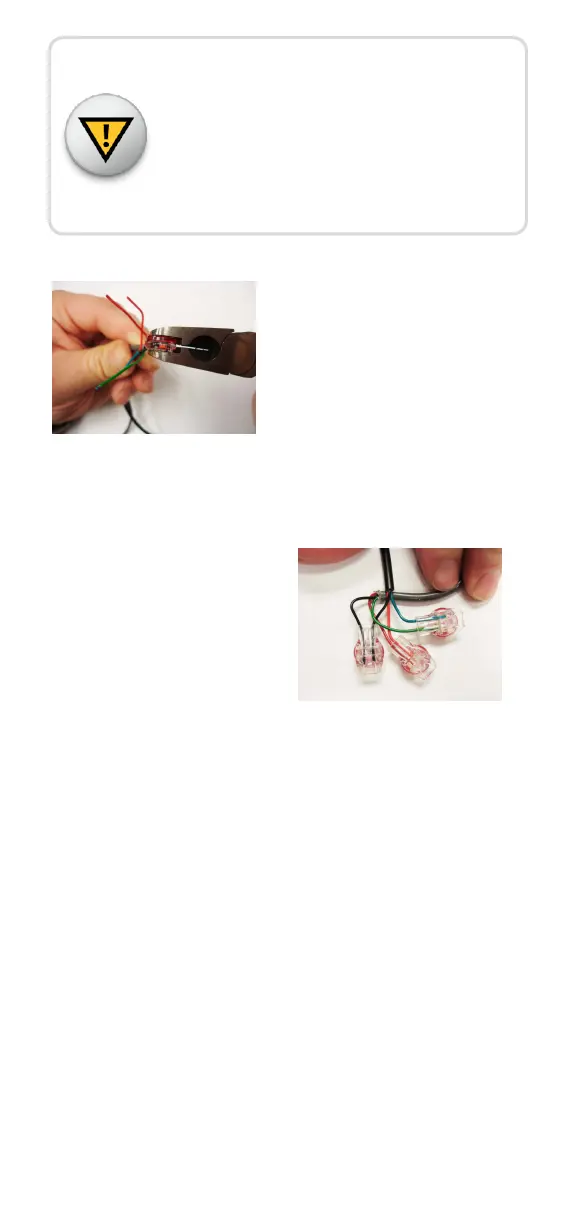

Figure 11: Crimping Tool
3. Place the connector
red cap side down
between the jaws of
the crimping tool.
Refer to Table 2 on
page 12 for part
numbers.
4. Check to ensure that
the wires are still fully
seated in the connector
before crimping the
connector. Figure 12
illustrates improper
connections due to
wires not being fully
seated.
Figure 12: Improper
Connections
5. Squeeze the connector firmly with the proper
crimping tool until you hear a pop and gel oozes
out the end of the connector.
6. Repeat steps 1 through 5 for each color wire. See
Table 1 on page 7 for the wiring configuration to
connect MIUs to the ProCoder.
- 6 -
