Neptune ProCoder User Manual

2: Wiring Inside Set Version
To run a three-conductor cable from the ProCoder™
register to the MIU, complete the following steps.
1. Connect the three-conductor wire to the encoder
register’s terminals as described in the
manufacturer’s instructions, using this color code:
l Black / B
l Green / G
l Red / R
2. Remove the terminal cover with a flat-head screw
driver.

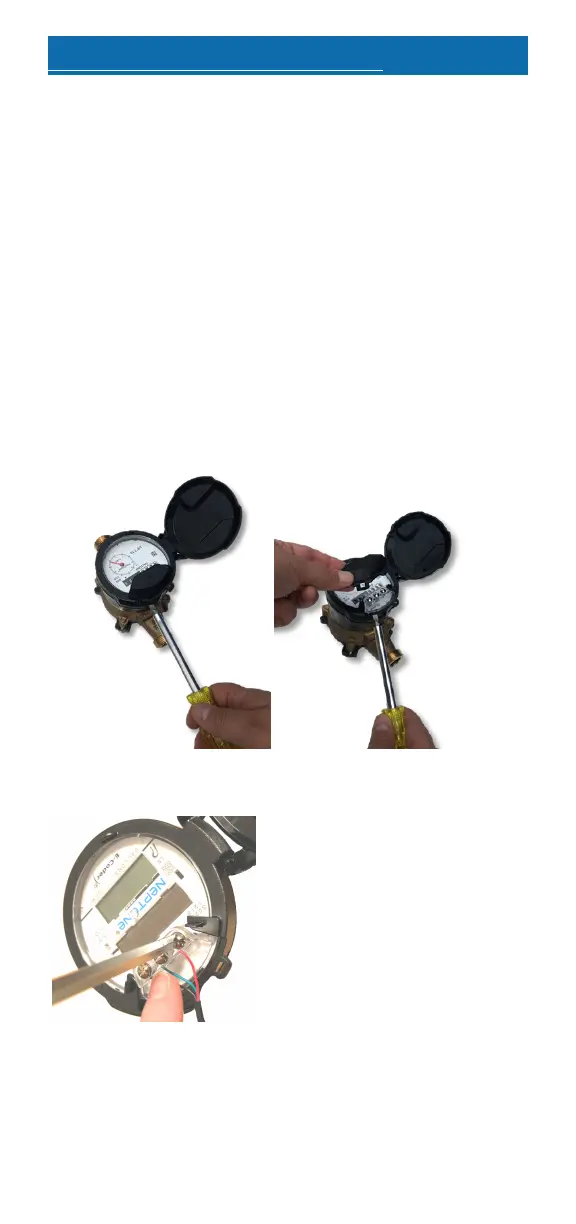

Figure 2: Removing the Terminal Cover
Figure 3: Wiring with
Proper Color Wire
3. Wire the encoder
register with the
proper colors.
4. Test the wiring to
verify the read.
- 2 -
