MIU Wire Color/
Encoder Terminal
MIU Type
Black / B Green / G Red / R l R900
l R450
Black / G Green / R Red / B Sensus
Black / B White / G Red / R Itron
Black / G White / R Red / B Aclara
Black / G Green / B Red / R Elster
Black / G Green / R Red / B Badger

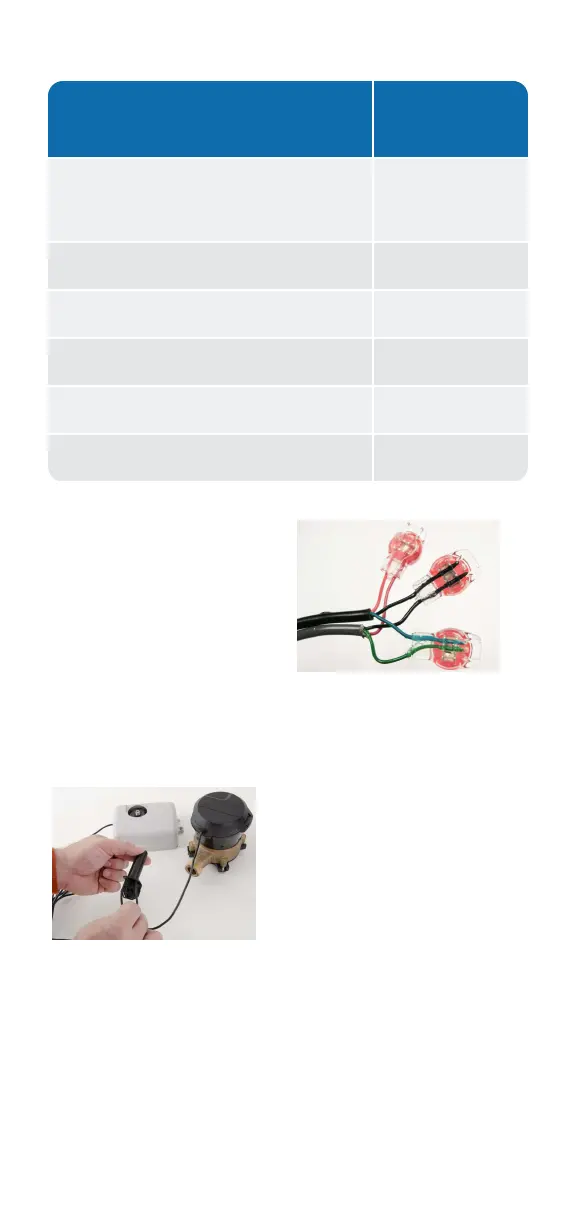

Table 1: Color Codes for Wires
7. After you connect all
three color wires, read
the encoder register to
ensure proper
connections, and the
receptacle / MIU is
functioning properly.
Figure 13: Three Color
Wires Connected
Figure 14: Splice Tube
8. Take all three
connected Scotchloks
and push them into
the splice tube until
fully covered by the
silicone grease.
- 7 -
