5: Wiring Networked Registers
Complete the following steps to wire networked
registers.
1. Connect each color wire with the appropriate color
wire from the pigtail and both registers, until all
three colors have been successfully connected. See
Figure 19.

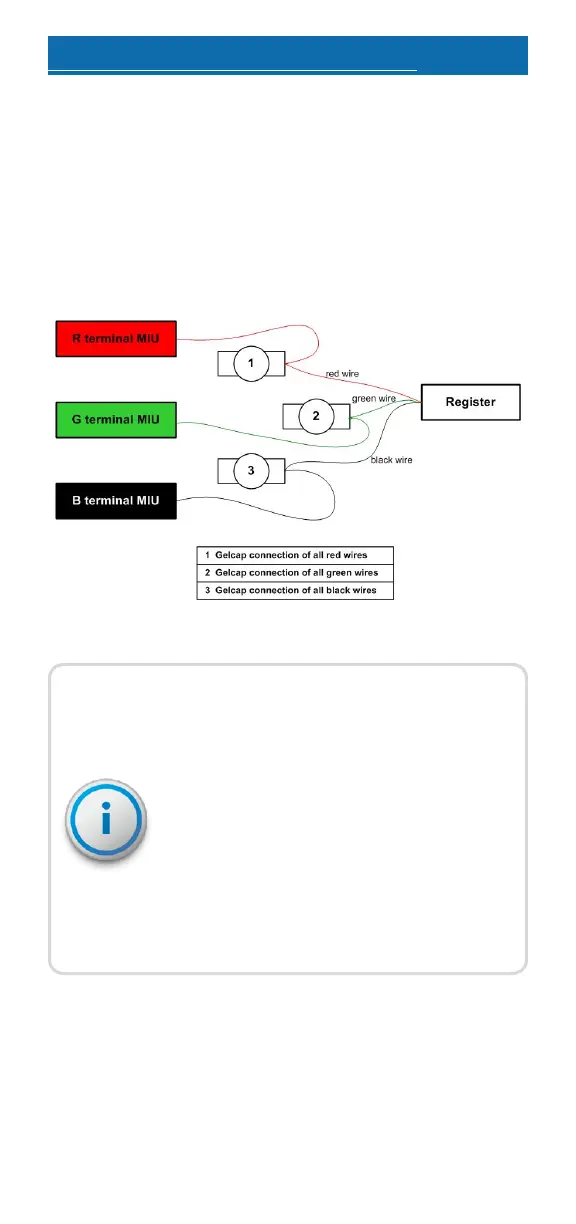

Figure 19: Interconnection of Like Terminals
l
Remove any bare or non-insulated
wire. Make sure that you only insert
insulated wires into the splice
connector.
l Observe proper polarity when wiring
the registers so that all terminals are
interconnected with wires of the
same color: red, black, or green.
2. Proceed to "How to Read" on page13.
- 11 -
