Neslab HX Series User Manual

- 29 -

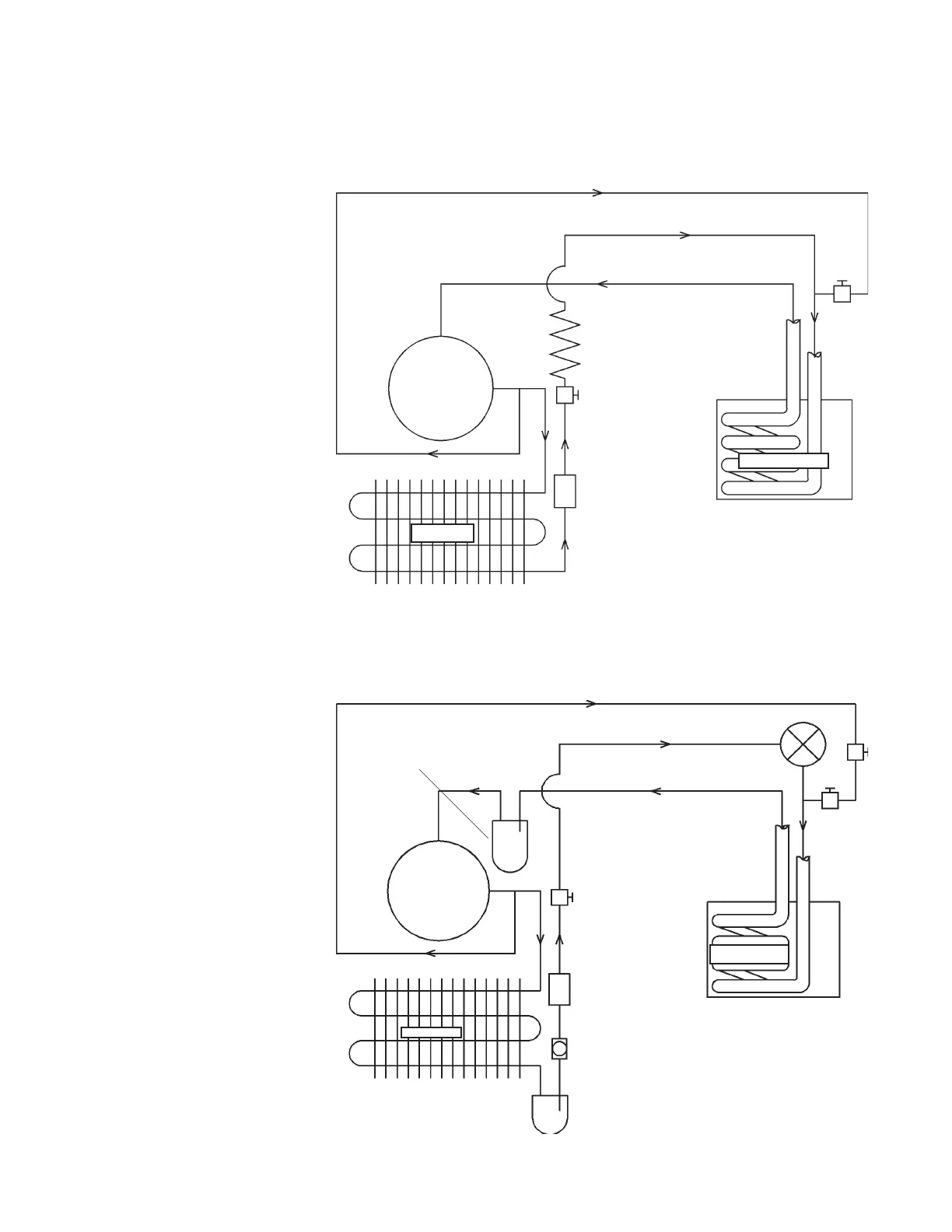

Condenser
Accumulator
TXV
RefrigerationRefrigeration
RefrigerationRefrigeration
Refrigeration
Flow DiagramFlow Diagram
Flow DiagramFlow Diagram
Flow Diagram
(HX-200 through HX-750)(HX-200 through HX-750)
(HX-200 through HX-750)(HX-200 through HX-750)
(HX-200 through HX-750)
Compressor
Capillary Tube
Hot Gas
Bypass
Valve
Reservoir
Evaporator Coil
Dryer
Condenser
Solenoid Valve (NC)
RefrigerationRefrigeration
RefrigerationRefrigeration
Refrigeration
Flow DiagramFlow Diagram
Flow DiagramFlow Diagram
Flow Diagram
(HX-75 through HX-150)(HX-75 through HX-150)
(HX-75 through HX-150)(HX-75 through HX-150)
(HX-75 through HX-150)
Section IX DiaSection IX Dia
Section IX DiaSection IX Dia
Section IX Dia
gramsgrams
gramsgrams
grams
Dryer
Sightglass
Solenoid valve (NC)
Receiver
Compressor
Evaporator coil
Reservoir
Solenoid
valve
Hot gas
bypass
valve

Neslab HX Series Specifications

General

Pump Type	Centrifugal
Temperature Stability	±0.1°C
Fluid Compatibility	Water, water/glycol mixtures
Safety Features	Over-temperature protection
Display	LCD
Refrigerant	R-404A
Dimensions	Varies by model
Weight	Varies by model
