Neslab HX Series User Manual

- 7 -
Cooling CapacityCooling Capacity
Cooling CapacityCooling Capacity
Cooling Capacity
Cooling capacity will vary depending on fluid temperature, ambient
temperature, and cooling fluid.

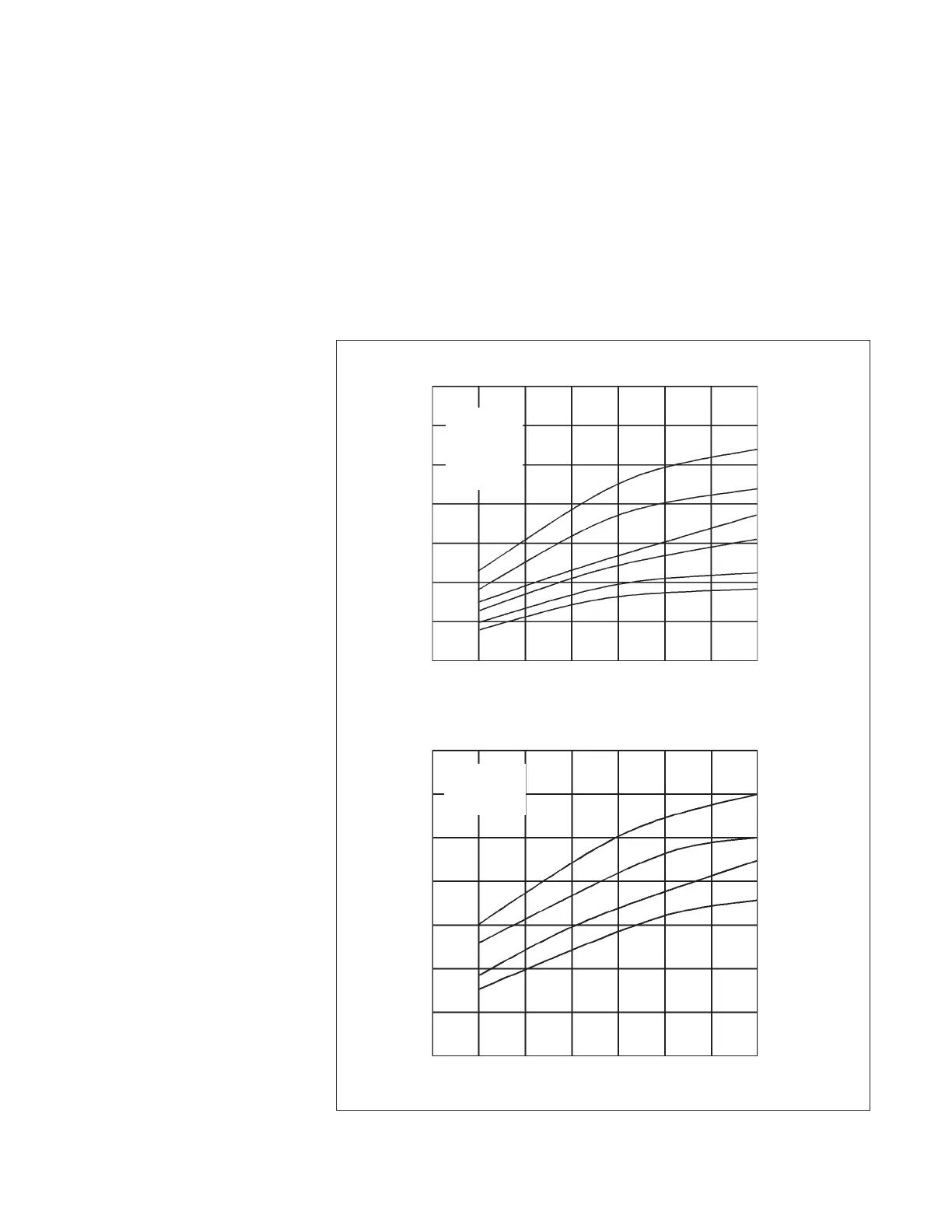

Cooling capacities for models HX-75 through HX-750 were obtained under
the following conditions:
1. air-cooled unit operating at +20°C (+68°F) ambient temperature.
2. cooling fluid with specific heat of 1.0 was used for fluid temperatures from
+5°C to +35°C.
Fluid Temperature (°C)
Fluid Temperature (°C)
Cooling Capacity (Watts)
Cooling Capacity (Kilowatts)
7000
6000
5000
4000
3000
2000
1000
5 1015 202530 35
A=HX-150, 60Hz
B=HX-150, 50Hz
C=HX-100, 60Hz
D=HX-100, 50Hz
E=HX-75, 60Hz
F=HX-75, 50Hz
A
B
C
D
E
F
A=HX-300, 60Hz
B=HX-300, 50Hz
C=HX-200, 60Hz
D=HX-200, 50Hz
14
12
10
8
6
4
2
5 1015 202530 35
D
C
B
A
HX-75, 100, & 150HX-75, 100, & 150
HX-75, 100, & 150HX-75, 100, & 150
HX-75, 100, & 150
HX-200 & 300HX-200 & 300
HX-200 & 300HX-200 & 300
HX-200 & 300

Neslab HX Series Specifications

General

Pump Type	Centrifugal
Temperature Stability	±0.1°C
Fluid Compatibility	Water, water/glycol mixtures
Safety Features	Over-temperature protection
Display	LCD
Refrigerant	R-404A
Dimensions	Varies by model
Weight	Varies by model
