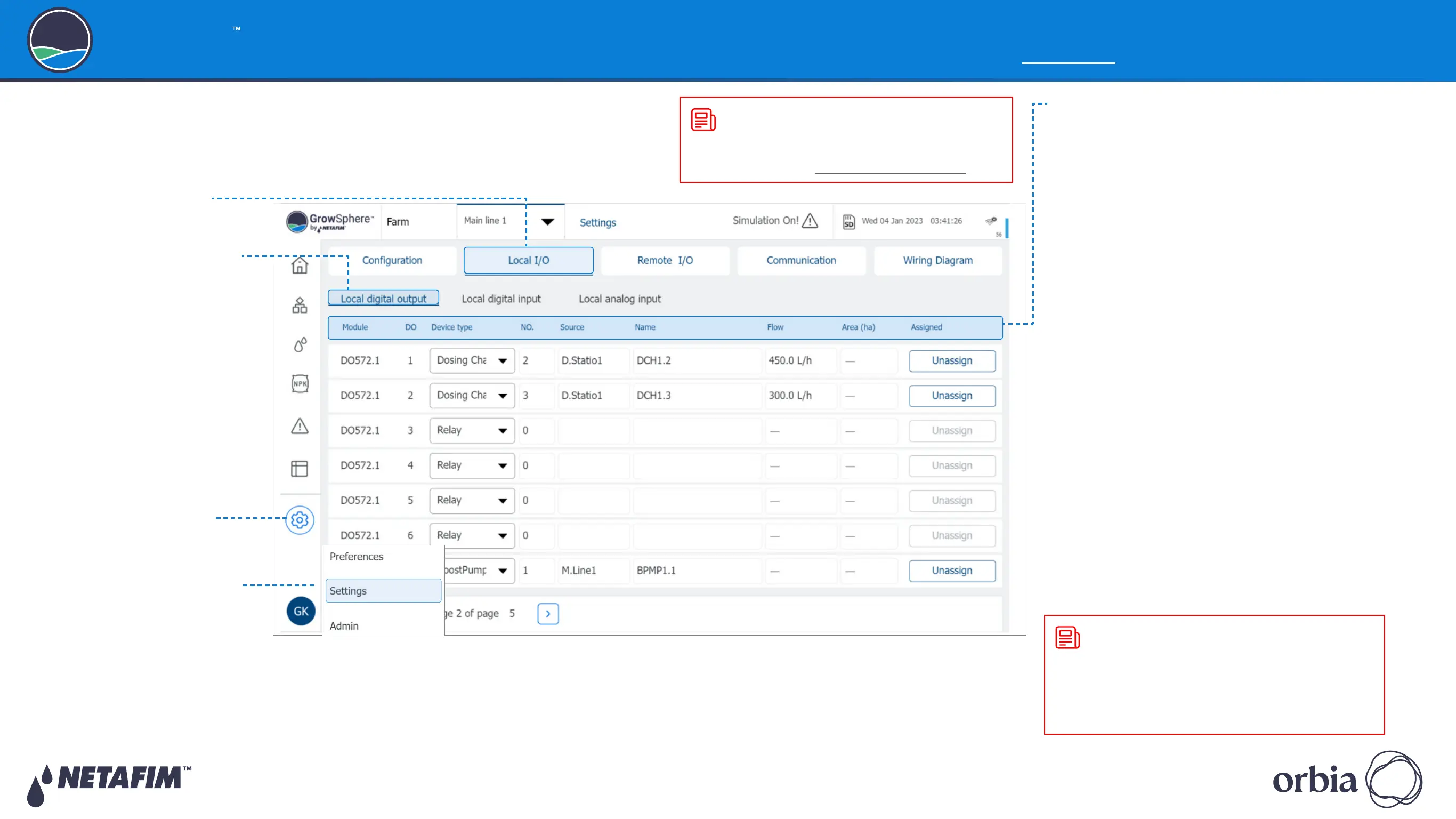

5.4.7 Allocating Local Digital Outputs
The system displays all local digital outputs according to the controller configuration.
Perform the following steps to allocate the relevant device to the digital output that it is
connected to:
z
Module: The controller module name and slot
number to which the device is connected.
z
DO (Digital Output): The module's output port
number to which the device is connected.
z
Device Type: Options include main valve, valve,
pump, dosing channel, and booster pump.
z
Device #: This is the device number as
appears under the Configuration tab. This
field allows reordering the assignment of the
devices.
z
Source: Irrigation line to which the device is
connected.
z
Name: The system set a default name. It is
suggested to type here a descriptive name of
the device.
z
Flow: Device's nominal flow rate.
z
Area (ha): Area (in hectares) of the irrigation
block that the valve is irrigating.
z
Assigned: Indicates if the device was assigned
to a Controller module.
If the device is disabled the device line appears
gray.
5-. Define the digital output settings:
3. Tap the Local I/O tab
4. Tap the Digital output tab
NOTE
The module name includes also the slot number
where the module is installed. This is helpful
when more than one module of the same type are
installed in the controller.
NOTE
If the system contains remote I/O, first configure
the remote I/O, see Configuring Remote I/O.
1. Tap the Configuration
button
2. Select Settings and type
your credentials
