Item
A flat-blade screwdriver
Anti-static protection
A flashlight
Things to know - More details about cables and SFPs
The figures in this topic display the fiber-optic cables, copper cables, SFP transceivers, SAS cables
with a SFF-8644 connection, and SAS cables with a SFF-8088 connector. The table references the
SFP transceivers that apply if you are using Fibre Channel host connections.
Note: Your SFP transceivers and cables might look slightly different from the ones shown. The
differences do not affect the performance of the SFP transceivers.
The controller-drive tray supports SAS drive connections and SAS, Fibre Channel, or iSCSI host
connections.
Warning: (W03) Risk of exposure to laser radiation – Do not disassemble or remove any part of
a Small Form-factor Pluggable (SFP) transceiver because you might be exposed to laser radiation.

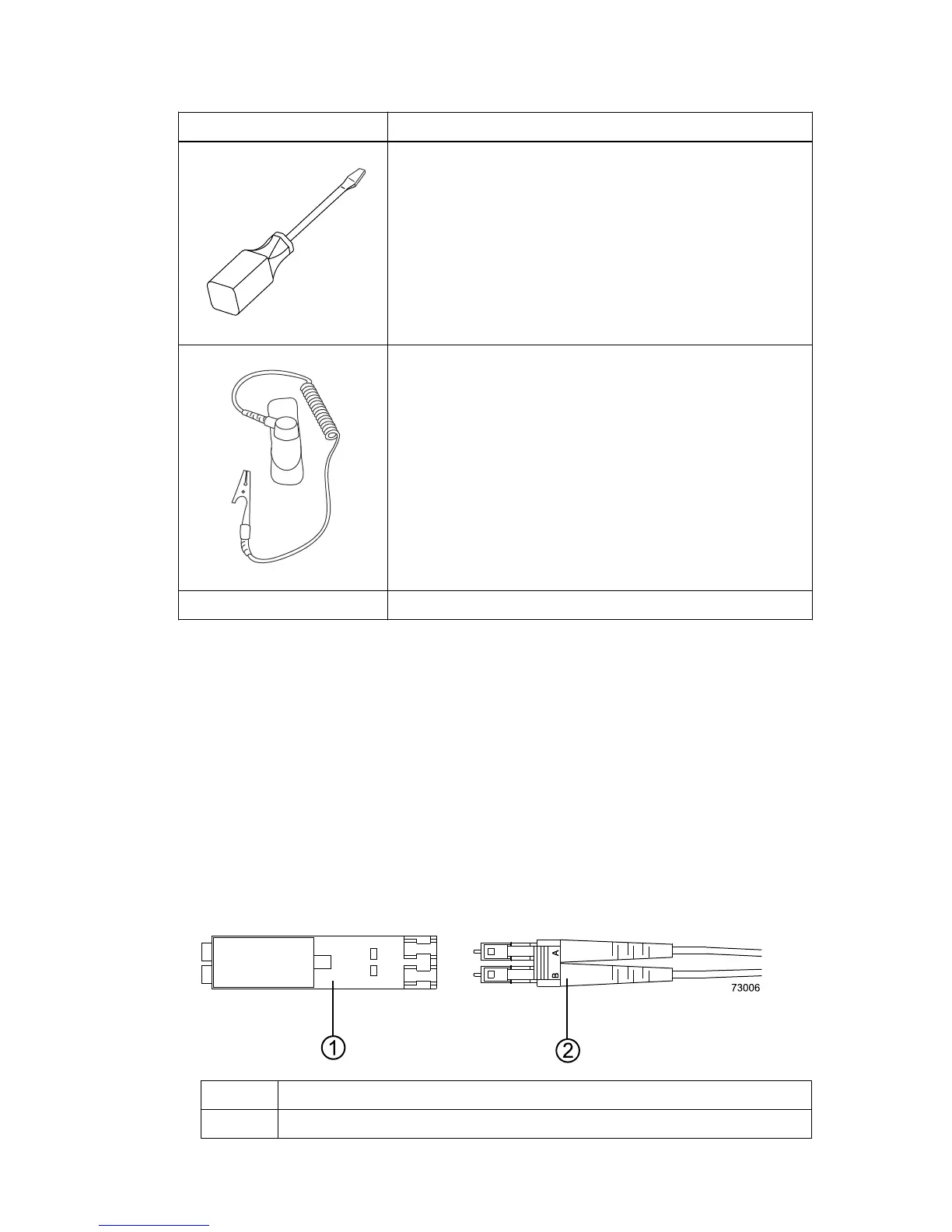

• Fiber-optic cable connection
1
Active SFP transceiver
2 Fiber-optic cable
• 10-Gb/s iSCSI cable connection
Step 1 - Preparing to install a controller-drive tray |
15
