Vendor Model Version/Data Rate*
Finisar FTLF 8521-3 1 Gb/s
FTLF8528P2BCV-LS 8 Gb/s
FTLX8571D3BCL-LS 10 Gb/s
FTLF1429P3BNV 16 Gb/s
JDSU PLRXPL-VC-SH4-23-NA 8 Gb/s
PLRXPL-VC-SH4-23-N 8 Gb/s
PLRXPL-SC-S43-22-N 10 Gb/s
PLRXPL-SC-S43-NAe 10 GbE
Molex 74741-0005 1 Gb/s
Opnext TRS2001EN-001 10 Gb/s
*All SFP transceivers can connect and run at lower speeds, even though this is not optimal.
Things to know - Taking a quick glance at the hardware in a
controller-drive tray configuration
Each 12-drive or 24-drive tray in a storage array must have a minimum of two drives for proper
operation, while each 60 drive tray must have a minimum of 20 drives with four drives across the
front row of each drawer for proper operation.
All 60-drive trays have a limit of five solid state drives (SSDs) per drawer. If you exceed this limit for
SSDs in a particular drawer, the power source in the drawer is likely to receive too much current and
could fail.
This section provides an overview of hardware described in this document. For specific details about
how LEDs operate, see
Step 10 - Turning on the power and checking for problems in a controller-
drive tray
on page 97.
• The top of the controller-drive tray is the side with labels.
• The configuration of the host ports might appear different on your system depending on which
host interface card configuration is installed.

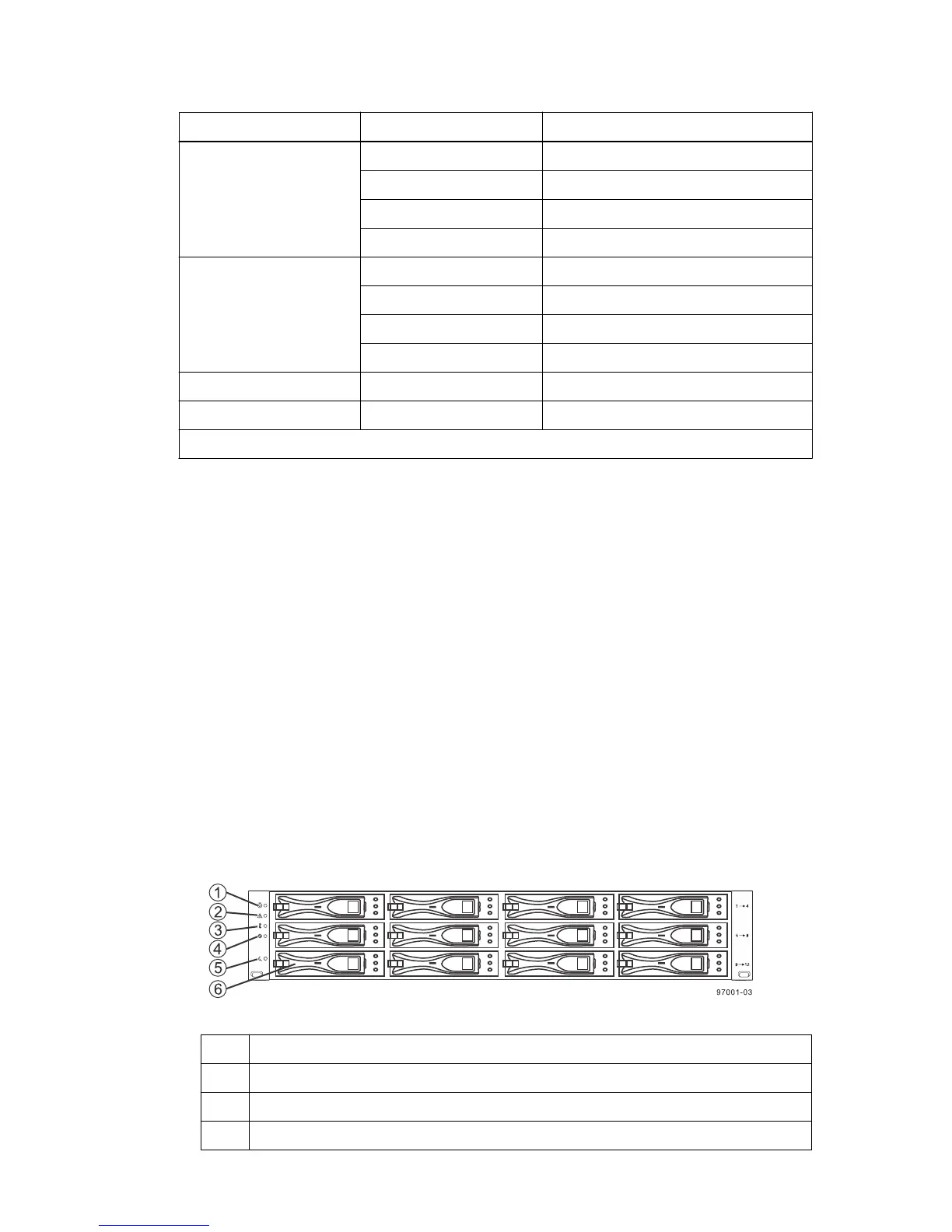

• E2712 controller-drive tray – Front view
1
End Cap Locate LED
2 End Cap Service Action Required LED
3 End Cap Over-Temperature LED
4 End Cap Power LED
