NetApp E2712 User Manual

5 End Cap Standby Power LED
6 Drive canister

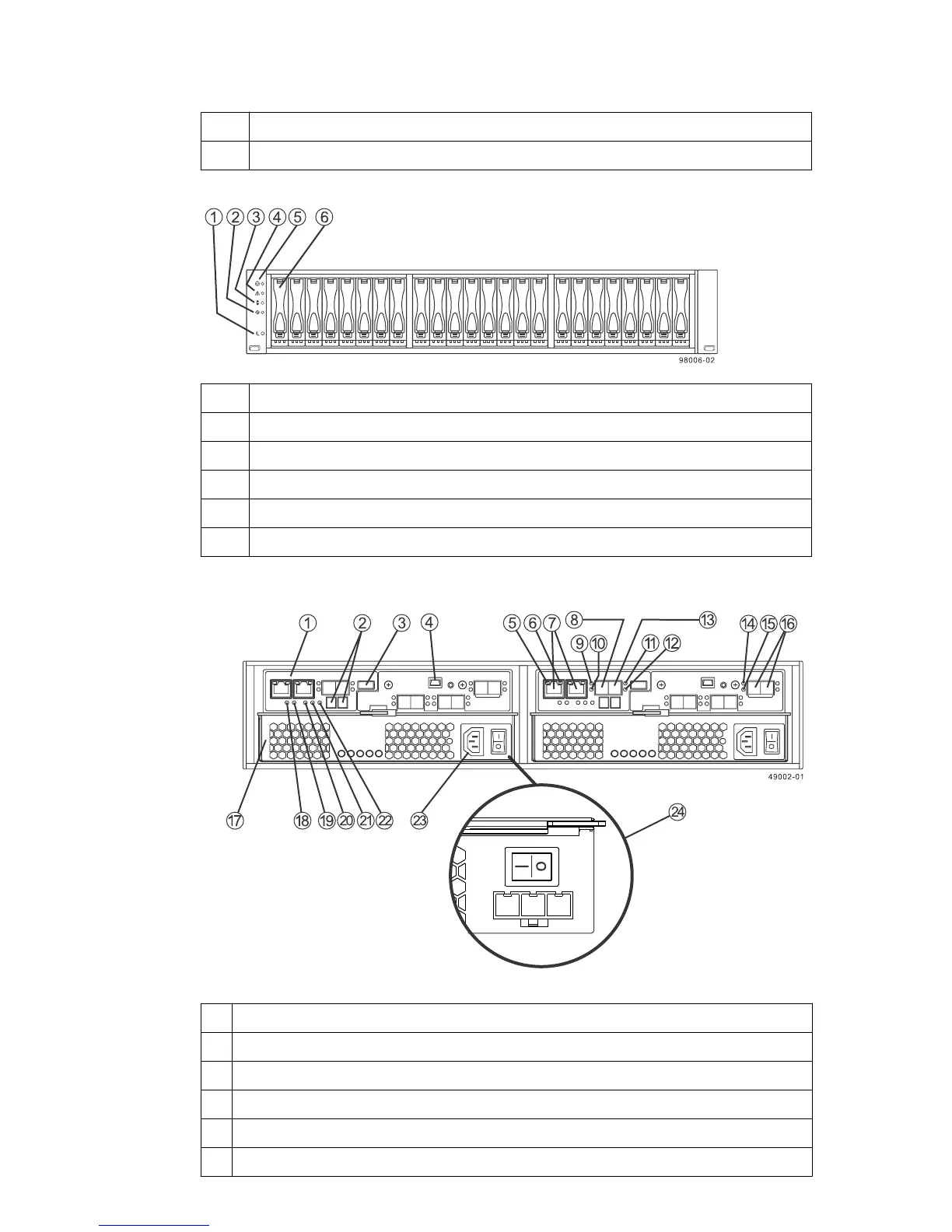

• E2724 controller-drive tray – Front view
1 End Cap Standby Power LED
2 End Cap Power LED
3 End Cap Over-Temperature LED
4 End Cap Service Action Required LED
5 End Cap Locate LED
6 Drive canister
• E2712 controller-drive tray or E2724 controller-drive tray – Rear view
1
Controller canister
2 Seven-segment display
3 USB port
4 Serial port
5 1GbE Ethernet Management Port 1 Link Rate LED
6 1GbE Ethernet Management Port 2 Link Active LED
