7 1GbE Ethernet Management Port 1 and Port 2 (Port 2 is reserved for technical support)
8 SFF-8644 SAS Host Channel 1 (Ch1)
9 SAS Host 1 Link Up LED
10 SAS Host 1 Link Fault LED
11 SAS Host 2 Link Up LED
12 SAS Host 2 Link Fault LED
13 SFF-8644 SAS Host Channel 2 (Ch2)
14 SAS Expansion Link 1 Fault LED
15 SAS Expansion Link 1 Up LED
16 SFF-8644 SAS Drive Expansion Port 1 and Port 2
17 Power-fan canister
18 Battery Service Action Required LED
19 Battery Charging LED
20 Controller Service Action Allowed LED
21 Controller Service Action Required LED
22 Cache Active LED
23 AC power connector and switch
24 DC power connector and switch

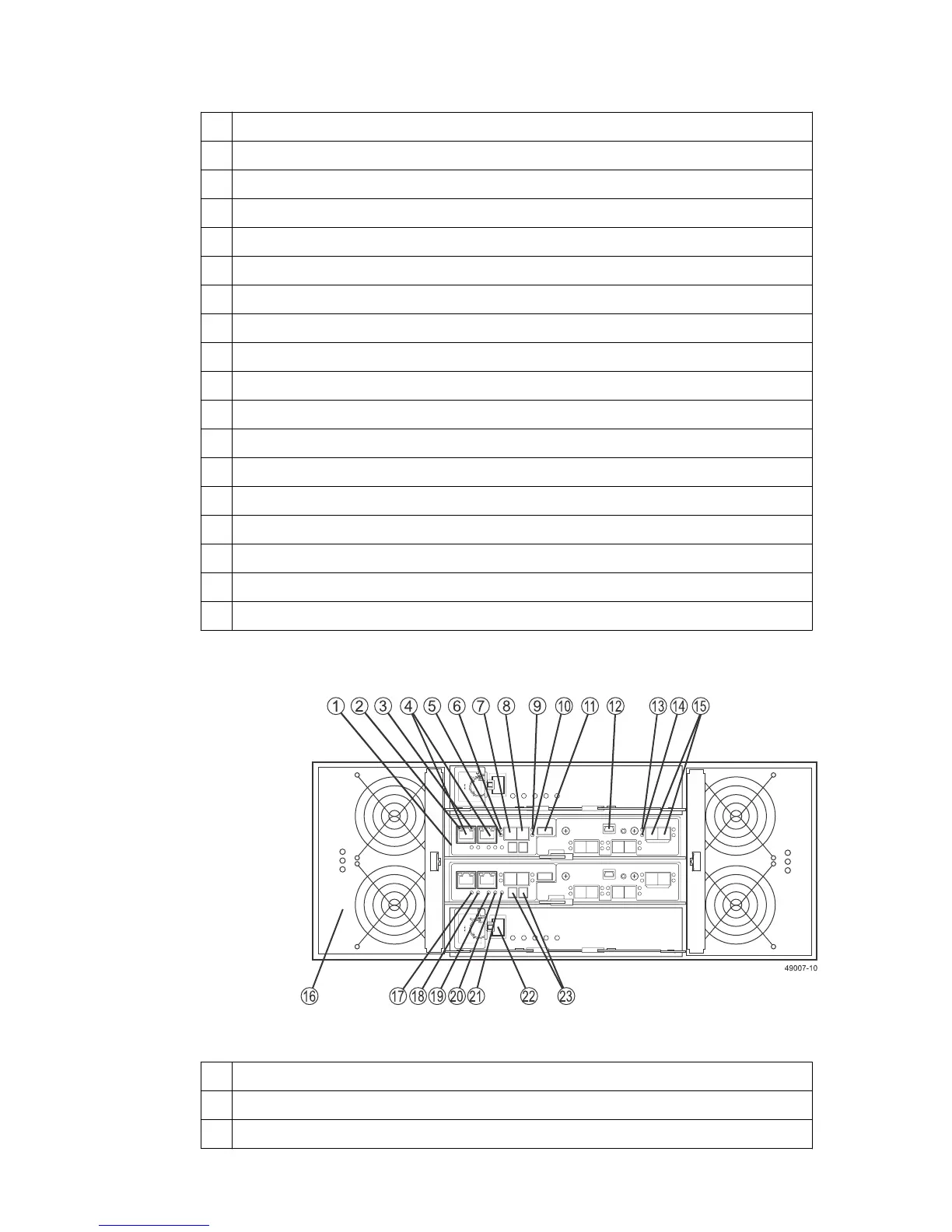

• E2760 controller-drive tray – Rear view
1
Controller canister
2 1GbE Ethernet Management Port 1 Link Rate LED
3 1GbE Ethernet Management Port 2 Link Active LED
Step 1 - Preparing to install a controller-drive tray | 19
