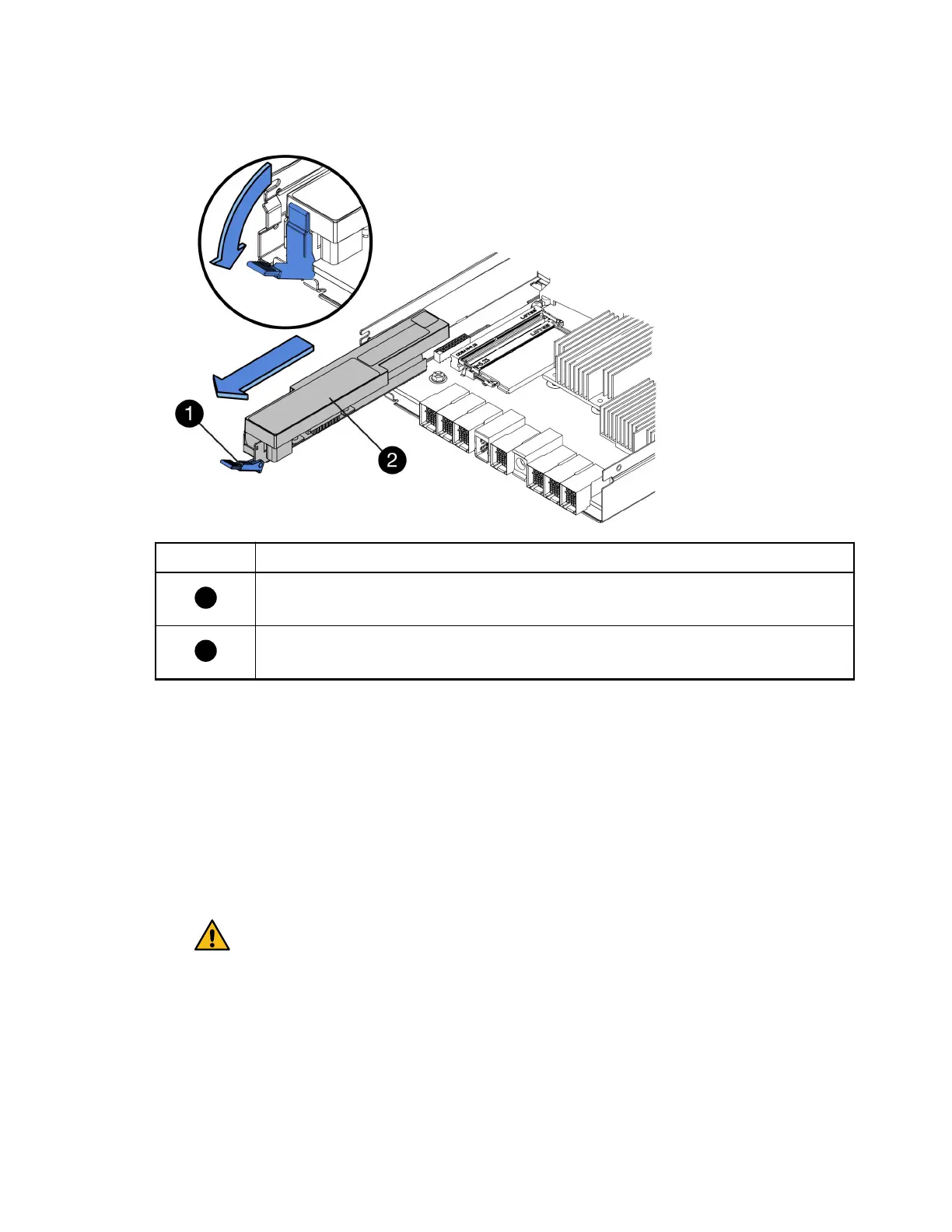

Item Description
Battery release latch
Battery
d. Lift up on the battery, and slide it out of the controller.
e. Remove the cover from the replacement controller.
f. Orient the replacement controller so that the slot for the battery faces toward you.
g. Insert the battery into the controller at a slight downward angle.
You must insert the metal flange at the front of the battery into the slot on the bottom of the
controller, and slide the top of the battery beneath the small alignment pin on the left side of
the controller.
h. Move the battery latch up to secure the battery.
When the latch clicks into place, the bottom of the latch hooks into a metal slot on the
chassis.
i. Turn the controller over to confirm that the battery is installed correctly.
Attention: Possible hardware damage – The
metal flange at the front of the battery must be
completely inserted into the slot on the controller
(as shown in the first figure). If the battery is not
installed correctly (as shown in the second figure),
the metal flange might contact the controller
board, causing damage.
• Correct – The battery's metal flange is
completely inserted in the slot on the
controller:
Hardware Installation and Maintenance Guide for SG5700 Appliances 75
Maintaining the SG5700 appliance
