NetComm Wireless NTC-30
WV 3G Outdoor Router with Voice
www.netcommwi
reless.com
Ver 1.6
Hardware overview
LED indicators

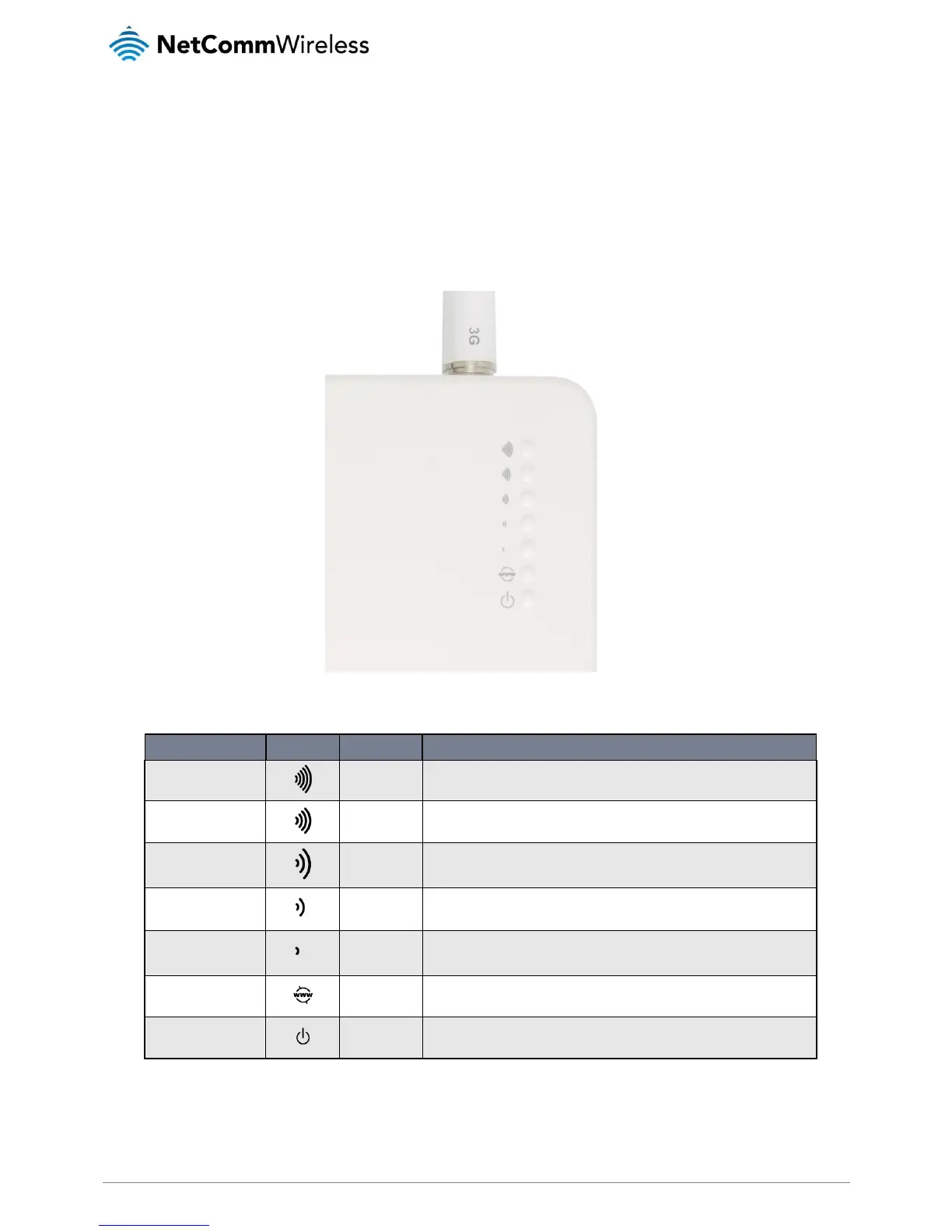

The NTC-30WV uses 7 LEDs to display the current system and connection status.
Figure 1 - NTC-30W
V LED Indicators
LED INDICATOR
ICON
COLOUR
DEFINITION
High Signal
Green
High 3G Signal strengt
h available.
Medium to High Sign
al
Green
Medium to High 3G Si
gnal strength available.
Medium Signal
Green
Medium 3G Signal str
ength available.
Low to Medium Signal
Green
Low to Medium 3G Si
gnal strength avail
able.
Low Signal
Green
Low 3G Signal streng
th available.
Internet
Green
Router is currently conn
ected to the Internet.
Power
Red
Unit is powered on.
Table 3 - LED Indicat
ors
9
11
Table of Contents
Default Chapter
3
Table of Contents
3
Overview
6
Introduction
6
Target Audience
6
Professional Installation Instructions
6
Prerequisites
7
Notation
7
Product Introduction
8
Product Overview
8
Package Contents
8
Product Features
9
Hardware Overview
10
LED Indicators
10
Physical Dimensions
12
Interfaces
14
Implementation and Deployment Scenario
16
Installation and Configuration of the NTC-30WV
17
Hardware Installation
17
Powering the Router Via DC Power Supply
17
Installing the Router
17
Powering the Router Via a Power over Ethernet (Poe) Cable (Optional)
18
Captive Power Terminal Block
18
Connecting Wirelessly
19
Advanced Configuration
20
Status
21
Event Notification
22
Networking
24
Data Connection
24
Connecting to the Mobile Broadband Network
25
Manually Configuring a Connection Profile
25
Confirming a Successful Connection
27
Transparently Bridging the Mobile Broadband Connection Via Pppoe
27
Operator Settings
29
Operator Settings
30
SIM Security Settings
30
Unlocking a PIN Locked SIM
30
Enabling/Disabling SIM PIN Protection
32
Changing the SIM PIN Code
32
Unlocking a PUK Locked SIM
33
Lan
34
LAN Configuration
34
Dhcp
35
Wireless Settings
38
AP Basic
38
AP Advanced
39
AP MAC Filtering
40
AP Station Info
40
AP Hotspot
41
Client Configuration
44
Wireless Distribution System (WDS)
46
What Is WDS
46
Configuring WDS
46
Ethernet LAN/WAN
51
Interface Assignment
51
WAN Configuration
52
WAN Failover
53
Link Monitor
54
Ping Monitor
54
Routing
57
Static
57
Rip
59
Redundancy (VRRP) Configuration
60
Port Forwarding
61
Dmz
63
Router Firewall
64
MAC / IP / Port Filtering
65
Creating a MAC / IP / Port Filtering Rule
65
Vpn
67
Ipsec
67
Configuring an Ipsec VPN
67
Openvpn
70
Configuring an Open VPN Server
70
Openvpn Server
70
Configuring an Openvpn Client
74
Configuring an Openvpn P2P Connection
76
PPTP-Client
77
Configuring the PPTP Client
77
GRE Tunnelling
79
Configuring GRE Tunnelling
79
Services
81
Dynamic DNS
81
Network Time (NTP)
82
Configuring Timezone Settings
82
Configuring NTP Settings
82
Data Stream Manager
83
Endpoints
83
Streams
89
Data Stream Applications
91
Padd
92
Remote Management
93
Snmp
93
Tr-069
95
OMA Lightweight M2M Configuration
97
Auto Dial Configuration
99
Ussd
100
Voice
101
Event Notification
102
Notification Configuration
102
Destination Configuration
104
Email Settings
105
SMS Messaging
106
Setup
106
SMS Forwarding Configuration
107
Redirect to Mobile
107
Redirect to TCP / UDP Server Address
107
New Message
108
Inbox / Sent Items
109
Diagnostics
110
SMS Diagnostics and Command Execution Configuration
110
White List for Diagnostic or Execution SMS
112
Sending an SMS Diagnostic Command
113
Types of SMS Diagnostic Commands
113
SMS Acknowledgment Replies
113
SMS Command Format
114
List of Basic Commands
115
List of Get/Set Commands
116
List of Basic RDB Variables
116
Network Scan and Manual Network Selection by SMS
117
SMS Diagnostics Examples
119
System
122
Log
122
System Log
122
Ipsec Log
122
Event Notification Log
123
System Log Settings
124
System Configuration
126
Settings Backup and Restore
126
Upload
127
Updating the Firmware
127
Package Manager
130
Administration
131
Administration Settings
131
HTTPS Key Management
133
SSH Key Management
136
LED Operation Mode
138
Watchdogs
139
Configuring Periodic Ping Settings
141
Disabling the Periodic Ping Reset Function
141
Configuring a Periodic Reboot
141
Reboot
142
Logging out
142
Appendix A: Tables
143
Appendix B: Default Settings
145
Restoring Factory Default Settings
146
Using the Web-Based User Interface
146
Using the Reset Button on the Interface Panel of the Router
146
Appendix C: Recovery Mode
147
Accessing Recovery Mode
147
Status
148
Log
148
Application Installer
149
Settings
149
Reboot
149
Appendix D: HTTPS - Uploading a Self-Signed Certificate
150
Appendix E: Obtaining a List of RDB Variables
152
Technical Data
153
Additional Product Information
154
Using the NTC-30WV to Make and Receive Telephone Calls
154
Handset Requirements
154
Maximum REN Loading
154
How to Place a Call
154
How to Receive a Call
154
Answering an Incoming Call When on a Call
154
Accessing Voicemail
154
Call Feature Codes
155
List of Mobile Broadband Service Provider Apns
157
Legal & Regulatory Information
158
Product Warranty
159
Limitation of Liability
159
Contact
160
