To create an endpoint:
Click the +Add button on the right side of the page. A pop-up window appears.

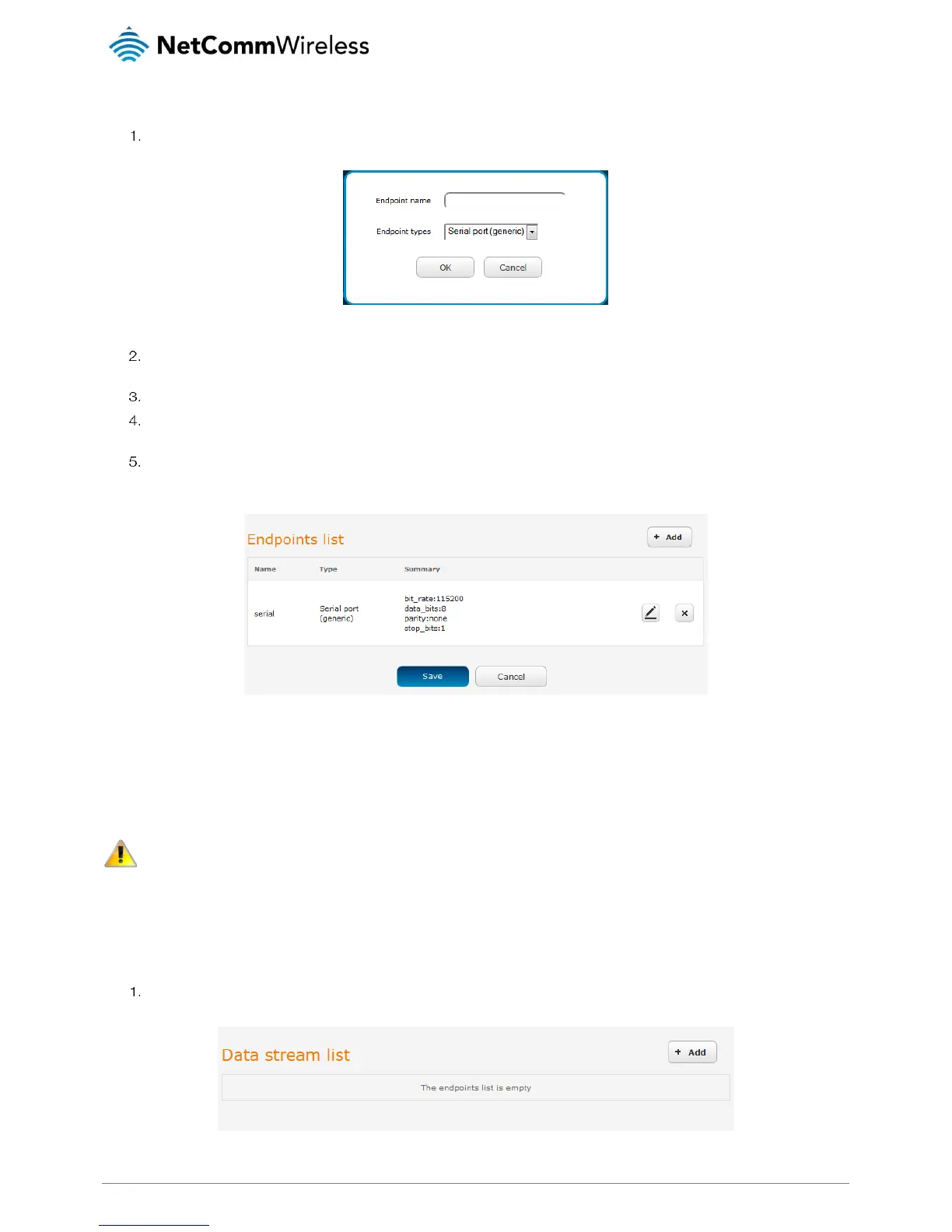

Figure 99 - Creating an endpoint
In the Endpoint name field, type a name for this endpoint. The name can contain alphanumeric characters only i.e. A-Z, a-
z, 0-9.
Use the Endpoint types drop down list to select the type of endpoint to configure.
Click the OK button. The router displays a screen with configuration options for your chosen endpoint type. Enter the
options for your endpoint as required.
Click the Save button. The Endpoints list is displayed with the newly created endpoint listed and a summary of the settings
your configured.
Figure 100 - Endpoints list
Streams
When you have created the required endpoints, you can then proceed to set up a data stream. A data stream sends data from one
endpoint to another, performing any transformation of the data as required. When a stream is added, an underlying process on the
router checks the validity of the stream, checking for conflicts and illogical configurations.
Every stream requires two endpoints, Endpoint A and Endpoint B. In all cases, the flow of data is from Endpoint A to Endpoint B.
To create a new stream:
Click the +Add button on the right side of the page.
Figure 101 - Data stream list
Notes on data stream operation:
When any changes to the Data stream manager configuration are detected, all data streams are stopped and
restarted as per the new configuration.
Multiple Modbus clients cannot connect simultaneously to Modbus serial slaves connected to the router.
