The Edit data stream page is displayed.
In the Data stream name field, enter a name for the Data stream.
Under Endpoint A, use the Endpoint name drop down list to select one of the endpoints you created previously. This
endpoint should be the starting point of the stream. Use the Mode drop down list to select the mode of operation of the
endpoint. The mode can be thought of as a transformation of the data as it leaves this endpoint. For example, if Endpoint
A type is Serial port (generic), the Mode can be set to various Modbus server and client types. This means that upon arrival
at Endpoint A, the data will be transformed into the chosen Modbus format, ready to be sent to Endpoint B.
Under Endpoint B, use the Endpoint name drop down list to select one of the endpoints you created previously. This
endpoint should be the destination of the stream. The screenshot below shows a configuration sending data received on
an attached serial port to a TCP server running on the router. Use the Mode drop down list to select the mode of operation
of the endpoint. The mode can be thought of as a transformation of the data as it arrives at this endpoint.

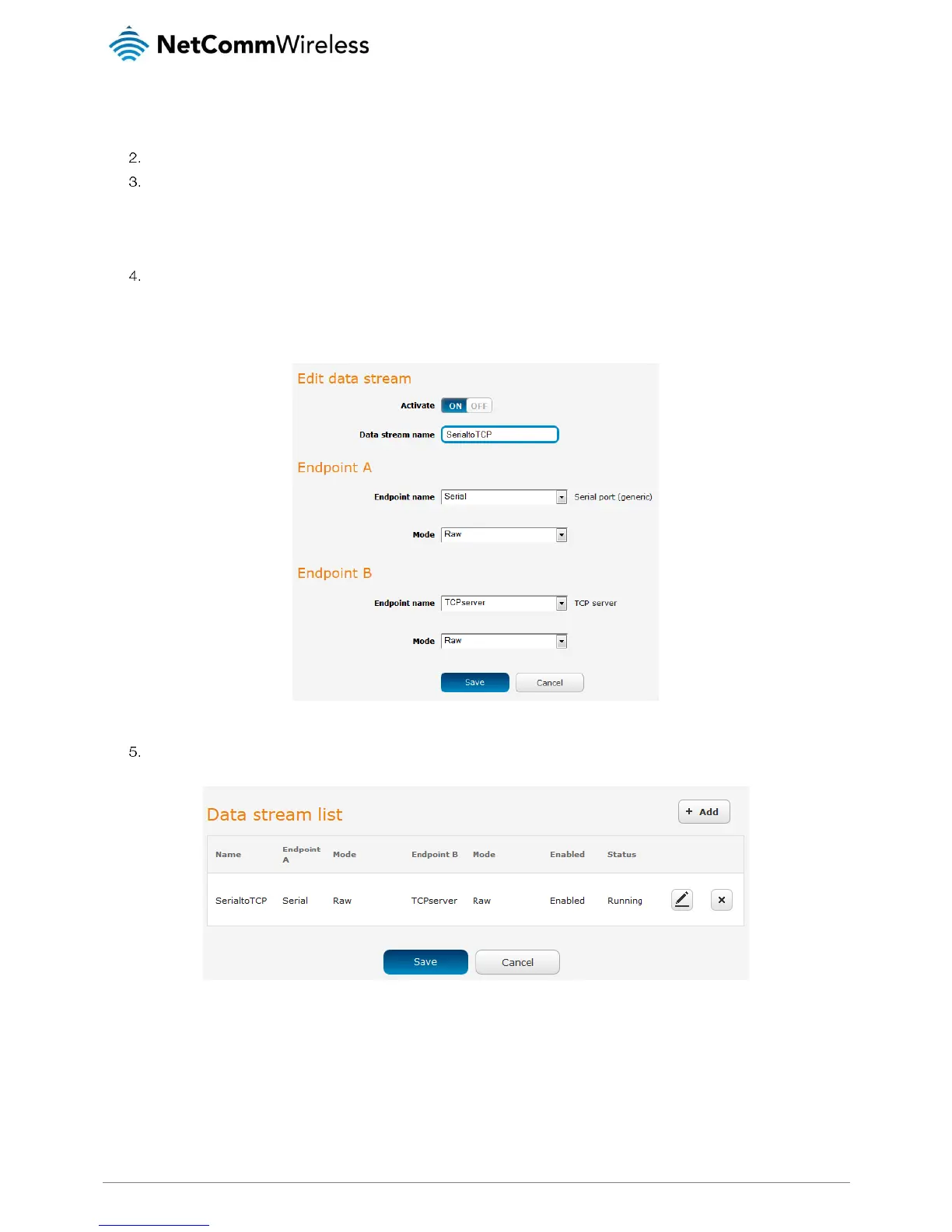

Figure 102 - Edit data stream
Click the Save button. The new stream appears in the Data stream list.
Figure 103 - Data stream list
.
