Click the Connect button to connect immediately, Click the Disconnect button to disconnect
immediately.
Click the Advanced Settings button to set up the advanced option, the page shown in figure 5-7 will
then appear:

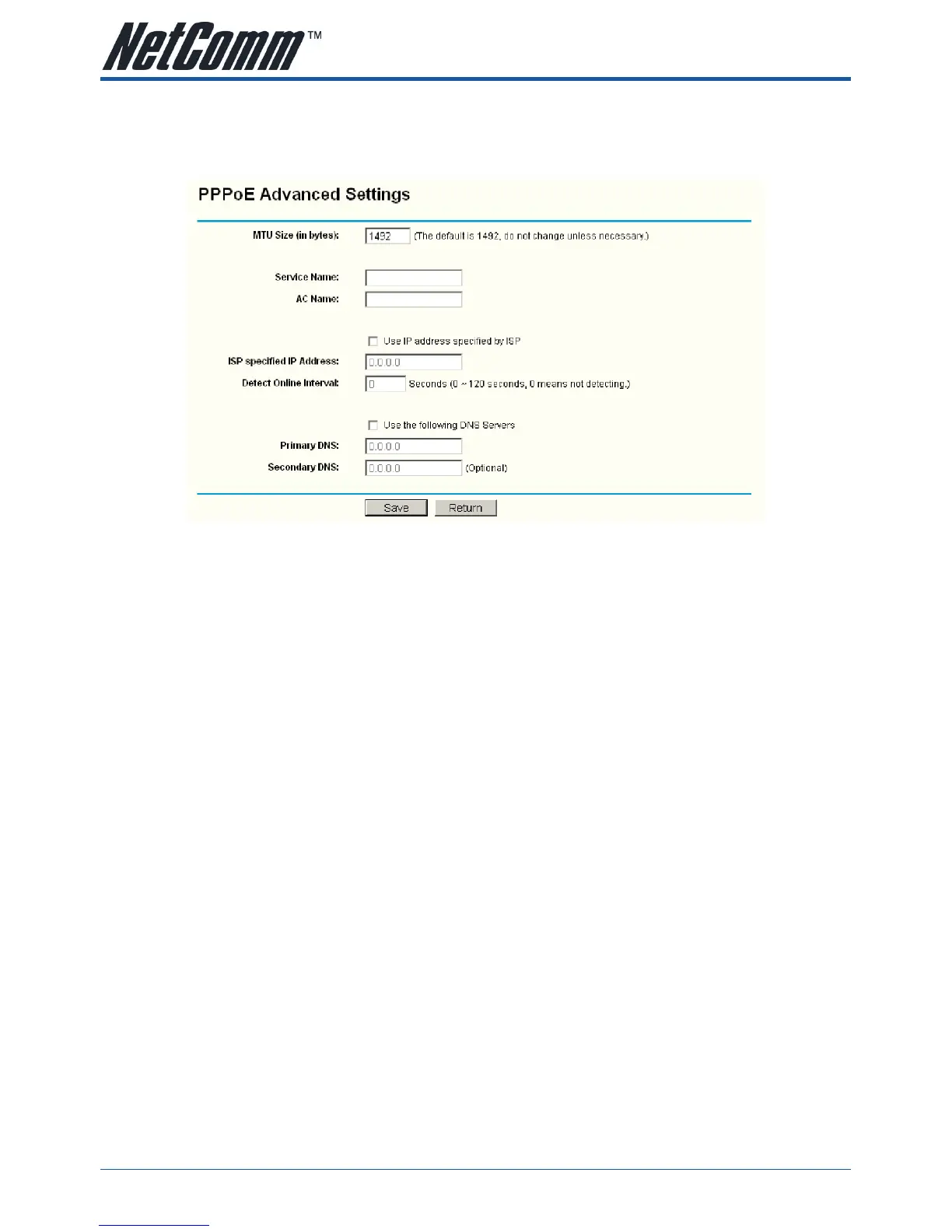

Figure 5-7 PPPoE Advanced Settings
• Packet MTU - The default MTU size is 1492 bytes, which value is usually fine. For some ISPs, you
need modify the MTU. This should not be done unless you are sure it is necessary for your ISP.
• Service Name/AC Name - The service name and AC (Access Concentrator) name, these should not
be configured unless you are sure it is necessary for your ISP.
• ISP Specified IP Address - If you know that your ISP does not automatically transmit your IP address
to the router during login, click “Use the IP Address specified by ISP” check box and enter the IP
Address in dotted-decimal notation, which your ISP provided.
• Detect Online Interval - The default value is 0, you can input the value between 0 and 120. The
router will detect Access Concentrator online at every interval between seconds. If the value is 0, it
means, do not detect.
• DNS IP address - If you know that your ISP does not automatically transmit DNS addresses to the
router during login, click “Use the following DNS servers” checkbox and enter the IP address in
dotted-decimal notation of your ISP’s primary DNS server. If a secondary DNS server address is
available, enter it as well.
Click the Save button to save your settings.
