NetComm Wireless Router NB504 User Manual

YML864 Rev1 NB504 User GuideNB504 User Guide
www.netcomm.com.au 81

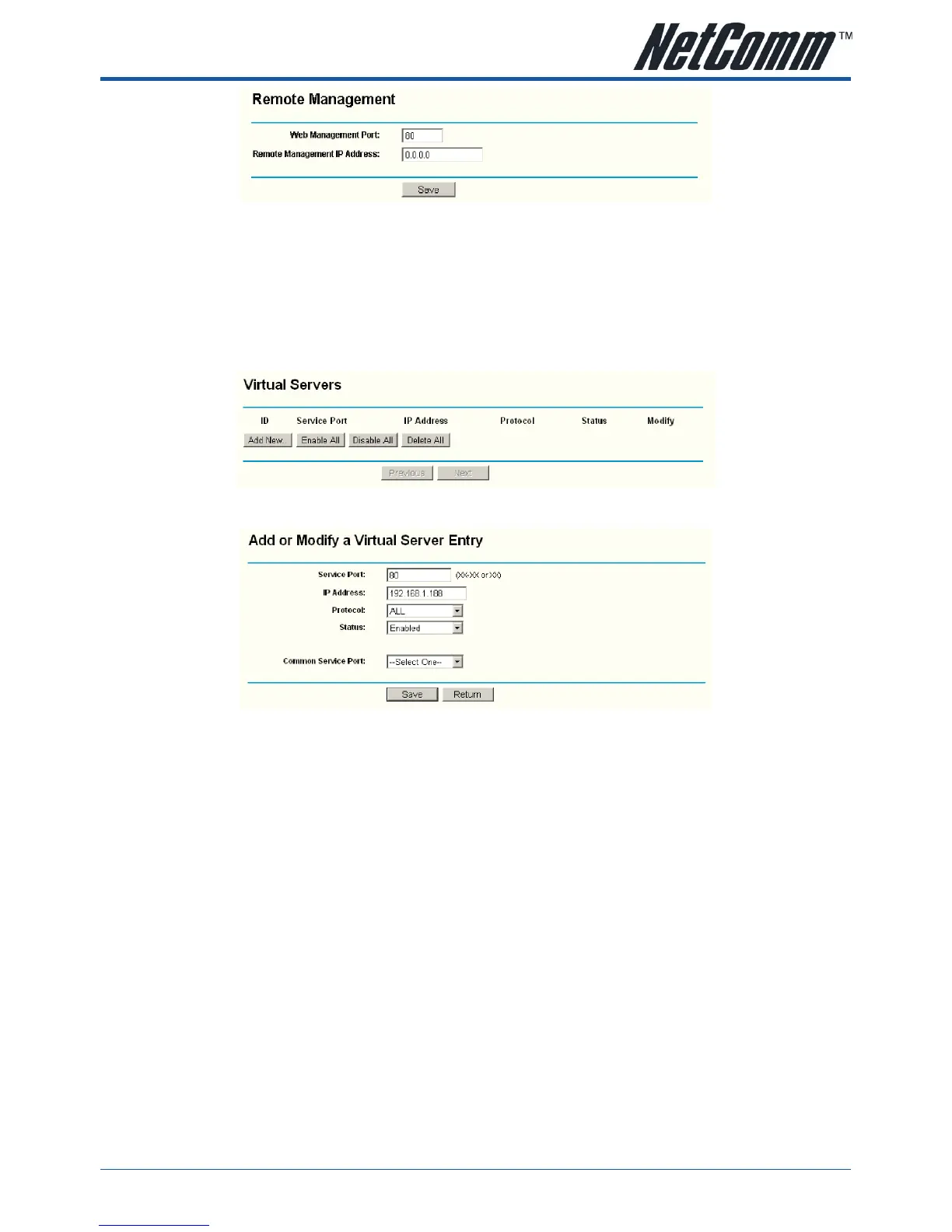

Figure A-7 Remote Management
Note: If the above configuration takes effect, to configure to the router by typing http://192.168.1.1:88 (the router’s LAN IP address:
Web Management Port) in the address field of the web browser.
3) Login to the router, click the “Forwarding” menu on the left of your browser, and click the “Virtual
Servers” submenu. On the “Virtual Server” page, click Add New, then on the “Add or Modify a Virtual
Server” page, enter “80” into the blank behind the “Service Port”, and your IP address behind the IP
Address, assuming 192.168.1.188 for an example, remember to “Enable” and “Save”.
Figure A-8 Virtual Servers
Figure A-9 Add or Modify a Virtual server Entry

NetComm Wireless Router NB504 Specifications

General

Brand	NetComm
Model	Wireless Router NB504
Category	Wireless Router
Language	English
