3. I want to use Netmeeting, what do I need to do?
1) If you start Netmeeting as a sponsor, you don’t need to do anything with the router.
2) If you start as a responsor, you need configure Virtual Server or DMZ Host.
3) How to configure Virtual Server: Login to the router, click the “Forwarding” menu on the left of your browser,
and click “Virtual Servers” submenu. On the “Virtual Server” page, click Add New, then on the “Add or
Modify a Virtual Server” page, enter “1720” into the blank behind the “Service Port”, and your IP address
behind the IP Address, assuming 192.168.1.169 for an example, remember to “Enable” and “Save”.

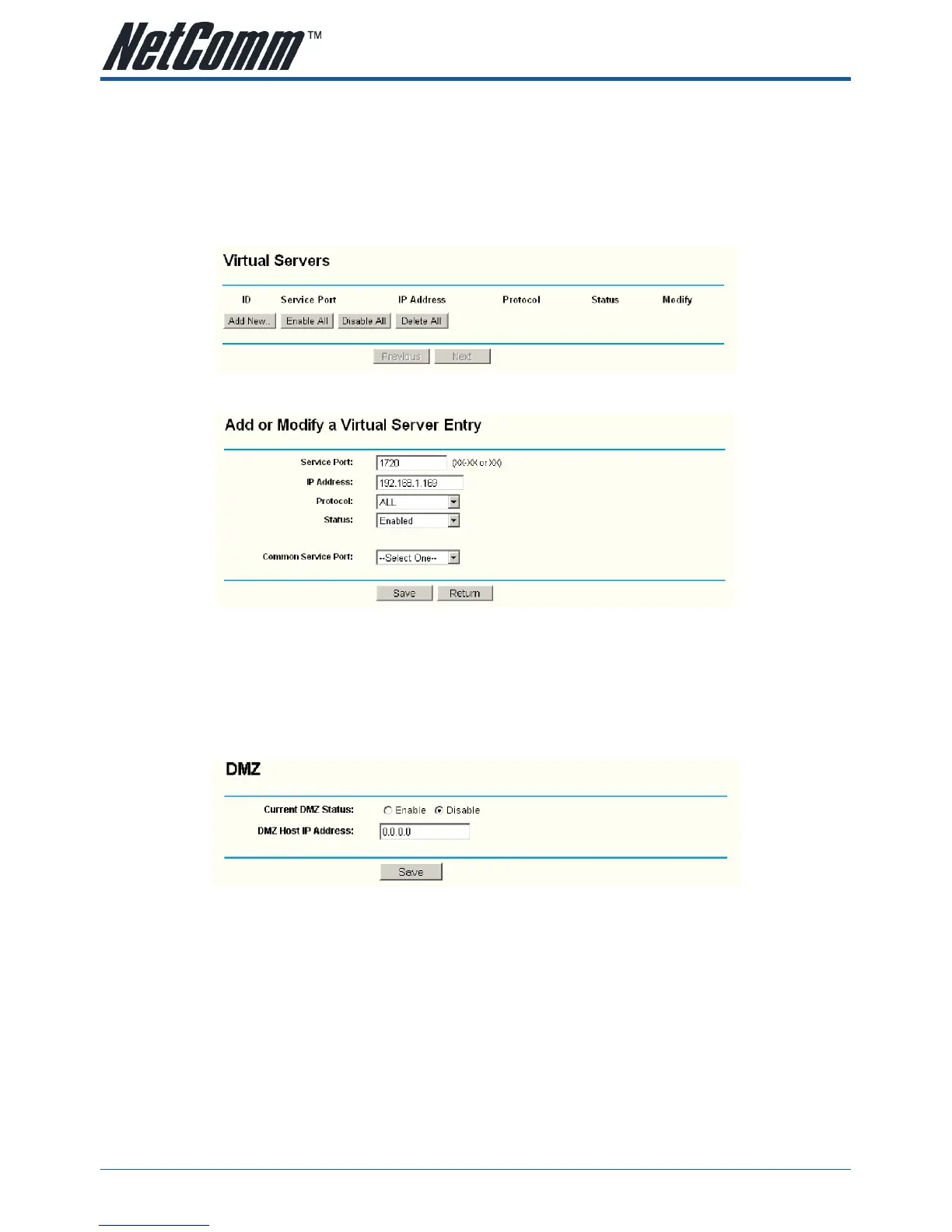

Figure A-4 Virtual Servers
Figure A-5 Add or Modify a Virtual server Entry
Note: Your opposite side should call your WAN IP, which is displayed on the “Status” page.
4) How to enable DMZ Host: Login to the router, click the “Forwarding” menu on the left of your
browser, and click “DMZ” submenu. On the “DMZ” page, click “Enable” radio and type your IP
address into the “DMZ Host IP Address” field, using 192.168.1.169 as an example, remember to
click the “Save” button
Figure A-6 DMZ
4. I want to build a WEB Server on the LAN, what should I do?
1) Because the WEB Server port 80 will interfere with the WEB management port 80 on the router, you
must change the WEB management port number to avoid interference.
2) To change the WEB management port number: Login to the router, click the “Security” menu on
the left of your browser, and click “Remote Management” submenu. On the “Remote Management”
page, type a port number except 80, such as 88, into the “Web Management Port” field. Click “Save”
and reboot the router.
