HyPer 9HV IS User Manual Version 06

NetGain Motors, Inc.

Page 10 of 28

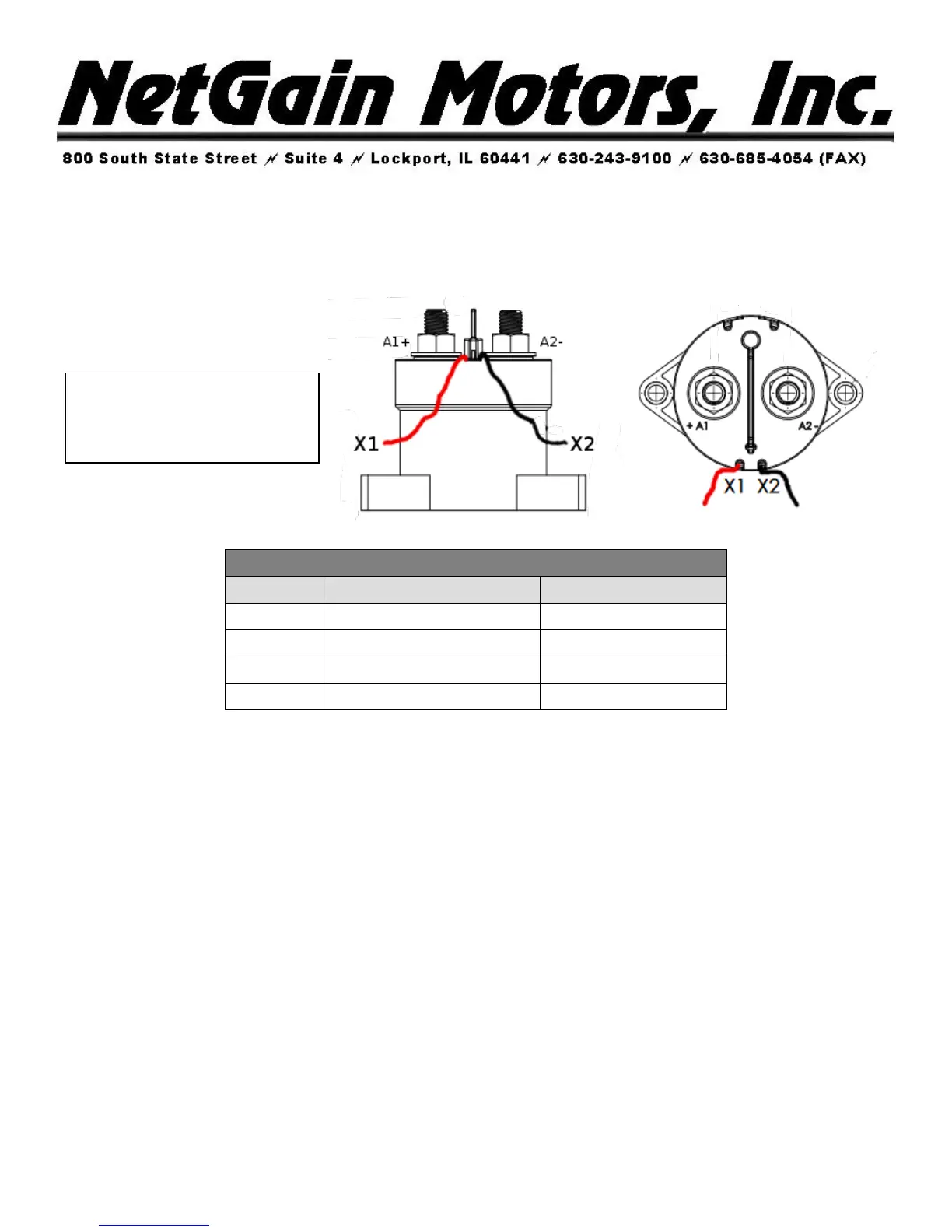

X144 Main Contactor Wiring

12/24V Coil Driver, High Voltage Contacts, and Key Switch In

X144 Main Contactor – External PWM

Terminal

Name

X144 Position

Driver Output 1

K1-26

Coil Return

K1-25

A2-

Controller HV+

B+ Terminal*

A1+

Precharge

B+ Precharge**

* This HV circuit should include proper fuses and disconnect switches.

Included in HyPer 9HV IS:

Gigavac 500+ Amp, 12-800Vdc

- 12/24V External PWM Coil

Part# GV200PA-1
