HyPer 9HV IS User Manual Version 06
NetGain Motors, Inc.
Page 9 of 28

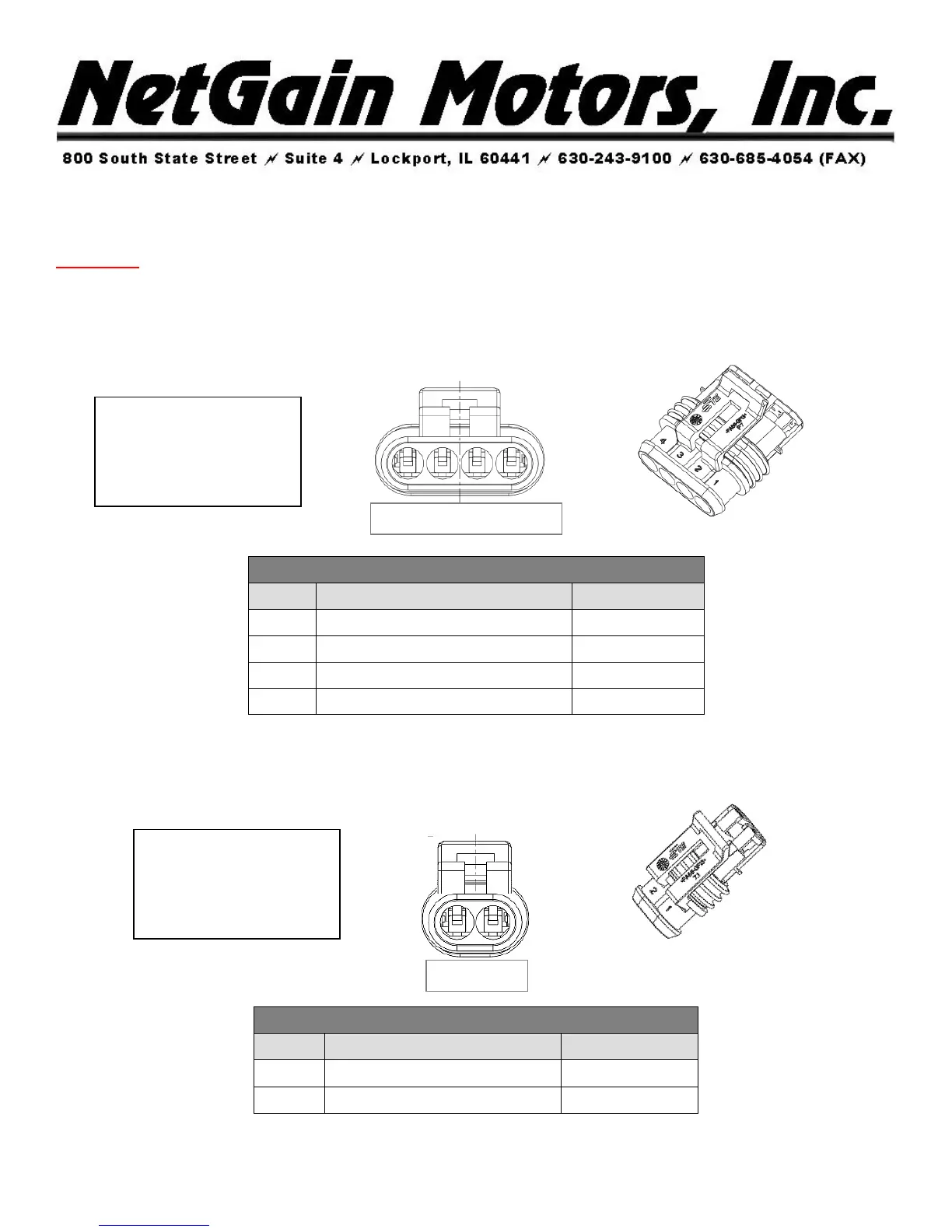

HyPer 9HV Motor Plug Pinout
Important: The Motor Encoder must be mounted securely and restrained from movement. Keep Encoder wires
as far as possible from High Voltage cables and the motor’s field.
Motor Encoder Pin Positions
Motor Encoder - 4 Position Connector
Pin
Name
Position
4
Encoder I/O Ground
K1-9
3
Encoder Cos 1
K1-33
2
Encoder Sin 1
K1-21
1
+5V Out
K1-35
Motor Thermistor Pin Positions
Pin
Name
Position
2
Motor Thermistor
K1-32
1
Analog Ground
K1-12
K1-9 K1-33 K1-21 K1-35
Included in HyPer 9HV IS:
Amp Superseal 4 POS
Plug Part# 282088-1
Pin Part# 282110-1
Seal Part# 281934-2
Included in HyPer 9HV IS:
Amp Superseal 2 POS
Plug Part# 282080-1
Pin Part# 282110-1
Seal Part# 281934-2
K1-12 K1-32
