HyPer 9HV IS User Manual Version 06
NetGain Motors, Inc.
Page 7 of 28

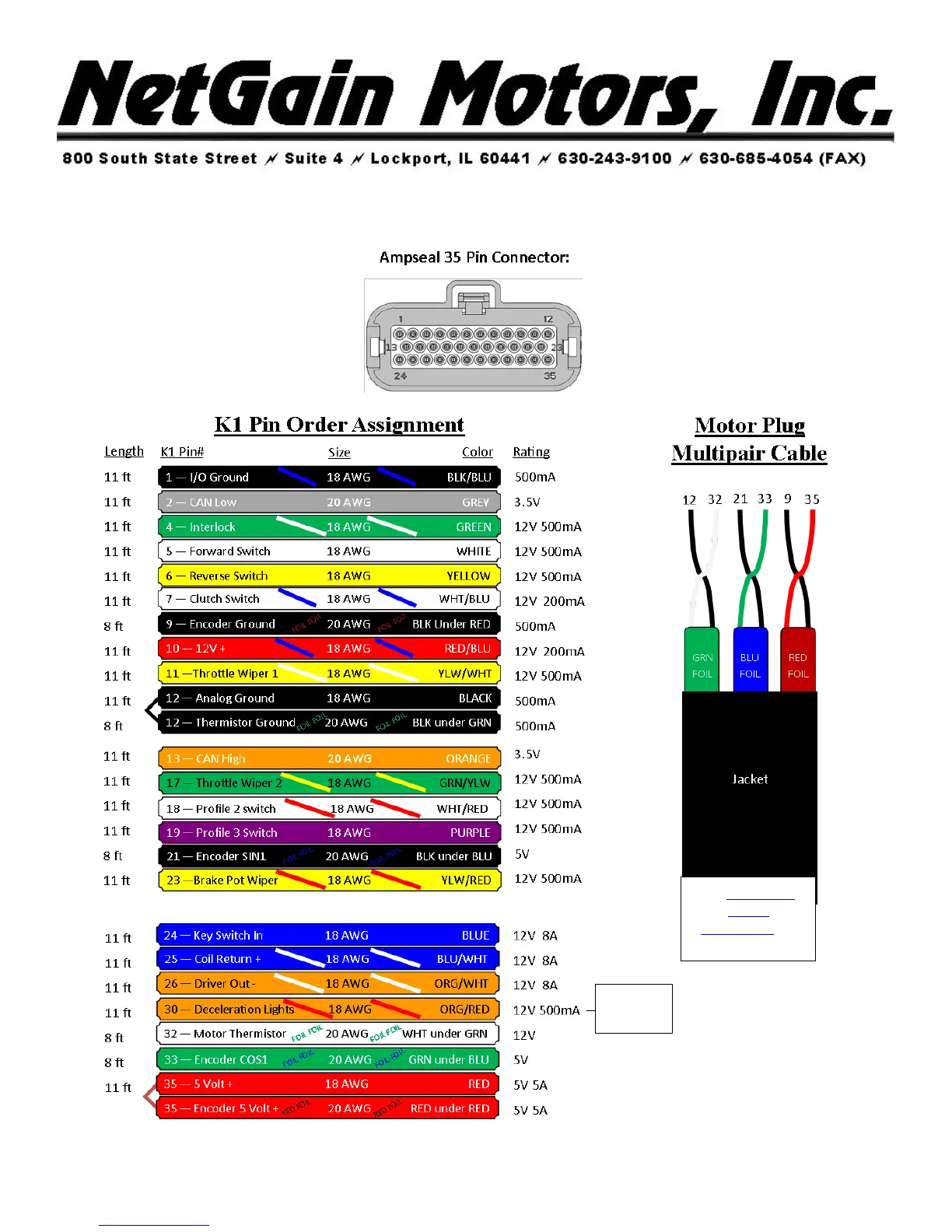

X144 K1 Wire Harness Pinout
Figure 2 - Standard X144 Pin Order Assignment
Must Be
Assigned
See Motor Plug
Wiring
Instructions for
Termination Steps
