HyPer 9HV IS User Manual Version 06
NetGain Motors, Inc.
Page 6 of 28

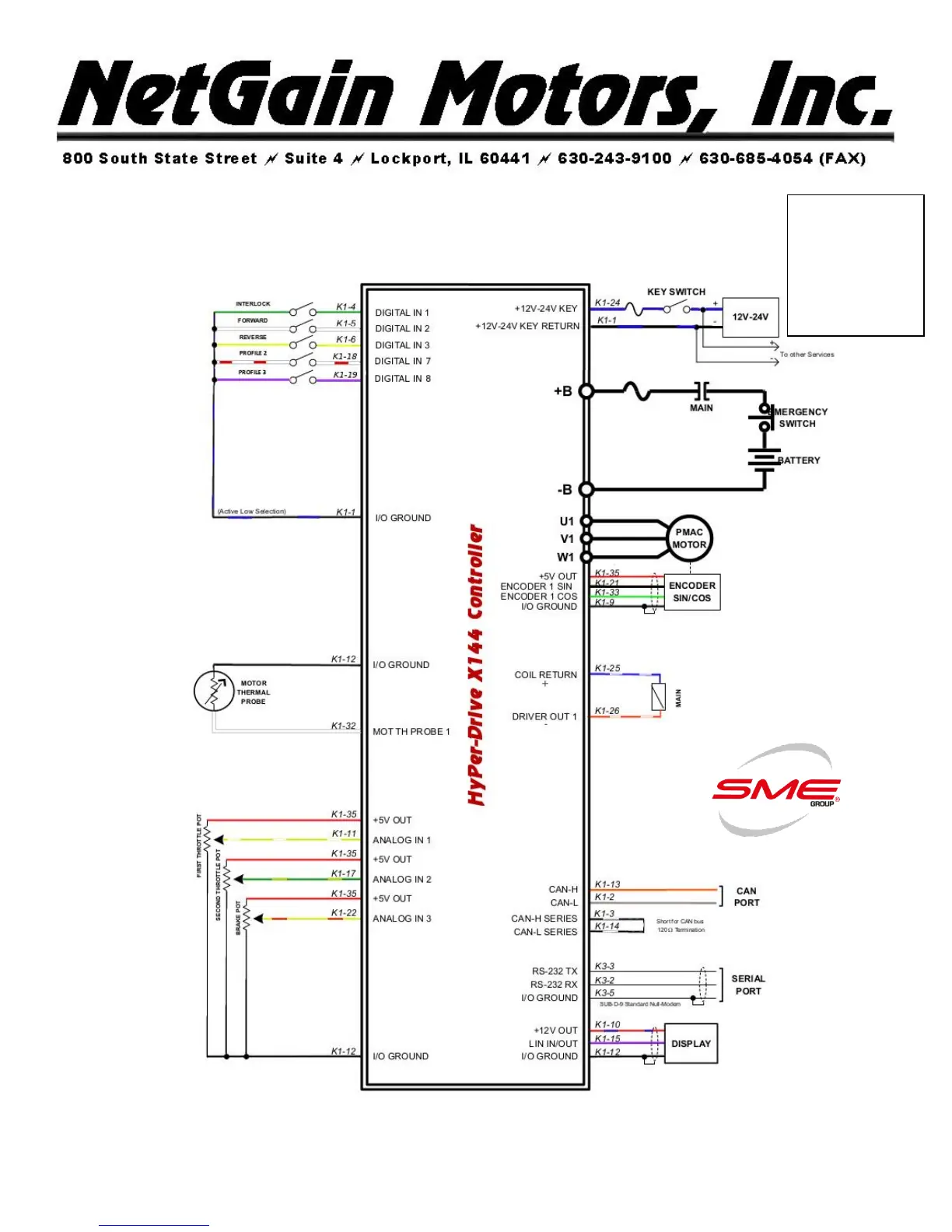

X144 Main Wiring Diagram
X144 ONLY!
12V-24V
Key Switch
For X1 wkring see:
HyPer 9 IS User
Manual
Figure 1 - Standard X144 Wiring Diagram
