Hardware Setup
10
AC1200 Smart WiFi Router with External Antennas
Rear Panel

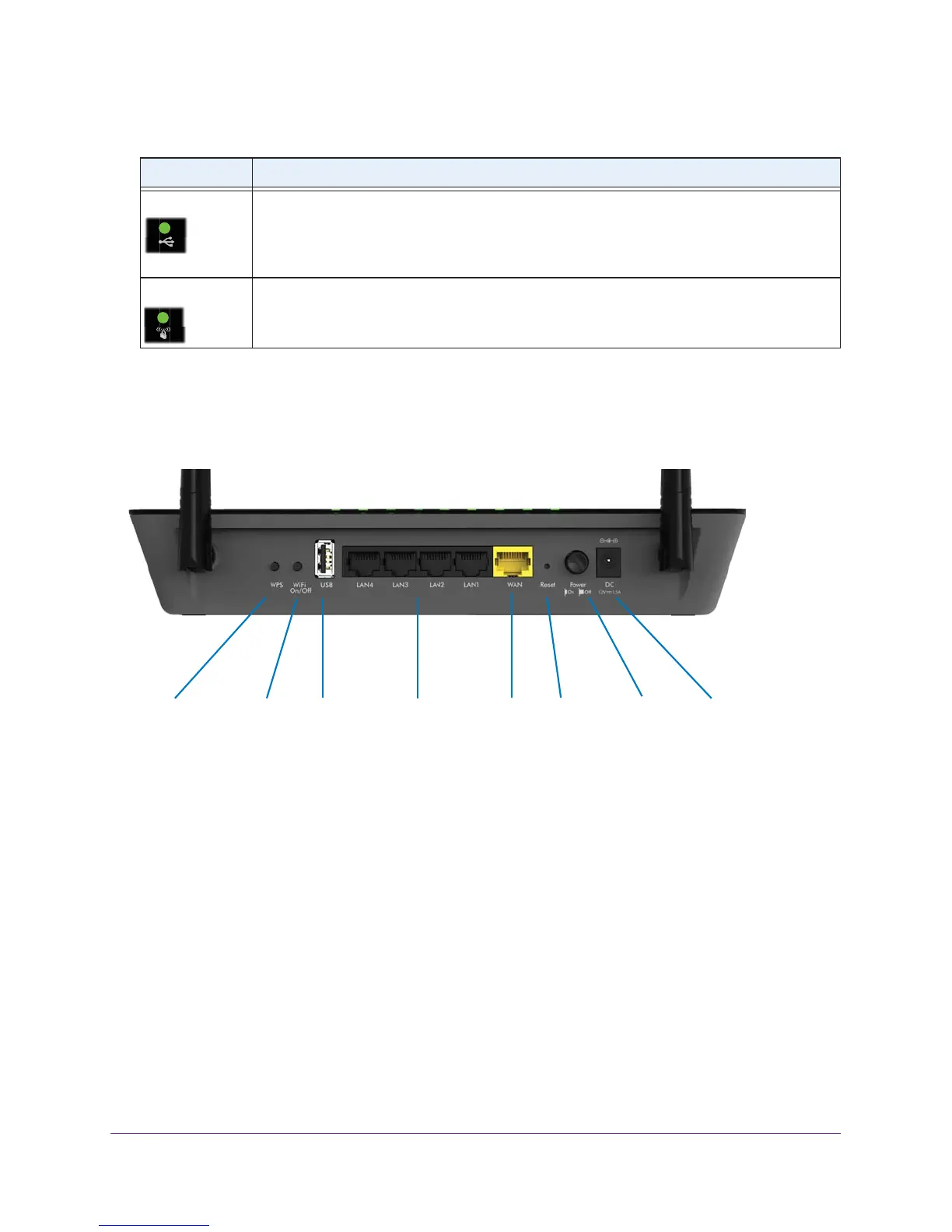

The rear panel connections and buttons are shown in the following figure.
Figure 2. Router rear panel
The WPS button lets you use WPS to join the WiFi network without typing the WiFi password.
See
WiFi Connection on page 14.
Pressing the WiFi On/Off button for two seconds turns the WiFi radios on and off.
Pressing the Reset button restores the factory settings. See Factory Settings on page 157.
USB port • Solid green. A USB device is connected and is ready.
• Blinking. A USB device is plugged in and is trying to connect.
• Off. No USB device is connected, or someone clicked the Safely Remove Hardware
button and it is now safe to remove the attached USB device.
WPS
• Blinking for two minutes. Someone pressed the WPS button on the router to join the
WiFi network. See
WiFi Connection on page 14.
• Solid green. Someone used WPS to connect to the WiFi network.
Table 1. LED descriptions (continued)
LED Description
Ethernet WAN PowerPower
(Internet)
LAN ports 1–4
connector On/Off
WPS
button
WiFi On/Off
button
USB
port
Reset
button
port
