Hardware Setup
9
AC1200 Smart WiFi Router with External Antennas
Unpack Your Router
Your package contains the following items.

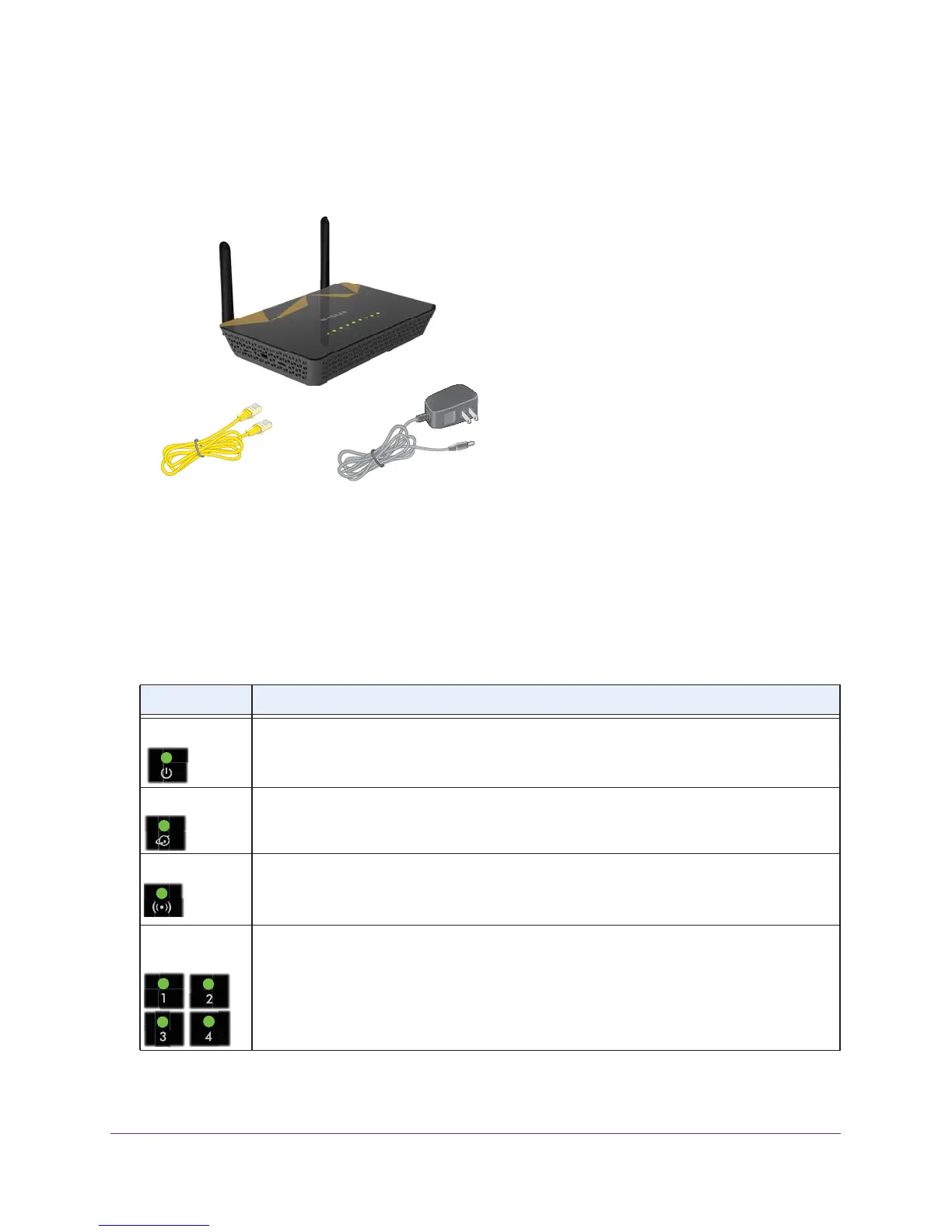

Figure 1. Package contents
LEDs
The status LEDs are located on the top of the router.
Table 1. LED descriptions
LED Description
Power • Solid green. The router is ready.
• Blinking green. The firmware is upgrading or someone pressed the Reset button.
• Off. Power is not supplied to the router.
Internet
• Solid green. The Internet connection is ready.
• Off. No Ethernet cable is connected between the router and the modem.
WiFi • Solid green. The 2.4 GHz WiFi radio is operating.
• Blinking. The router is sending or receiving WiFi traffic.
• Off. The 2.4 GHz WiFi radio is off.
Ethernet LAN
ports 1–4
• Solid. A powered-on device is connected to the Ethernet port.
• Blinking. The port is sending or receiving traffic.
• Off. No device is connected to this Ethernet port.
Router
Ethernet cable
Power adapter
(varies by region)
