NETGEAR AC1200 R6220 User Manual

Hardware Setup
12
AC1200 Smart WiFi Router with External Antennas
Cable Your Router

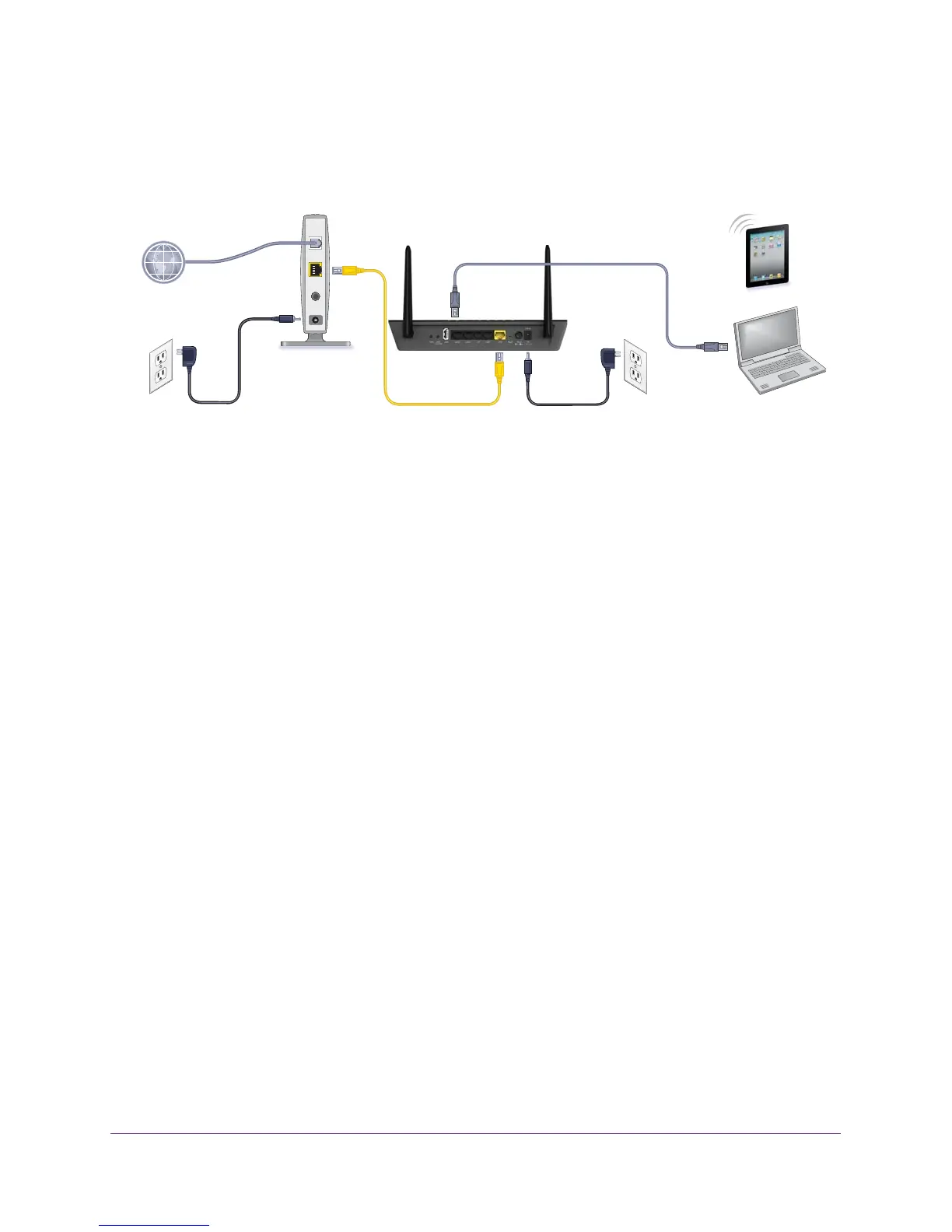

The following image shows how to cable your router:
Figure 3. Router cabling
 To cable your router:
1. Unplug your modem’s power, leaving the modem connected to the wall jack for your
Internet service.
If your modem uses a battery backup, remove the battery.
2. Plug in and turn on your modem.
If your modem uses a battery backup, put the battery back in.
3. Connect your modem to the Internet port of your router with the yellow Ethernet cable that
came with your router.
4. Connect the power adapter to your router and plug the power adapter into an outlet.
5. Press the Power On/Off button on the rear panel of the router.
Modem
Power adapter
Ethernet cable
Ethernet cable
DSL or cable
Router

NETGEAR AC1200 R6220 Specifications

General

WiFi Technology	802.11ac
WiFi Performance	AC1200 (300 + 867 Mbps)
WiFi Range	Medium to large homes
Processor	880 MHz processor
Antennas	2 external antennas
USB Ports	1 x USB 2.0
Memory	128 MB flash and 128 MB RAM
Security	WPA/WPA2
Number of Ethernet Ports	5 x 10/100/1000 Mbps Gigabit Ethernet ports (1 WAN & 4 LAN)
